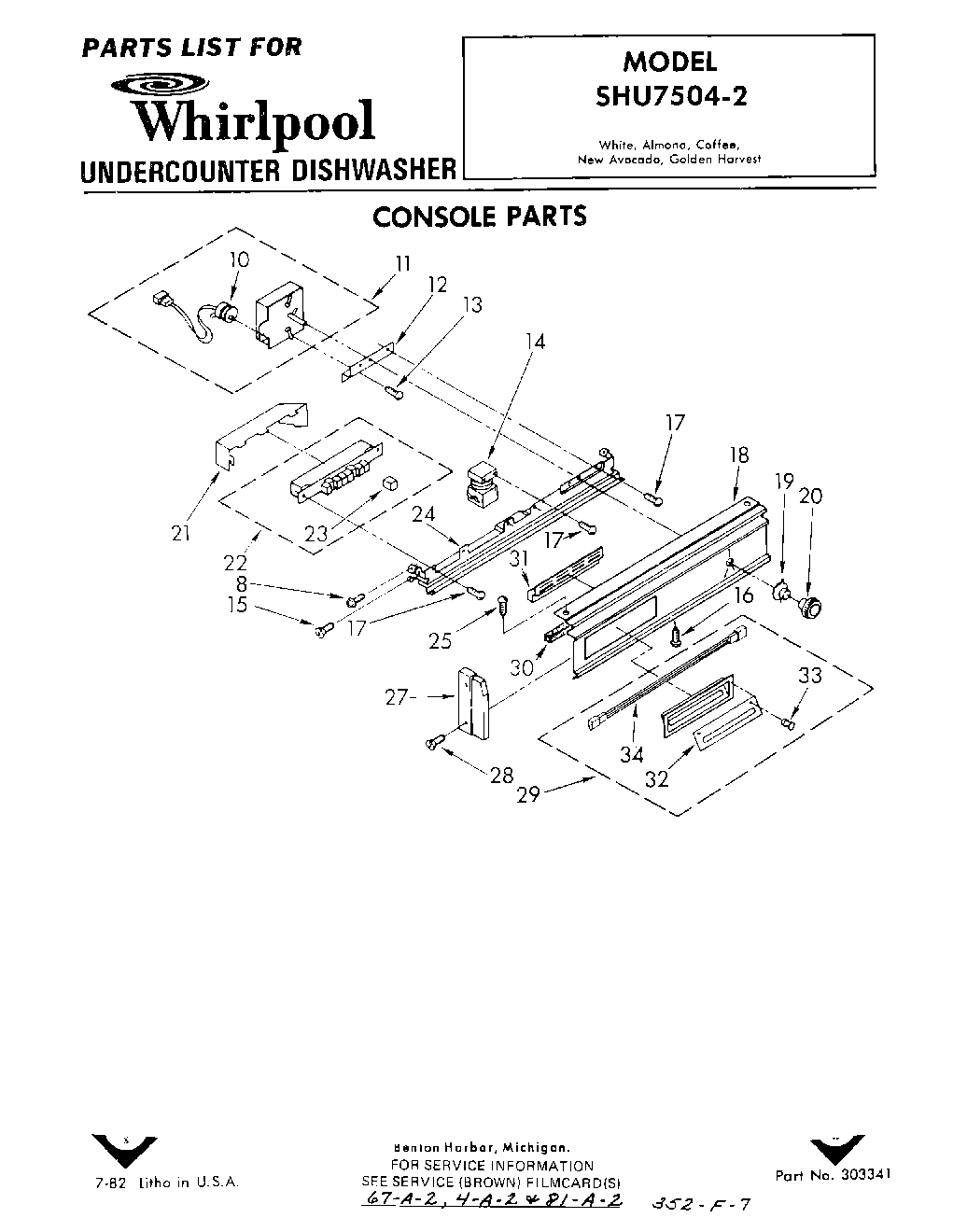

| 8 | Screw, 8-18 x 5/8 |
| 10 | Motor, Timer |
| 11 | Timer, Disconnect |
| 12 | Bracket, Timer |
| 13 | WP356418 Whirlpool Screw |
| 14 | Relay, Start (Alternate) |
| 14 | Relay, Start (Alternate) |
| 14 | Relay, Start (Alternate) |
| 15 | WP488627 Whirlpool Refrigerator Screw |
| 16 | WP487353 Whirlpool Refrigerator Screw |
| 17 | WP489128 Whirlpool Refrigerator Screw |
| 18 | Panel, Escutcheon |
| 19 | Dial, Indicator |
| 20 | Bracket-Igniter |
| 21 | Barrier |
| 22 | Switch, Pushbutton |
| 23 | Button (9) |
| 24 | Bracket, Console |
| 25 | W11693756 Whirlpool Screw Assembly |
| 27 | Cap, End (L.H.) |
| 27 | Clock w/Hr. Timer |
| 28 | W10759522 Whirlpool Screw |
| 29 | Bezel Assembly |
| 30 | Baffle |
| 31 | Grille, Vent |
| 32 | Escutcheon, P.B. |
| 33 | Lens, Red |
| 34 | Light Assembly |
