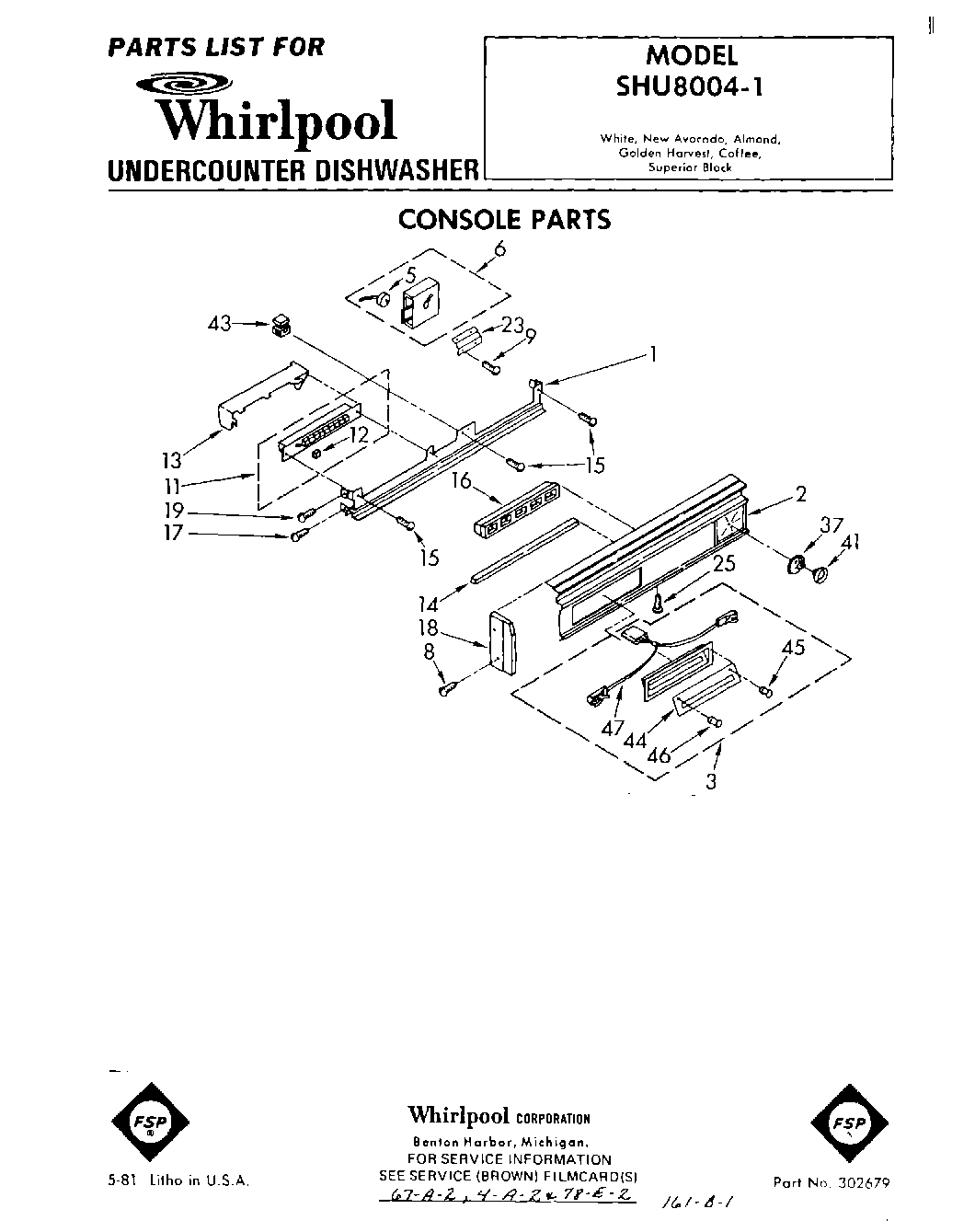

SHU80041 01 – CONSOLE

Products

Position	Product
1	Bracket, Console
2	Panel, Escutcheon
3	Bezel Assembly, Pushbutton
5	Motor, Timer
6	Timer, Disconnect
8	W10759522 Whirlpool Screw
9	WP356418 Whirlpool Screw
11	Switch, Pushbutton
12	Button (9)
13	Barrier
14	Baffle
15	WP489128 Whirlpool Refrigerator Screw
16	Grille, Vent
17	Screw, 8-18 x 5/8
18	Clock w/Hr. Timer
18	Cap, End (L.H.)
19	WP488627 Whirlpool Refrigerator Screw
23	Bracket, Timer
25	WP487353 Whirlpool Refrigerator Screw
37	Dial, Indicator
41	Knob, Timer
43	Relay, Start (Alternate)
43	Relay, Start (Alternate)
43	Relay, Start (Alternate)
44	Escutcheon, Pushbutton Switch
45	Lens, Red
46	Lens, Green
47	Right
