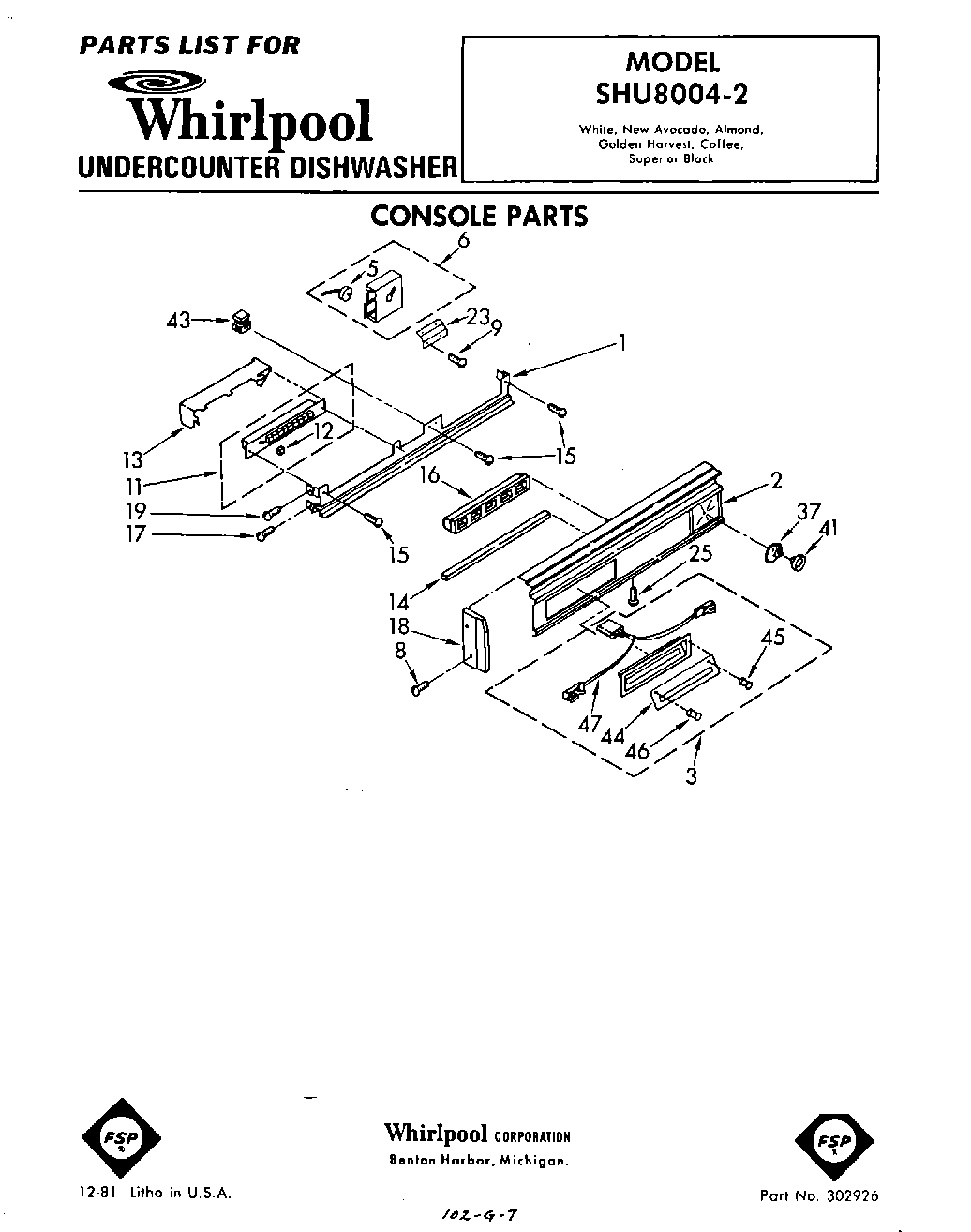

| 1 | Bracket, Console |
| 2 | Panel, Escutcheon |
| 3 | Bezel Assembly, Pushbutton |
| 5 | Motor, Timer |
| 6 | Timer, Disconnect |
| 8 | W10759522 Whirlpool Screw |
| 9 | WP356418 Whirlpool Screw |
| 11 | Switch, Pushbutton |
| 12 | Button (9) |
| 13 | Barrier |
| 14 | Baffle |
| 15 | WP489128 Whirlpool Refrigerator Screw |
| 16 | Grille, Vent |
| 17 | Screw, 8-18 x 5/8 |
| 18 | Clock w/Hr. Timer |
| 18 | Cap, End (L.H.) |
| 19 | WP488627 Whirlpool Refrigerator Screw |
| 23 | Bracket, Timer |
| 25 | WP487353 Whirlpool Refrigerator Screw |
| 37 | Dial, Indicator |
| 41 | Knob, Timer |
| 43 | Relay, Start (Alternate) |
| 43 | Relay, Start (Alternate) |
| 43 | Relay, Start (Alternate) |
| 44 | Escutcheon, Pushbutton Switch |
| 45 | Lens, Red |
| 46 | Lens, Green |
| 47 | Right |
