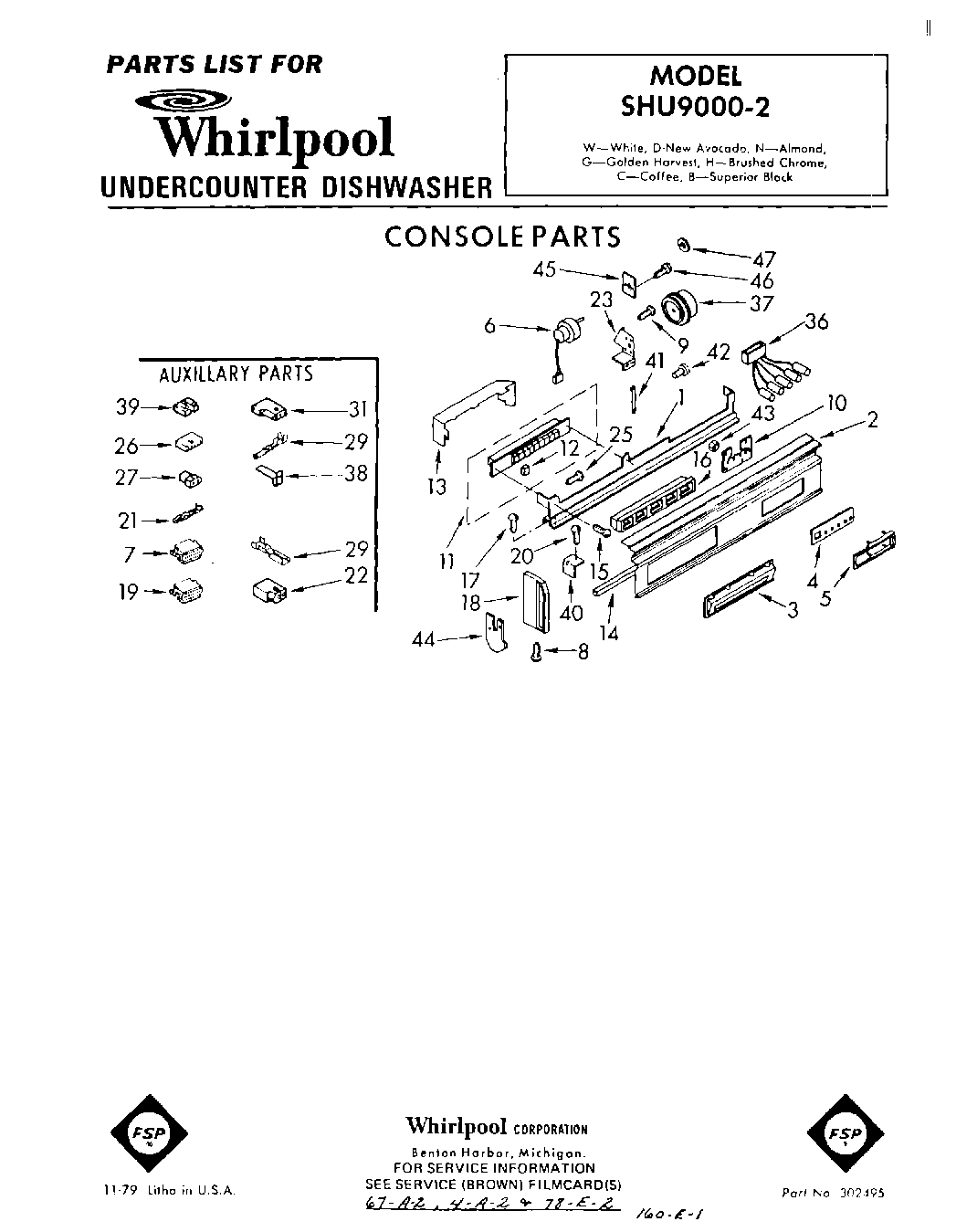

| 1 | Bracket, Console |
| 2 | Panel, Escutcheon |
| 3 | Bezel Assembly, Pushbutton |
| 4 | Lens, Light Indicator |
| 5 | Bezel, Indicator Light |
| 6 | Timer, Delay (Alternate) |
| 7 | Timer, Block Disconnect (White) |
| 8 | Screw, 8-18 x 1 (2) |
| 9 | WP356418 Whirlpool Screw |
| 10 | Socket, Indicator Light |
| 11 | Switch, Pushbutton |
| 12 | Button (9) |
| 13 | Barrier, Pushbutton Switch |
| 14 | Baffle |
| 15 | WP489128 Whirlpool Refrigerator Screw |
| 16 | Grille, Vent |
| 17 | WP487353 Whirlpool Refrigerator Screw |
| 18 | Cap, End (R.H.) |
| 18 | Cap, End (L.H.) |
| 19 | W10876590 Whirlpool Connector |
| 20 | WP488787 Whirlpool Refrigerator Screw |
| 21 | Terminal, Female |
| 22 | Receptacle, Latching (2-Way) (Uses Terminal 94614) |
| 23 | Bracket, Timer Mounting |
| 25 | WP488627 Whirlpool Refrigerator Screw |
| 26 | Receptacle (5-Circuit) |
| 27 | Plug, Terminal (Timer Motor) |
| 29 | WP94614 Whirlpool Terminal |
| 29 | WP596797 Whirlpool Terminal |
| 31 | Connector (Door Switch) |
| 36 | Light Assembly |
| 37 | Dial Assembly, Delay Timer |
| 38 | Retainer, Harness |
| 39 | Terminal Insulator |
| 40 | Bracket, End Cap |
| 41 | Top-Wire Cover Main Back |
| 42 | Bumper, Lint Lid |
| 43 | Nut, Timer (4) |
| 44 | Barrier, End Cap |
| 45 | Barrier, Delay Timer |
| 46 | Screw, |
| 47 | Spacer, Timer |
