SHU90002 02 – TUB , LIT/OPTIONAL

SHU90002 02 – TUB , LIT/OPTIONAL

Written by

in

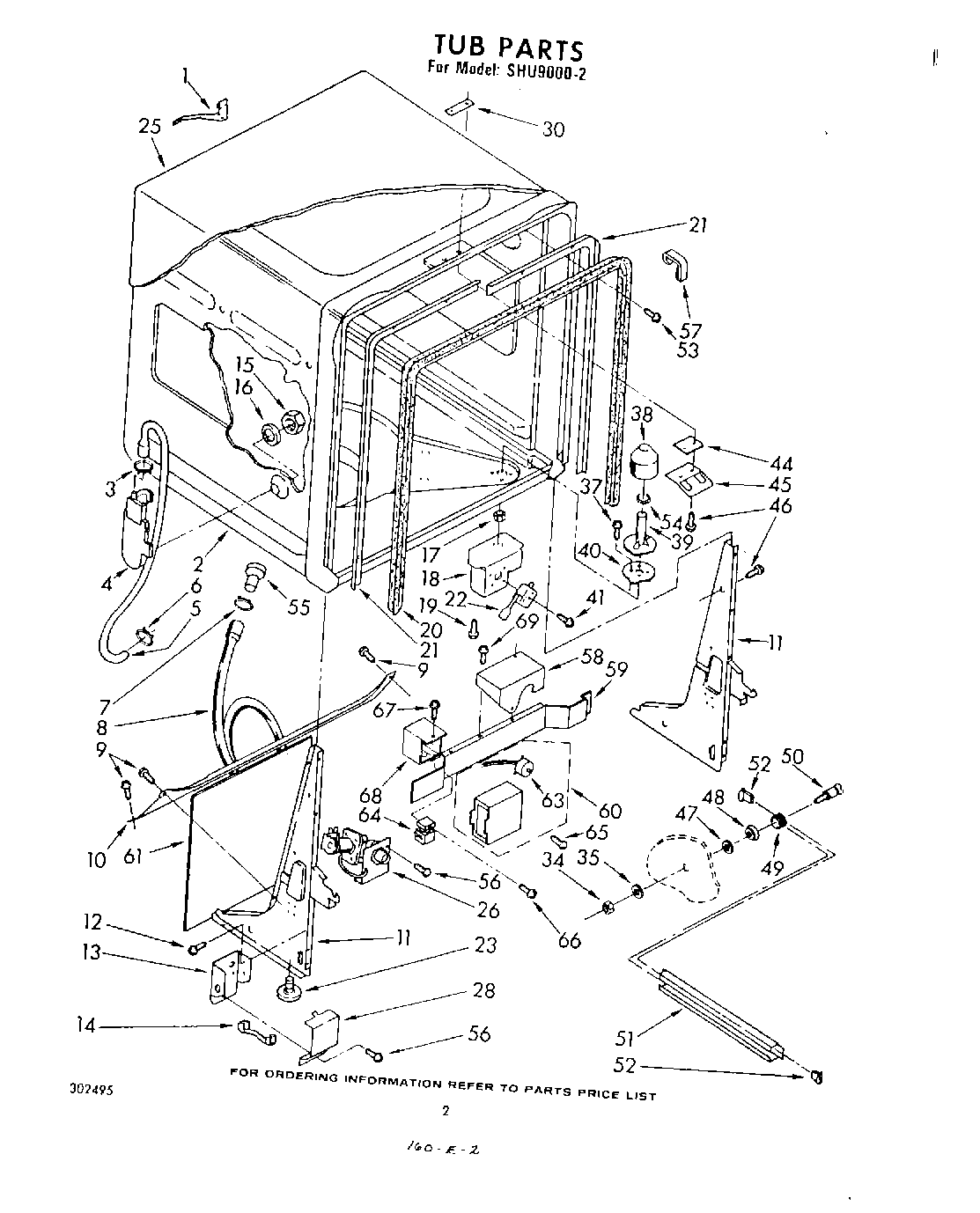

SHU90002 02 – TUB , LIT/OPTIONAL

Products

Position	Product
	WPL ARI130463A
	WPL ARI130462A
	WPL ARI130461A
1	Bracket, Mounting (2)
2	Snap On Panel (White)
3	WPW10144763 Whirlpool Tie Wire
4	Inlet, Water
5	Hose, Inlet
6	WP596669 Whirlpool Hose Clamp
7	WP356138 Whirlpool Hose Clamp
8	675544 Whirlpool Drain Hose
9	WP90767 Whirlpool Screw
10	Brace
11	Leg & Hinge Assembly, (R.H.)
11	Leg & Hinge Assembly, (L.H.)
12	Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1)
13	Box, Terminal
14	Relief, Strain
15	Nut, 7/18-16
16	Gasket
17	Nut
18	Bracket, Overflow Switch
19	Screw, 8 x 1/2 (3)
20	Gasket (Alternate)
20	Gasket (Alternate)
20	Gasket (Alternate)
21	Retainer (R.H.)
21	Retainer (L.H.)
22	Switch, Pressure (Alternate)
22	Retainer-Main Top (2 Required)
23	Screw, Leveling
25	W11086533 Whirlpool Dishwasher Shield
26	Valve, Water Inlet (Alternate)
28	300068 Whirlpool Dishwasher Cover Assembly
30	Nut, Twin Spring
34	Nut, Lock
35	Washer (8)
37	WP488729 Whirlpool Refrigerator Door Screw
38	Float
39	Standpipe, Overflow
40	Gasket, Overflow
41	Screw, 4-40 x 3/4
44	Shim
45	Strike
46	WP308685 Whirlpool Microwave Screw
47	Washer (8)
48	Washer, Cup
49	Roller, Rack Track
50	Screw, Shoulder (8)
51	Track (2)
52	Endcap, Front or Rear (2)
53	Screw, 8-18 x 5/8 (10)
54	Gasket, Standpipe (2)
55	WPL 301656
57	Clip, Gasket (2)
58	Bracket, Timer
59	Mounting Bracket, Timer
60	Timer, 60 Hz.
61	Shield, Timer
63	Motor, Timer (Clock Type)
63	Motor, Timer (Rapid Advance)
64	Relay, Start
65	WP356418 Whirlpool Screw
66	WPL 301588
67	Rivet, Serial Nameplate
68	WPL 302332
69	WPL 799351
69	350942 Whirlpool Spray Paint
69	Kit, Epoxy Patch (White)
69	Enamel, New Avocado (1 Qt. Uncut)
69	72017 Whirlpool Appliance Touch-Up Paint White
69	350956 Whirlpool Spray Assembly
69	350930 Whirlpool White Spray Paint
69	WPL 302452
69	WPL 302469
69	WPL 302495
69	799344 Whirlpool Refrigerator Paint
69	WP72107 Whirlpool Touchup
69	Enamel, Coffee (1 Qt. Uncut)
69	Paint, Spray 13 Oz. (Avocado)
69	paint, spray 13 oz. (coffee)
69	Paint, Touch-Up 1/2 Oz. (Coffee)
69	72109 Whirlpool Dacor Avocado Touch-Up Paint
69	285006 Whirlpool Spray
69	WP488787 Whirlpool Refrigerator Screw
69	Golden Harvest (Uncut)
69	Golden Harvest
69	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
69	Leveler (Thinner) (2oz.)
69	WPL 302080
69	Almond (Uncut)
