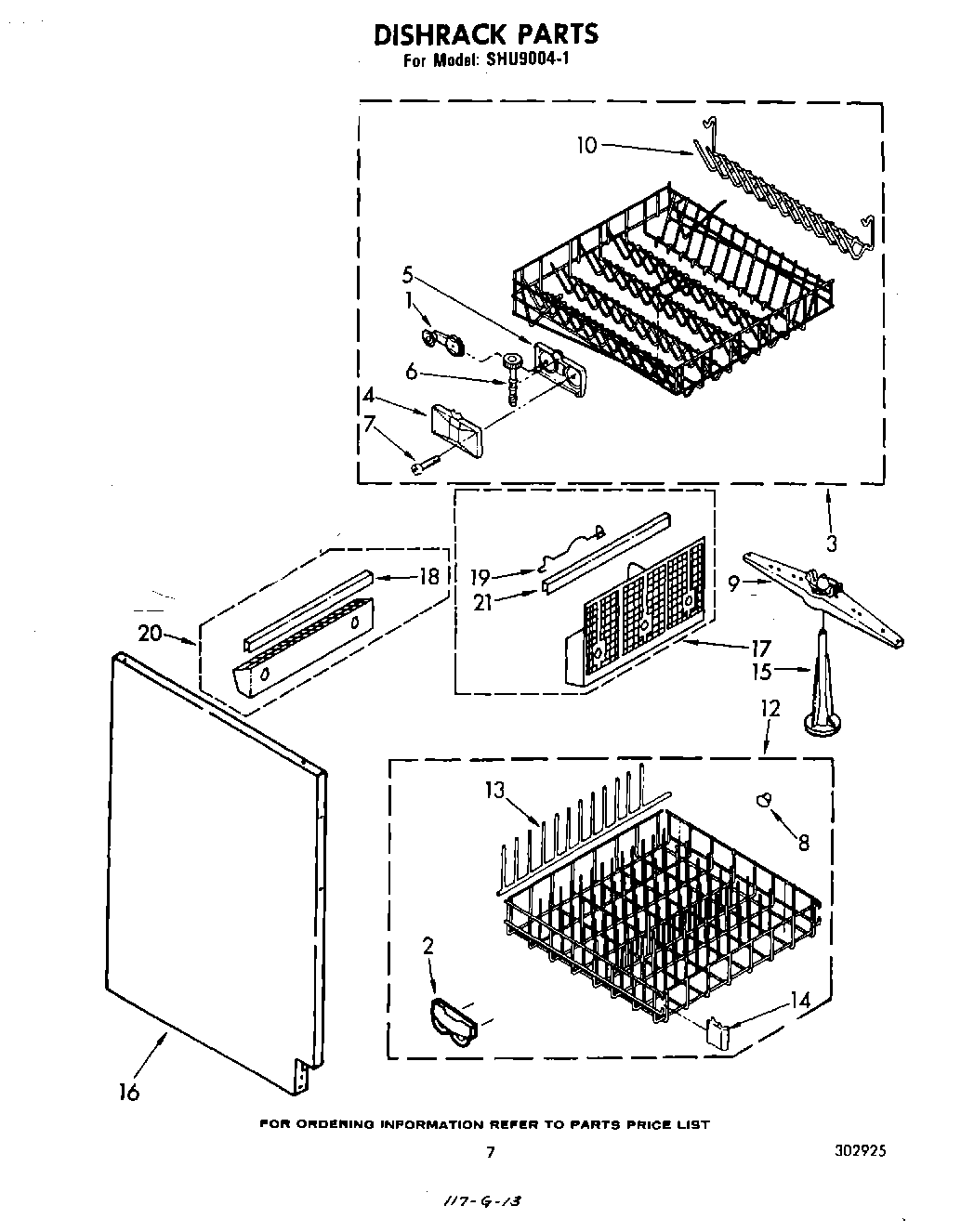

SHU90041 05 – DISKRACK

SHU90041 05 – DISKRACK

Written by

in

SHU90041 05 – DISKRACK

Products

PositionProduct
1Wheel & Gear Assembly (4)
24317933 Whirlpool Lower Rack Wheels
3W11169039 Whirlpool Dishwasher Dish Rack
4Cover, Housing (2)
5Housing, Gear (2)
6Worm, Dishrack (2)
7WP9741232 Whirlpool Dishwasher Screw
8SCREW 8A
9WP304204 Whirlpool Dishwasher Spray Arm
10Shelf, Cup
10Shelf, Cup (Left Side)
12W10311986 Whirlpool Dishwasher Lower Rack
13Adapter, Rack
14Bumper (2)
15Tower
16Panel, R.S.
17Silverware Basket Assembly
19Handle, Basket
20Utensil Basket Assembly
21Trim, Basket
