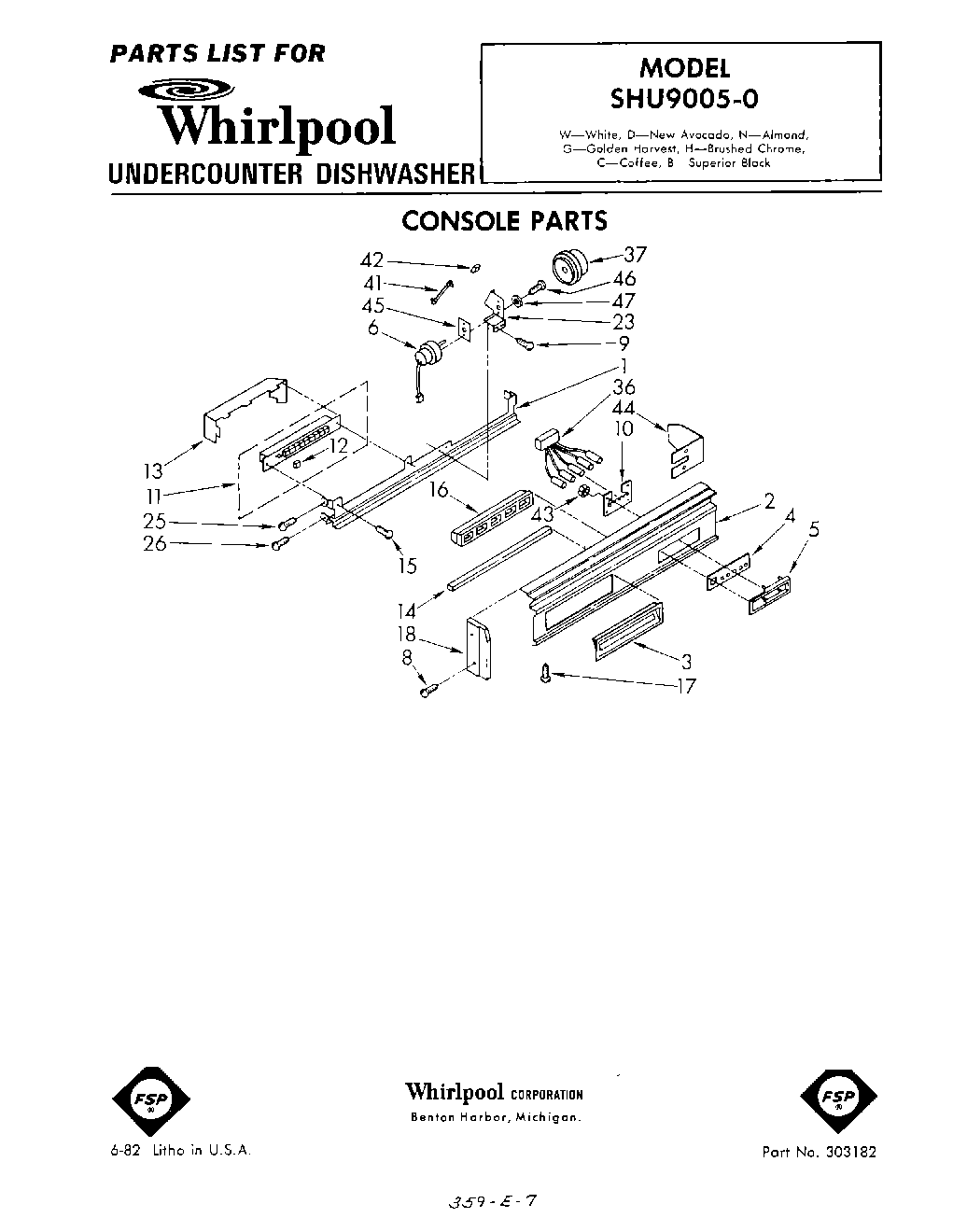

| 1 | Bracket, Console |
| 2 | Panel, Escutcheon |
| 3 | Bezel Assembly, Pushbutton |
| 4 | Lens, Light Indicator |
| 5 | Bezel, Indicator Light |
| 6 | Timer, Delay (Alternate) |
| 6 | Timer, Delay (Alternate) |
| 8 | W10759522 Whirlpool Screw |
| 10 | Socket, Indicator Light |
| 11 | Switch, Pushbutton |
| 12 | Button (9) |
| 13 | Barrier |
| 14 | Baffle |
| 15 | WP489128 Whirlpool Refrigerator Screw |
| 16 | Grille, Vent |
| 17 | WP487353 Whirlpool Refrigerator Screw |
| 18 | Cap, End (L.H.) |
| 18 | Clock w/Hr. Timer |
| 23 | Bracket, Timer Mounting |
| 25 | WP488627 Whirlpool Refrigerator Screw |
| 26 | W11693756 Whirlpool Screw Assembly |
| 36 | Light Assembly |
| 37 | Dial Assembly, Delay Timer |
| 41 | Top-Wire Cover Main Back |
| 42 | Pad, Rubber |
| 43 | Nut, Timer (4) |
| 44 | Barrier, End Cap |
| 45 | Barrier, Delay Timer |
| 46 | Screw, |
| 47 | Spacer, Timer |
