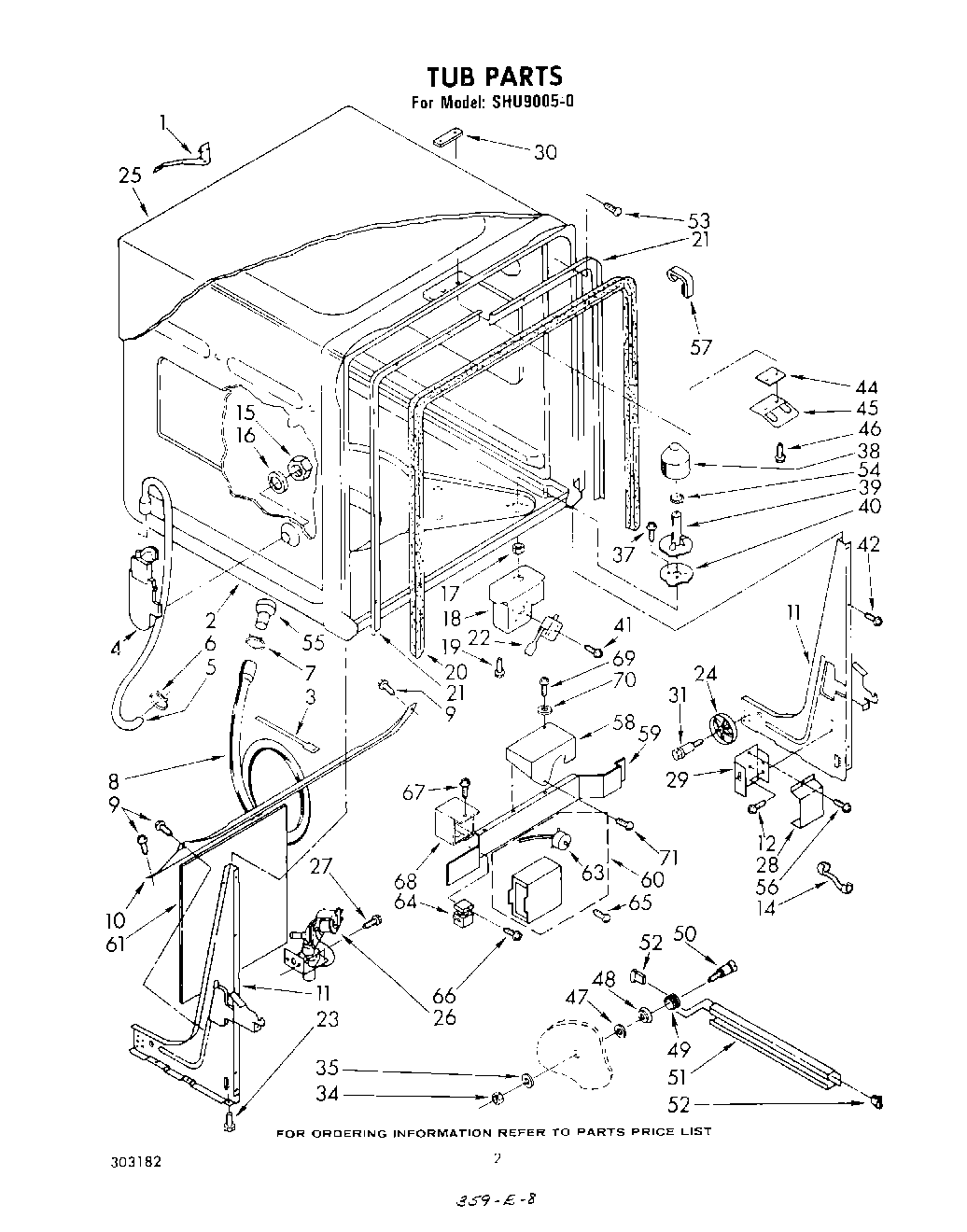

SHU90050 02 – TUB , LITERATURE AND OPTIONAL

SHU90050 02 – TUB , LITERATURE AND OPTIONAL

Written by

in

SHU90050 02 – TUB , LITERATURE AND OPTIONAL

Products

Position	Product
	Golden Harvest (Uncut)
	Enamel, New Avocado (1 Qt. Uncut)
	Enamel, Coffee (1 Qt. Uncut)
	Almond (Uncut)
	799344 Whirlpool Refrigerator Paint
1	Bracket, Mounting (2)
2	Tub Assembly
3	WPW10144763 Whirlpool Tie Wire
4	Inlet, Water
5	Hose, Inlet
6	WP596669 Whirlpool Hose Clamp
7	WP356138 Whirlpool Hose Clamp
8	675544 Whirlpool Drain Hose
10	Brace
11	Leg & Hinge Assembly, R.H.
11	Leg & Hinge Assembly, L.H.
12	Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1)
14	Relief, Strain
15	Nut, 7/18-16
16	Gasket
17	Nut
18	Bracket, Overflow Switch
19	Screw, 8 x 1/2 (3)
20	Gasket (Alternate)
20	Gasket (Alternate)
21	Retainer (L.H.)
21	Retainer (R.H.)
22	Switch, Pressure (Alternate)
22	Retainer-Main Top (2 Required)
23	8193716 Whirlpool Leveling Leg
24	WP302819 Whirlpool Dishwasher Wheel
25	W11086533 Whirlpool Dishwasher Shield
26	Valve, Water Inlet (Alternate)
28	300068 Whirlpool Dishwasher Cover Assembly
29	Box, Terminal
30	Nut, Twin Spring
31	Screw, Shoulder
34	Nut, Lock
35	Washer (8)
37	WP488729 Whirlpool Refrigerator Door Screw
38	Float
39	Standpipe, Overflow
40	Gasket, Overflow
41	Screw, 4-40 x 3/4
44	Shim
45	Strike
46	WP308685 Whirlpool Microwave Screw
47	Washer (8)
48	Washer, Cup
49	Roller, Rack Track
50	Screw, Shoulder (8)
51	Track (2)
52	Endcap, Front or Rear (2)
53	Screw, 8-18 x 5/8 (10)
54	Gasket, Standpipe (2)
55	WPL 301656
57	Clip, Gasket (2)
58	Bracket, Timer
59	Mounting Bracket, Timer
60	Timer, 60 Hz.
61	Shield, Timer
63	Motor, Timer (Clock Type)
63	Motor, Timer (Rapid Advance)
64	Relay, Start
65	WP356418 Whirlpool Screw
66	WPL 301588
67	Rivet, Serial Nameplate
68	WPL 302332
69	WP488787 Whirlpool Refrigerator Screw
70	Washer (2)
71	WPL 302971
71	WPL 303023
71	WPL 303182
71	Tag, Energy Fact
71	350942 Whirlpool Spray Paint
71	350956 Whirlpool Spray Assembly
71	72017 Whirlpool Appliance Touch-Up Paint White
71	WP72107 Whirlpool Touchup
71	WP90767 Whirlpool Screw
71	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
71	Golden Harvest
71	285006 Whirlpool Spray
71	72109 Whirlpool Dacor Avocado Touch-Up Paint
71	Paint, Touch-Up 1/2 Oz. (Coffee)
71	paint, spray 13 oz. (coffee)
71	Paint, Spray 13 Oz. (Avocado)
71	Leveler (Thinner) (2oz.)
71	WPL 799351
71	Kit, Epoxy Patch (White)
71	350930 Whirlpool White Spray Paint
