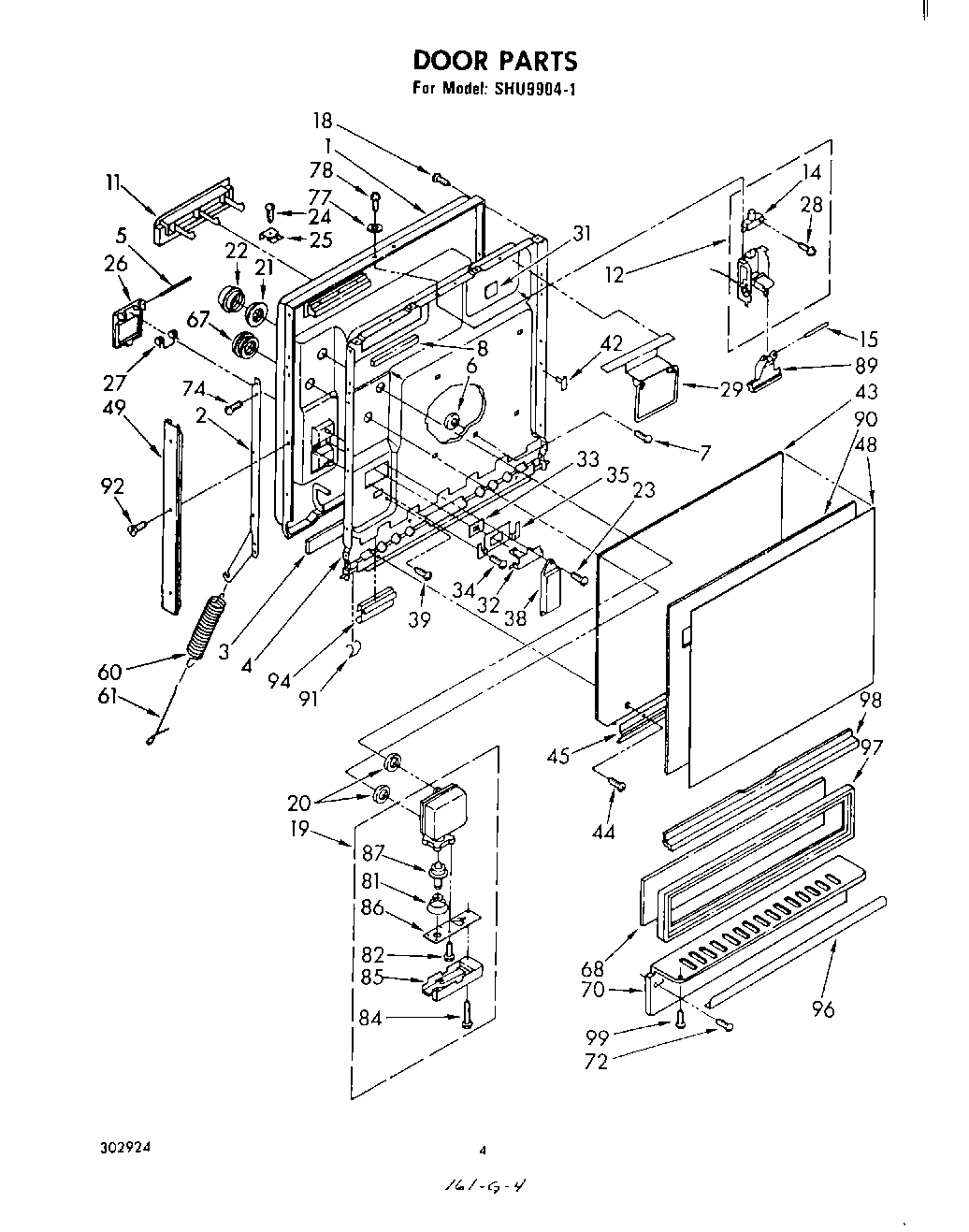

SHU99041 03 – DOOR

SHU99041 03 – DOOR

Written by

in

SHU99041 03 – DOOR

Products

PositionProduct
1Door, Inner (Includes Illus. 4)
2Support, Door (L.H.)
2Support, Door (R.H.)
3Gasket, Door
4Liner, Door
54387043 Whirlpool Door Latch Kit
6Button, Retainer (3)
7Screw, 8-18 x 3/8 (3)
8Baffle
11Screen, Vent
12Latch Assembly
14Switch, Interlock
15Pin, Pivot
18WP488729 Whirlpool Refrigerator Door Screw
19Dispenser, Wetting Agent
20Washer
21Nut, 1-14
22Indicator, Leveler
25Bracket, Mounting (2)
27WP8066018 Whirlpool Spring Assembly
28Screw, 6-32 x 1
29Gravity Latch Assembly
31Pad, Rubber
32Lever, Catch
33Seal, Lever
35Retainer
38Actuator
39Screw, 8 x 1/2 (3)
42Clip, Retainer
43Barrier, Panel
44W11693756 Whirlpool Screw Assembly
45Edging, Panel
48Panel, Front
49Trim, Door (2)
60674744 Whirlpool Dishwasher Door Spring 3 3/4"
61WP716401 Whirlpool Dishwasher Retainer
67Cap, Drip
68Panel, Access
70Plate, Toe
72WP302868 Whirlpool Screw
74WP488627 Whirlpool Refrigerator Screw
77Washer (2)
78WP90767 Whirlpool Screw
81WPL 718592
82WP98165 Whirlpool Screw
84WP488163 Whirlpool Refrigerator Screw
85Acutator Assembly
86Plate
87Diaphrag
89Lever, Release
90Spacer, Panel
91Clip, Wire
92302251 Whirlpool Dishwasher Screw
94Retainer, Clip
96WPL 301815
97WPL 301814
98WPL 301816
99WP965173 Whirlpool Dishwasher Screw
