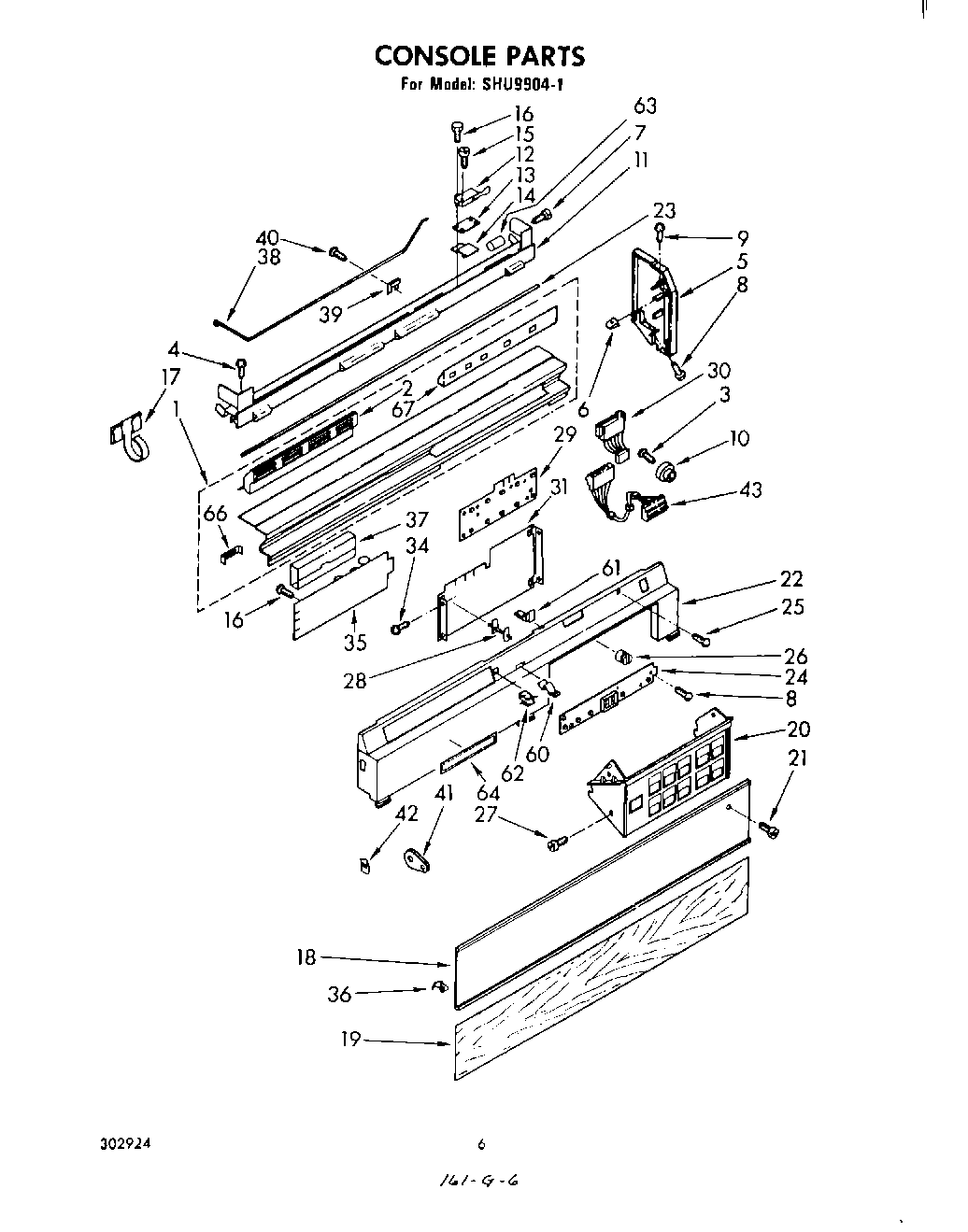

SHU99041 04 – CONSOLE

Products

Position	Product
1	Bezel Assembly
2	Grille, Vent
5	End Cap, L.H.
5	End Cap, R.H.
6	WPL 302267
7	WP488627 Whirlpool Refrigerator Screw
8	W11693756 Whirlpool Screw Assembly
9	Screw, 12 x 7/8 (2)
10	Bumper, Rubber
11	Handrail, Hinge Assembly
12	Switch, Micro
13	Insulator, Terminal
14	Bracket, Switch Mounting
15	Screw, 4-40 x 3/4
16	WP488234 Whirlpool Air Conditioner Screw
17	Clip, Cable
18	Door, Tiltout
19	Insert, Woodgrain
20	Touch Module
21	Screw, 8 x 5/8 (Hil) (4)
22	Control Panel Assembly
23	Rod, Hinge
24	Display L.E.D.
25	Screw
26	Spacer (3)
27	Screw, 8-32 x 3/8 (4)
28	Standoff (4)
29	Indicator, L.E.D.
30	Harness, Ind/Main
31	Microcomputer Assembly
35	Control, Power Supply
36	Clip, Panel Retainer (2)
37	Barrier, Power Supply
38	Spring, Door
39	Retainer, Spring (2)
40	WP489128 Whirlpool Refrigerator Screw
41	Arm, Linkage
42	Pushnut
43	Harness, Display/Main
60	Clip, Mounting
61	Hanger, Cable
62	Retainer, Cable
63	675679 Whirlpool Dishwasher White Tip Tines
64	Label, Solid State
66	Silverware
67	Lens, Indicator
