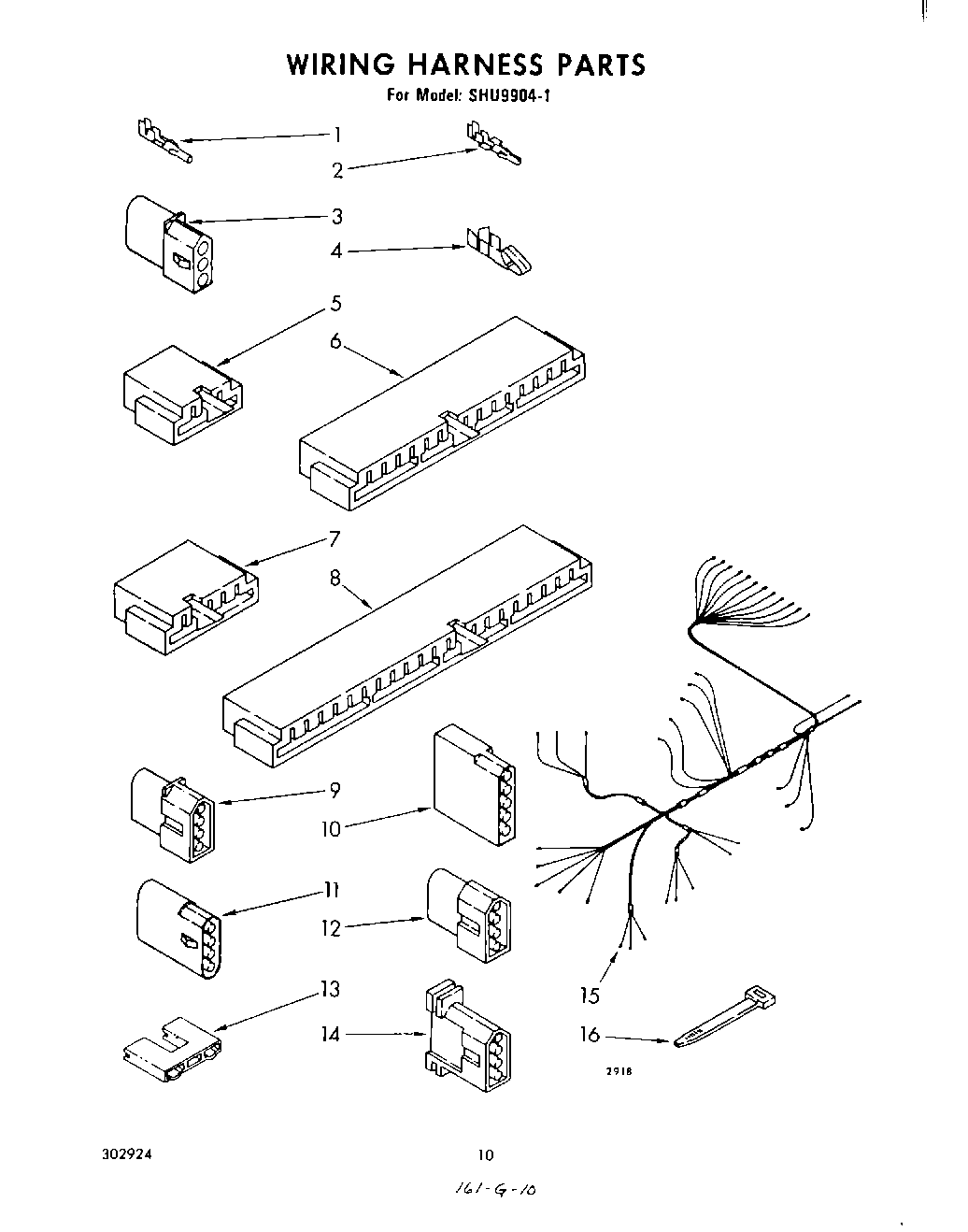

SHU99041 07 – WIRING HARNESS

Products

Position	Product
1	WP94614 Whirlpool Terminal
2	WP596797 Whirlpool Terminal
3	Plug
4	Terminal
5	Connector (3-Circuit)
6	Connector
7	WPL 60671
8	Connector (21-Circuit)
9	Connector (Door Switch)
10	Receptacle (5-Circuit)
11	WPL 717315
12	Plug
13	Terminal Insulator
14	Plug, Terminal
15	Harness, Wiring
16	Wire, Tie (Red, 4“)
16	WPW10339879 Whirlpool Wire Tie
