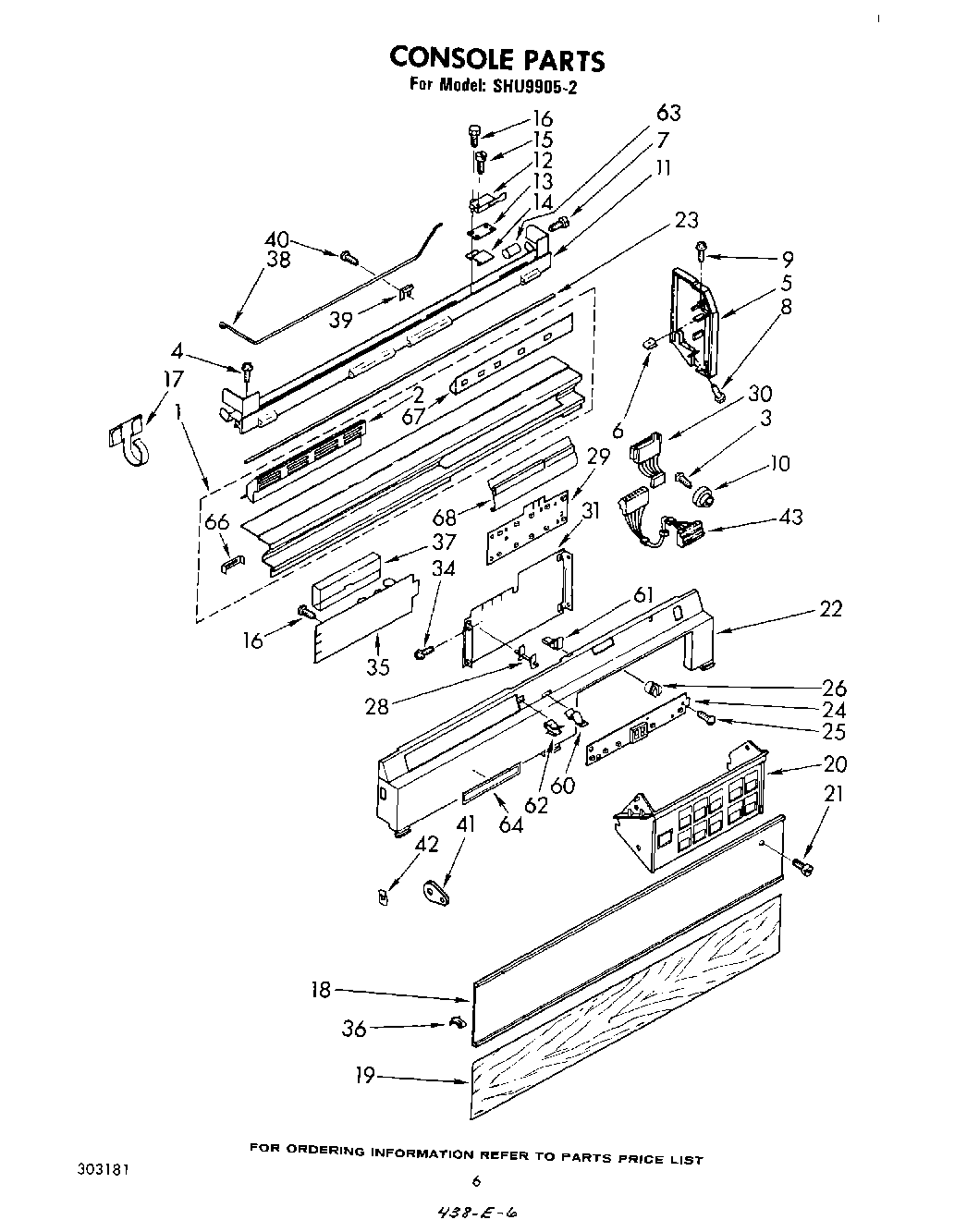

| 1 | Bezel Assembly |
| 2 | Grille, Vent |
| 5 | End Cap, L.H. |
| 5 | End Cap, R.H. |
| 6 | WPL 302267 |
| 7 | WP488787 Whirlpool Refrigerator Screw |
| 8 | W11693756 Whirlpool Screw Assembly |
| 9 | Screw, 12 x 7/8 (2) |
| 10 | Bumper, Rubber |
| 11 | Handrail, Hinge Assembly |
| 12 | Switch, Micro |
| 13 | Insulator, Terminal |
| 14 | Bracket, Switch Mounting |
| 15 | Screw, 4-40 x 3/4 |
| 16 | WP488234 Whirlpool Air Conditioner Screw |
| 17 | Clip, Cable |
| 18 | Door, Tiltout |
| 19 | Insert, Woodgrain |
| 20 | Touch Module |
| 21 | Screw, 8 x 5/8 (Hil) (4) |
| 22 | Control Panel Assembly |
| 23 | Rod, Hinge |
| 24 | Display L.E.D. |
| 25 | Screw |
| 26 | Spacer (3) |
| 28 | Standoff (4) |
| 29 | Indicator, L.E.D. |
| 30 | Harness, Ind/Main |
| 31 | Microcomputer Assembly |
| 34 | Screw, 8-32 x 3/8 (4) |
| 35 | Control, Power Supply |
| 36 | Clip, Panel Retainer (2) |
| 37 | Barrier, Power Supply |
| 38 | Spring, Door |
| 39 | Retainer, Spring (2) |
| 40 | WP489128 Whirlpool Refrigerator Screw |
| 41 | Arm, Linkage |
| 42 | Pushnut |
| 43 | Harness, Display/Main |
| 60 | Clip, Mounting |
| 61 | Hanger, Cable |
| 62 | Retainer, Cable |
| 63 | 675679 Whirlpool Dishwasher White Tip Tines |
| 64 | Label, Solid State |
| 66 | Silverware |
| 67 | Lens, Indicator |
| 68 | Barrier, Water |
