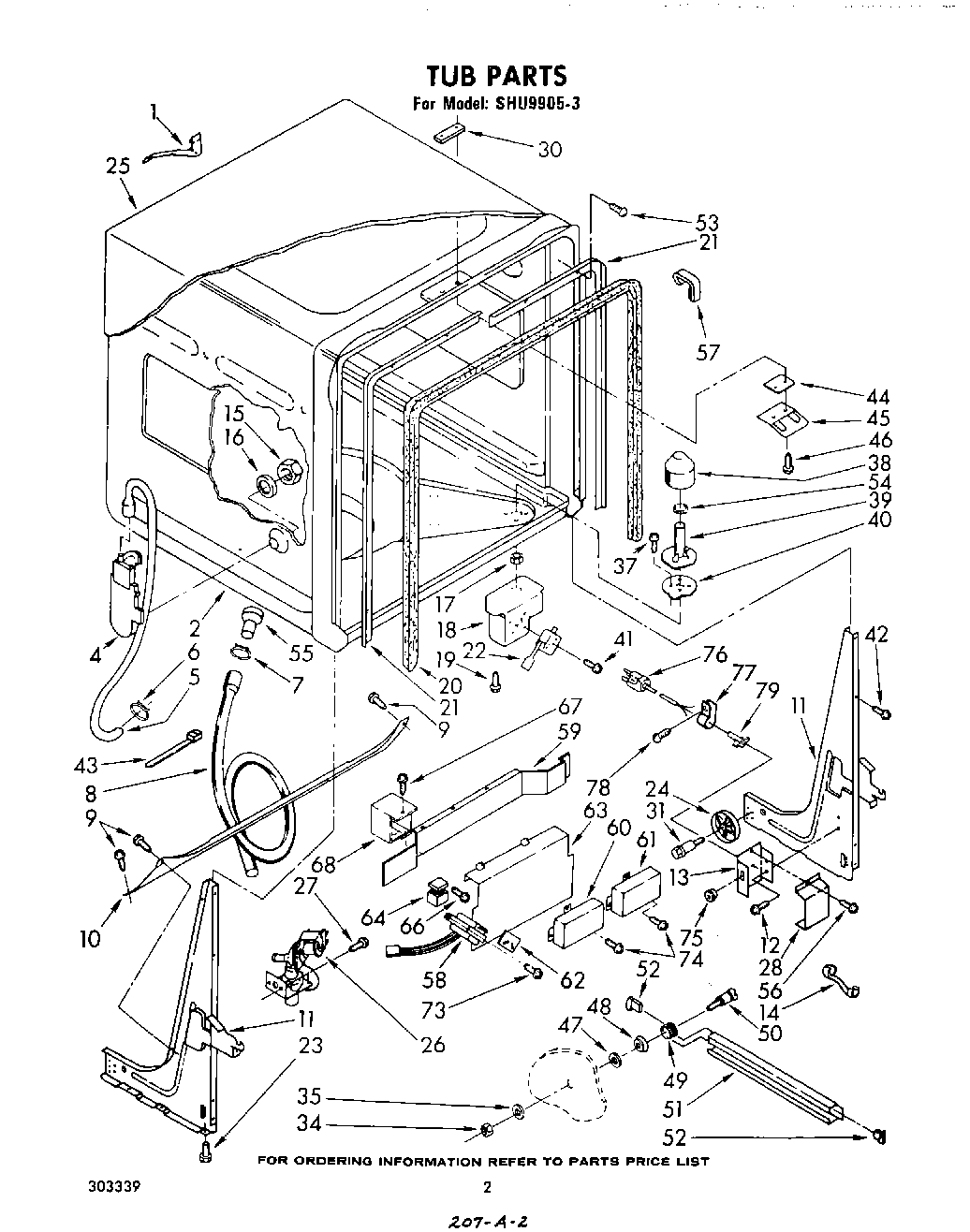

SHU99053 02 – TUB , LITERATURE AND OPTIONAL

SHU99053 02 – TUB , LITERATURE AND OPTIONAL

Written by

in

SHU99053 02 – TUB , LITERATURE AND OPTIONAL

Products

Position	Product
	Enamel, Coffee (1 Qt. Uncut)
	Golden Harvest (Uncut)
	Enamel, New Avocado (1 Qt. Uncut)
	Almond (Uncut)
	799344 Whirlpool Refrigerator Paint
1	Bracket, Mounting (2)
2	Tub Assembly
4	Inlet, Water
5	Hose, Inlet
6	WP596669 Whirlpool Hose Clamp
7	WP356138 Whirlpool Hose Clamp
8	675544 Whirlpool Drain Hose
10	Brace
11	Leg & Hinge Assembly, R.H.
11	Leg & Hinge Assembly, L.H.
12	Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1)
13	Box, Terminal
14	Relief, Strain
15	Nut, 7/18-16
16	Gasket
17	Nut
18	Bracket, Overflow Switch
19	Screw, 8 x 1/2 (3)
20	Gasket (Alternate)
20	Gasket (Alternate)
21	Retainer (R.H.)
21	Retainer (L.H.)
22	Retainer-Main Top (2 Required)
22	Switch, Pressure (Alternate)
23	8193716 Whirlpool Leveling Leg
24	WP302819 Whirlpool Dishwasher Wheel
25	W11086533 Whirlpool Dishwasher Shield
26	Valve, Water Inlet (Alternate)
28	300068 Whirlpool Dishwasher Cover Assembly
30	Nut, Twin Spring
31	Screw, Shoulder
34	Nut, Lock
35	Washer (8)
37	WP488729 Whirlpool Refrigerator Door Screw
38	Float
39	Standpipe, Overflow
40	Gasket, Overflow
41	Screw, 4-40 x 3/4
43	WPW10144763 Whirlpool Tie Wire
44	Shim
45	Strike
46	WP308685 Whirlpool Microwave Screw
47	Washer (8)
48	Washer, Cup
49	Roller, Rack Track
50	Screw, Shoulder (8)
51	Track (2)
52	Endcap, Front or Rear (2)
53	Screw, 8-18 x 5/8 (10)
54	Gasket, Standpipe (2)
55	WPL 301656
57	Clip, Gasket (2)
58	Transformer
59	Bracket, Mounting
60	Relay, 3-Coil (Main) (“A“)
61	Relay, 3-Coil (Motor) (“B“)
62	Barrier, Transformer
63	Barri
64	Relay, Start
66	WPL 301588
67	Rivet, Serial Nameplate
68	WPL 302332
74	WP90767 Whirlpool Screw
75	WPL 302770
76	WPL 302764
77	Clamp, Strain Relief
79	350942 Whirlpool Spray Paint
79	WPL 303207
79	Golden Harvest
79	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
79	WPL 302970
79	WPL 302543
79	WP72107 Whirlpool Touchup
79	72017 Whirlpool Appliance Touch-Up Paint White
79	350956 Whirlpool Spray Assembly
79	WPL 303024
79	Kit, Epoxy Patch (White)
79	WPL 799351
79	Leveler (Thinner) (2oz.)
79	350930 Whirlpool White Spray Paint
79	Paint, Spray 13 Oz. (Avocado)
79	paint, spray 13 oz. (coffee)
79	Paint, Touch-Up 1/2 Oz. (Coffee)
79	WPL 770754
79	72109 Whirlpool Dacor Avocado Touch-Up Paint
79	285006 Whirlpool Spray
79	WPL 303339
