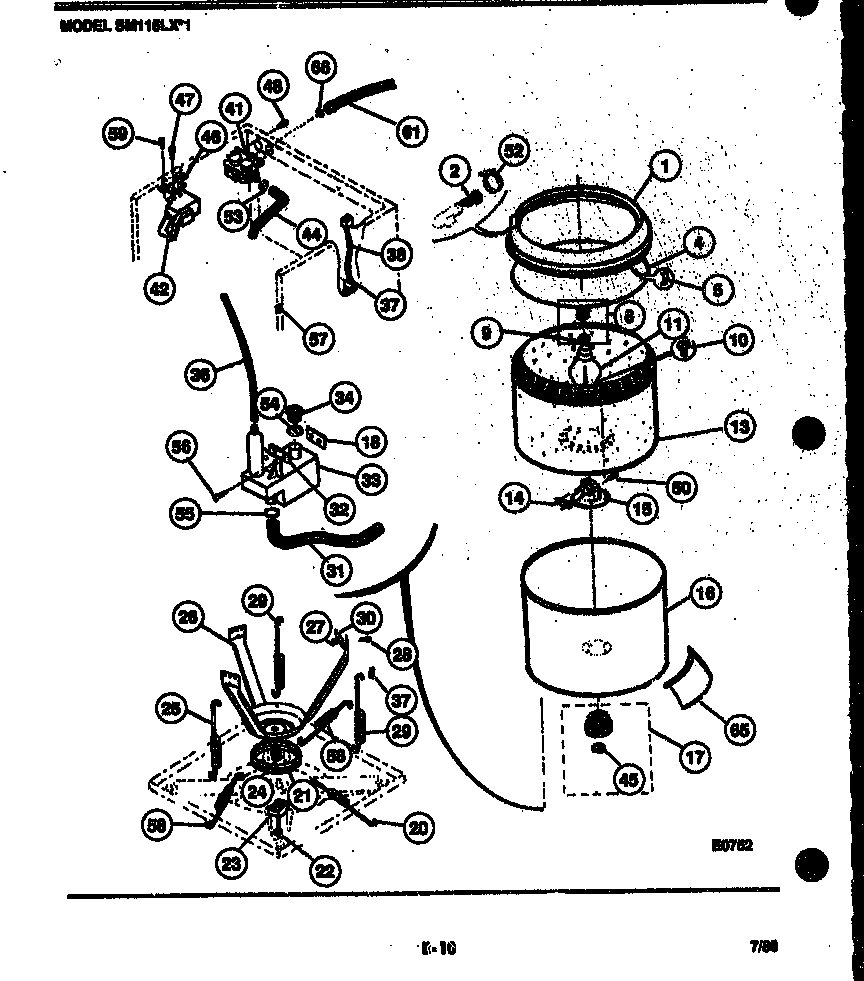

SM115LXW1 05 – TUBS, WATER VALVE AND LID SWITCH

Products

Position	Product
*12450	WCI F133016000
*12450	WCI F062805100
*12450	CLIP-PRESSURE-TUBE-LONG
*12450	CLIP-PRESSURE-TUBE-SHORT
1	WCI F142025000
2	WCI F142046000
4	WCI F078611100
5	WCI F079975000
8	WCI F131203100
9	WCI F073565000
10	WCI F142055000
11	WCI F141970000
13	WCI F142026000
14	137107000 Frigidaire Plate
15	WCI F140604100
16	WCI F141744000
17	WCI F140581000
18	WCI F139592000
20	WCI F079837000
21	WCI F130789000
22	WCI F137203000
23	WCI F077075000
24	WCI F077074000
25	WCI F137997100
26	WCI F079630000
27	WCI F054287000
28	WCI F063532000
29	WCI F137997000
30	WCI F132729000
31	HOSE
32	WCI F140324000
33	BUTTON TRAP
34	WCI F137466000
36	5304401845 Frigidaire Tube Pressure
37A	CLIP-HARNESS/LEG
38	WCI 3017109
41	134190200 Frigidaire Washer Water Valve
42	WCI 3017110
44	WCI F137507000
45	5308002401 Frigidaire Washer Primary
46	WCI F136148000
47	WCI F136029000
48	WCI F141175000
50	137539500 Frigidaire Washer Trunnion Lock Plate Bolt
52	WCI F064154010
53	WCI F064154003
54	CLAMP-HOSE
55	WCI F140887027
56	WCI F136471000
57	CLIP-HARN.
58	WCI F078135000
59	SCREW (2)
61A	5303912532 Frigidaire Hose Inlet 60"
65	WCI F132044000
66	WCI F139814000
