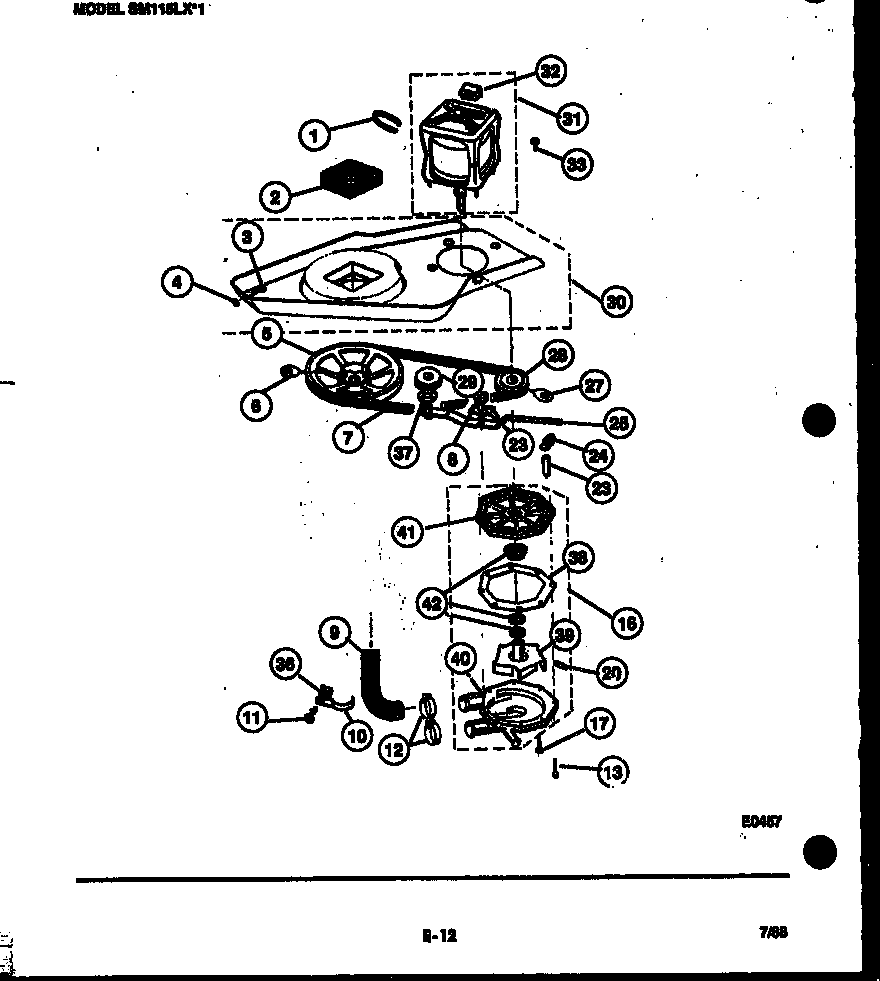

SM115LXW1 06 – WASHER DRIVE SYSTEM AND PUMP

SM115LXW1 06 – WASHER DRIVE SYSTEM AND PUMP

Written by

in

SM115LXW1 06 – WASHER DRIVE SYSTEM AND PUMP

Products

PositionProduct
15304464772 Frigidaire Refrigerator Wire Tie
2WCI F077009100
3WCI F077090000
4WCI F073804000
5WCI F140999100
65303270023 Frigidaire Screw Set
75303280326 Frigidaire Drive Belt Assembly
8WCI F142027000
9WCI F141127000
10WCI F136152000
11216858001 Frigidaire Refrigerator Screw
12WCI F140887028
13SCREW-PUMP MTG. (4)
16WCI F133058100
175304401796 Frigidaire Screws
20SCREW-IMPELLER
23SPACER (3)
24WCI F078465000
25WCI F141786000
27WCI F132861000
28WCI F134881000
295303912533 Frigidaire Pulley
30WCI F079494300
31WCI F140322000
32SWITCH-MOTOR (GE)
33WCI F132144000
36WCI F136297000
38WCI F077354000
39IMPELLER KIT (CONSISTS OF SEAL ASSEMBLY, GASKET, IMPELLE
40WCI F141874100
41WCI F077352000
42SEAL KIT (CONSISTS OF SEAL ASSEMBLY AND GASKET.)
