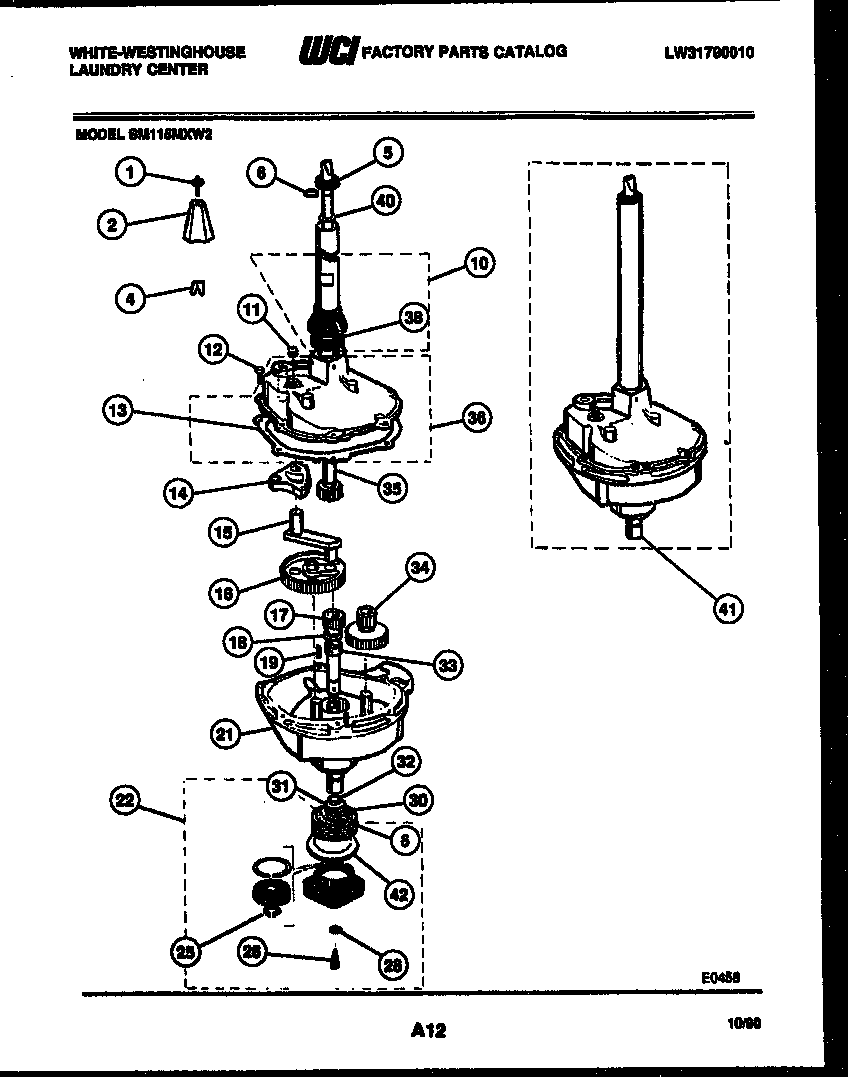

SM115MXW2 07 – TRANSMISSION PARTS

Products

Position	Product
*38539	OIL-TRANSMISSION (1 QT)
*38539	SLEEVE-CLUTCH COIL
1	WCI 3161221
2	WCI 08014904
4	WCI 3161222
5	WCI 08011273
6	WCI 3161223
10	WCI 08950197
11	PIPE PLUG
12	SCREW (6)
13	WCI 08015778
14	WCI 08011268
15	WCI 3161169
16	WCI 08015496
17	WCI 08014905
19	DOWEL PIN
21	HOUSING, LOWER
22	WCI 08950058
25	WCI 008015536
26	WCI 08027582
28	WCI 08002467
30	WCI 3351064
31	THRUST WASHER
32	5303161173 Frigidaire Seal Assembly
33	LGS SPRING-SMALL
34	WCI 3161175
35	134736400 Frigidaire Gear Case
36	WCI F140588000
38	WCI 3161231
40	THRUST WASHER
41	WCI 08057579
42	WCI 08057430
