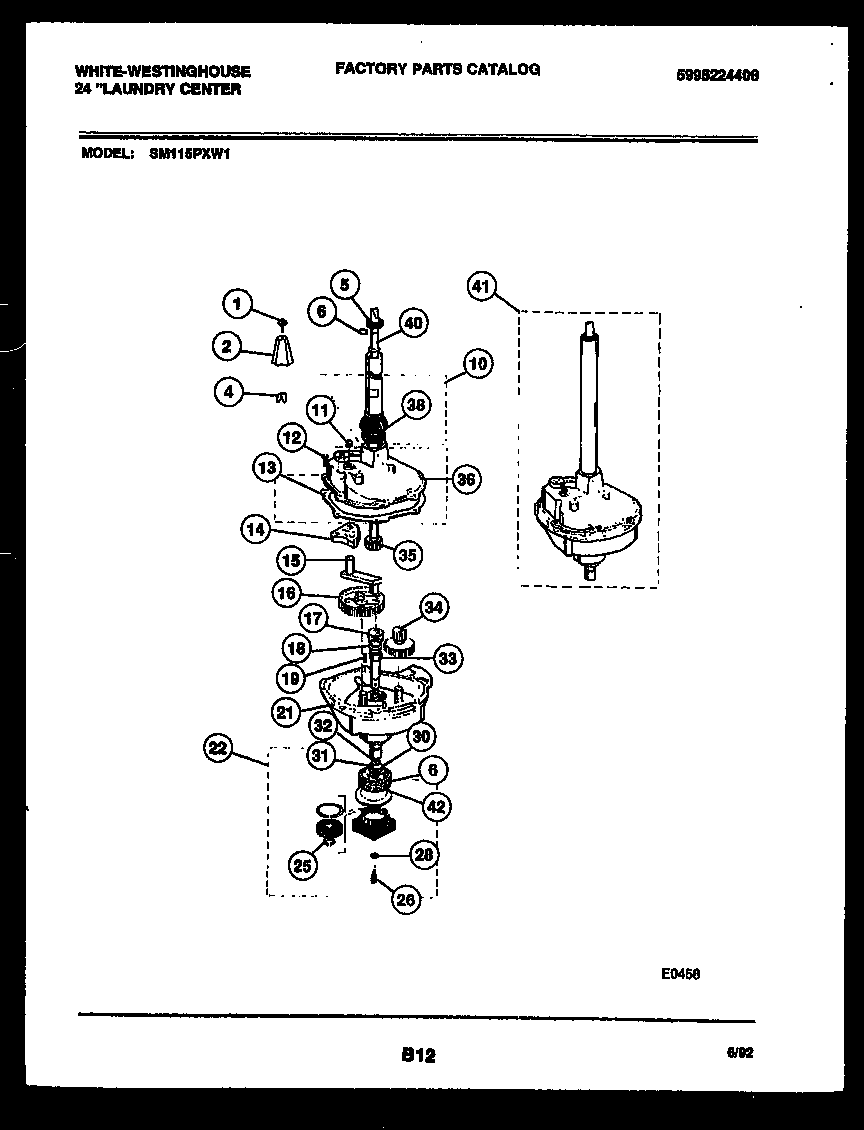

SM115PXD1 07 – TRANSMISSION PARTS

Products

Position	Product
*63667	OIL-TRANSMISSION (1 QT)
*63667	WCI 5303161182
1	WCI 5303161221
2	WCI 5303280324
4	SHIM-DRIVE BLOCK (AS REQUIRED)
5	5303161307 Frigidaire Dryer Seal Assembly
6	WCI 5303161223
10	TUB SEAL ASSY.
11	WCI 5303161224
12	SCREW (6)
13	GASKET
14	WCI 5308011268
15	WCI 5303161169
16	WCI 5308015496
17	WCI 5308014905
19	WCI 5303161227
21	HOUSING-LOWER
22	BEARING HOUSING
25	WCI 5308015536
26	SCREW (2)
28	RUBBER SPACER (2)
30	WCI 5308002475
31	WCI 5303161226
32	5303161173 Frigidaire Seal Assembly
33	WCI 5303161174
34	WCI 5303161175
35	134736400 Frigidaire Gear Case
36	WCI 5303937039
38	SLINGER
40	THRUST WASHER
42	WCI 5308057430
