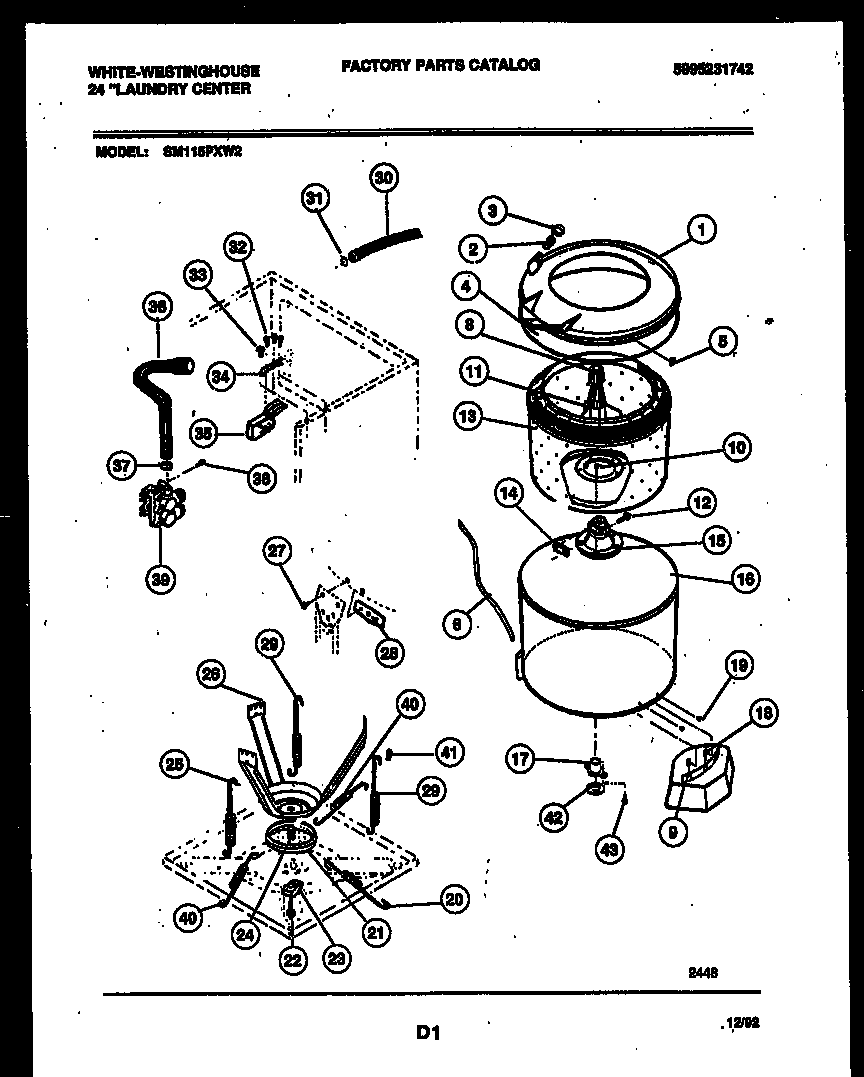

SM115PXW2 05 – TUBS, WATER VALVE AND LID SWITCH

Products

Position	Product
*71904	WCI 5373565000
1	WCI 3205029
2	WCI 5308027515
3	WCI F140887026
4	WCI 5303161121
5	WCI 5303161199
6	5304401845 Frigidaire Tube Pressure
8	WCI 5303161122
9	WCI 5303283049
10	137546400 Frigidaire Screw 5/165-18 X .625
11	WCI 5303283050
12	137539500 Frigidaire Washer Trunnion Lock Plate Bolt
13	TUB-SPIN
14	137107000 Frigidaire Plate
15	131545101 Frigidaire Dryer Washer Transmission Trunnion Nut
16	WCI 131033000
17	3204405 Frigidaire Outer Tub Spin Bearing
18	WCI 5303283052
19	131420300 Frigidaire Screw
20	WCI 5303212125
21	SNUBBER RING
22	WCI 5303161284
23	WCI 5303161202
24	NUT-EXPANSION
25	WCI 5303161131
26	WCI 5303283054
27	SCREW (6)
28	WCI 5303269887
29	WCI 5303161133
30	5303912532 Frigidaire Hose Inlet 60"
31	5303161296 Frigidaire Washer-Inlet Hose (1Piece)
32	SCREW
33	131168200 Frigidaire Dryer Screw
34	BRACKET
35	WCI 3205033
36	WCI 3205034
37	CLAMP HOSE
38	WCI 5303010202
39	134190200 Frigidaire Washer Water Valve
40	WCI 5308006573
41	CLIP (2)
42	5308002401 Frigidaire Washer Primary
43	3205150 Frigidaire Tub Bearing Screw
