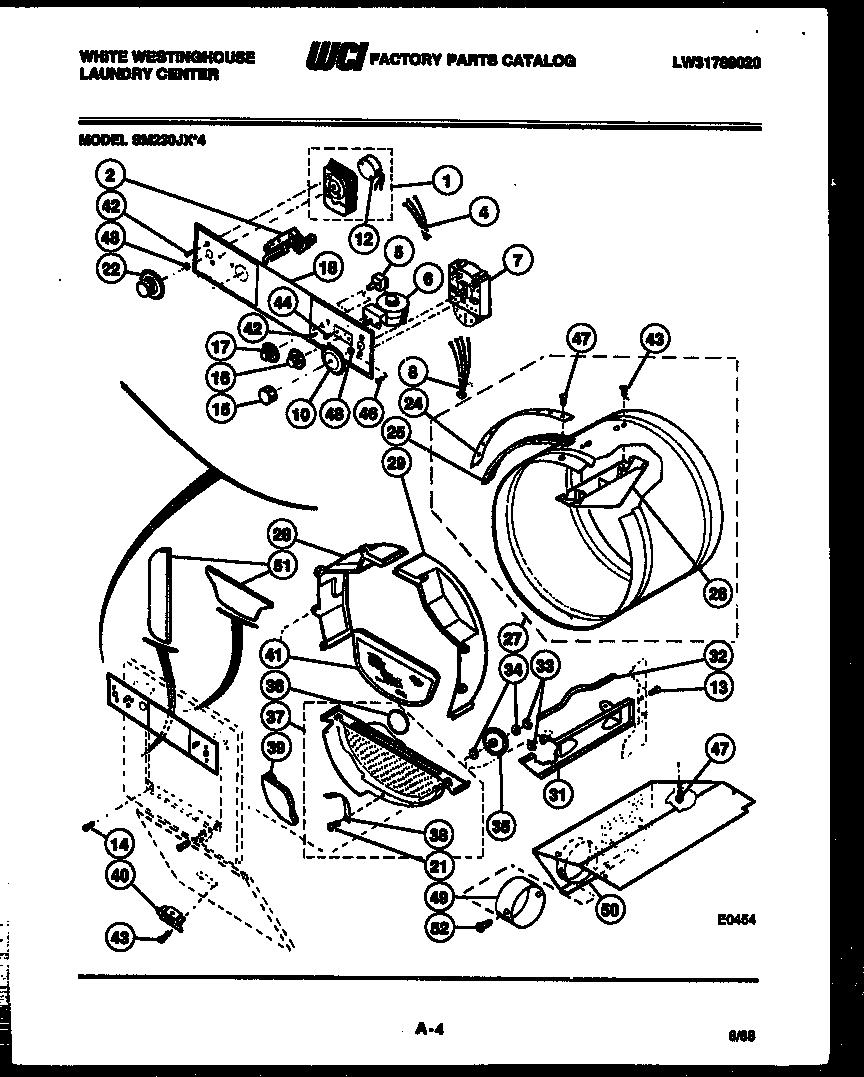

SM230JXD4 03 – CONSOLE, CONTROL AND DRUM

Products

Position	Product
*10724	SHIELD-TMR-WSHR
*10724	WCI 3004951
*10724	RESISTOR
1	WCI 3017936
2	WCI 3017893
4	WCI 3017937
5	WCI 3017895
6	WCI 3017896
7	WCI 3017897
8	HARNS-UP-WSHR-MTR
10	WCI 3017898
12	MOTOR-TIMER-DRYER
13	WCI F136029000
14	SCREW (8)
15	WCI 3017899
16	WCI F141491000
17	WCI F141489000
18	TRIM PLATE
22	WCI F14149700
24	WCI F136009000
25	WCI F136008000
25	WCI F136007000
26	WCI F136005100
27	WCI F136004032
28	WCI F136949000
29	WCI F136948000
31	WCI 3017901
32	WCI F136073000
32	WCI 3017902
33	WCI F136075000
34	WCI F136074000
35	WCI F136175000
36	WCI F136240000
37	WCI F140583000
38	WCI F136046000
39	WCI F136920000
40	WCI 3016456
40	WCI 3016458
41	WCI F136047000
42	WCI F135021000
43	131205100 Frigidaire Screw
43	WCI F136951000
46	WCI F060796000
48	SPACER-TIMER SHAFT-WASHER
49	WCI 3016459
50	WCI 3016460
51	INSULATION FRONT PANEL LH
51	INSULATION FRONT PANEL TOP
52	131168200 Frigidaire Dryer Screw
