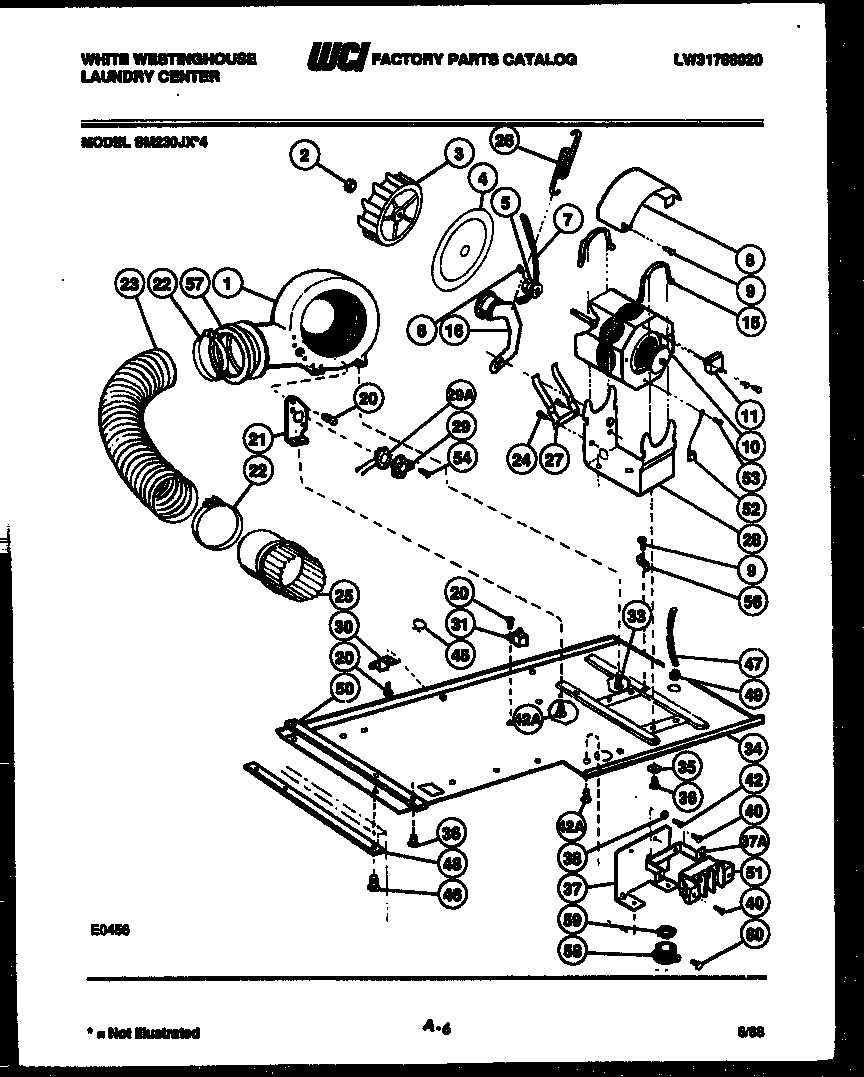

SM230JXD4 04 – DRYER MOTOR, BLOWER AND BELT

Products

Position	Product
*10728	5308819002 Frigidaire Dryer 30 Amp 4'3" Cord
*10728	WCI F133077000
1	WCI 3016461
2	WCI F136097000
3	WCI F136096100
4	WCI F136095026
5	WCI F136923000
6	WCI F144012000
7	WCI F136102000
8	WCI 3016462
9	218359202 Frigidaire Refrigerator Screw
10	WCI F141684000
11	WCI F067634008
15	WCI F002618000
16	WCI F140582000
20	131168200 Frigidaire Dryer Screw
20	WCI F1362249000
21	WCI 3016464
22	5304436333 Frigidaire C500 Gal Worm Gear 4
23	WCI F136123000
25	WCI 3016465
26	WCI F136947000
27	WCI F136941000
28	CRADLE MOTOR
29	THERMOSTAT-CONTROL
29A	HEATER THERMOSTAT
30	WCI F136107000
31	WCI F133242000
33	131205100 Frigidaire Screw
34	WCI F141957028
35	WCI F079874000
35A	WCI F063602000
37A	WCI 3016467
37	BRACKET-TERMINAL BLOCK
38	WCI F078101000
40	WCI F136029000
40	131302800 Frigidaire Drum Vane Screw
42	134154100 Frigidaire Screw 10-32 x 0.375 Co
42A	SCREW
45	RING WIRE TO SIDE OF BASE
46	WCI F138539000
47	5304401845 Frigidaire Tube Pressure
48	BRACE
49	WCI F077193000
50	WCI 3016469
51	134037400 Frigidaire Block
52	WCI F136973000
53	WCI F132144000
54	216858001 Frigidaire Refrigerator Screw
56	WCI F079171000
57	WCI 3016471
58	STRAIN RELIEF
59	WCI 3016473
60	SCREW-STRAIN RELIEF
