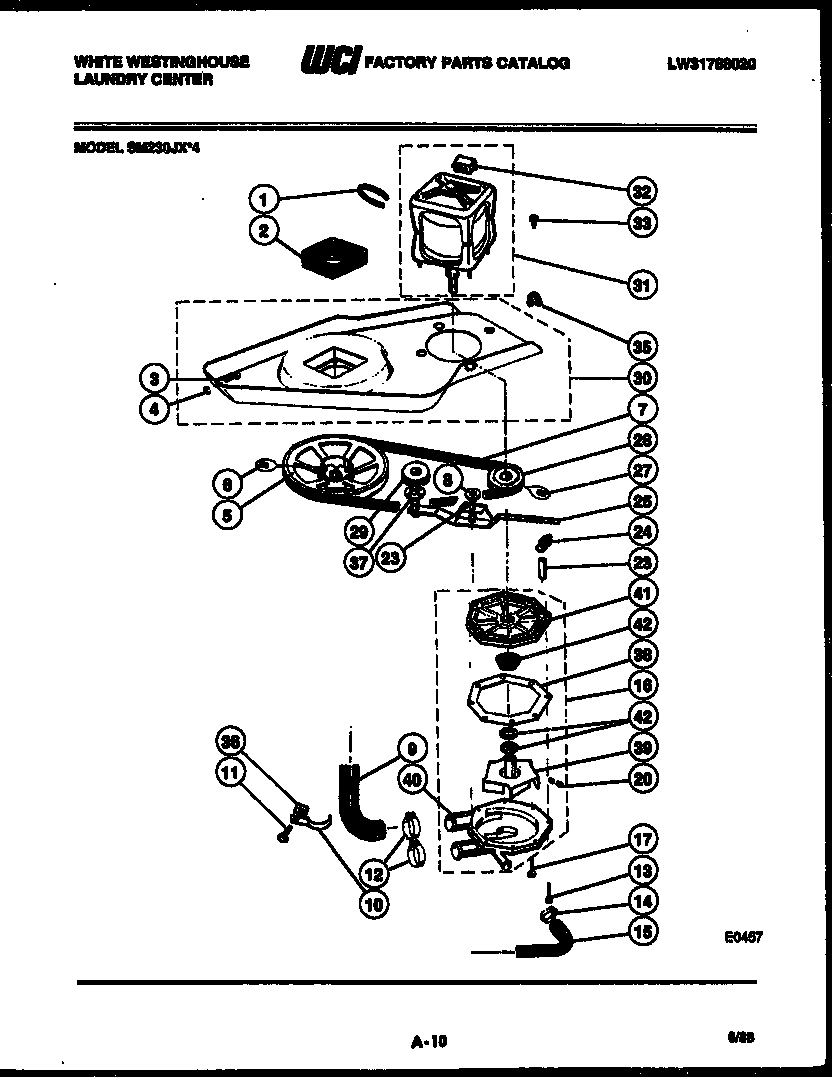

SM230JXD4 06 – WASHER DRIVE SYSTEM AND PUMP

Products

Position	Product
1	5304464772 Frigidaire Refrigerator Wire Tie
2	WCI F077009100
3	WCI F077090000
4	WCI F073804000
5	WCI F140999100
6	5303270023 Frigidaire Screw Set
7	5303280326 Frigidaire Drive Belt Assembly
8	WCI F142027000
9	WCI F141127000
10	WCI F136152000
11	216858001 Frigidaire Refrigerator Screw
12	WCI F140887029
13	SCREW-PUMP MTG. (4)
14	WCI F140887021
15	WCI F136147000
16	WCI F133058000
17	5304401796 Frigidaire Screws
20	SCREW-IMPELLER
23	SPACER (3)
24	WCI F078465000
25	WCI F141786000
27	WCI F132861000
28	WCI F134881000
29	5303912533 Frigidaire Pulley
30	WCI F079494300
31	WCI F140322000
32	WCI F067630015
33	WCI F132144000
35	WCI F066912000
36	WCI F078029000
38	WCI F077354000
39	IMPELLER KIT (CONSISTS OF SEAL ASSEMBLY, GASKET, IMPELLE
40	WCI F141874100
41	WCI F077352000
42	SEAL KIT (CONSISTS OF SEAL ASSEMBLY AND GASKET.)
