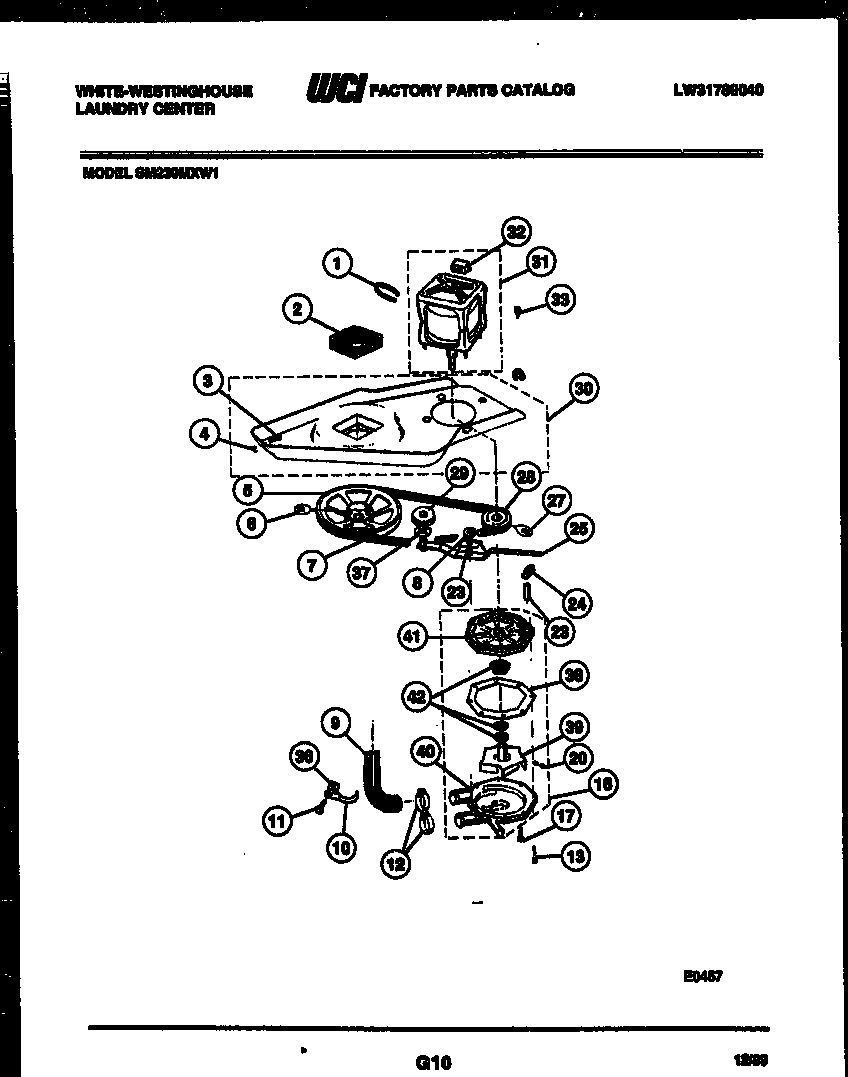

SM230MXW1 06 – WASHER DRIVE SYSTEM AND PUMP

Products

Position	Product
1	5304464772 Frigidaire Refrigerator Wire Tie
2	WCI F077009-100
3	WCI 3161211
4	WCI 3161212
5	WCI 3205951
6	5303270023 Frigidaire Screw Set
7	5303280326 Frigidaire Drive Belt Assembly
8	WCI 08027535
9	WCI F141127-000
10	WCI 08004052
11	216858001 Frigidaire Refrigerator Screw
12	WCI 08014914
13	WCI 08002390
16	WCI 3937013
17	5304401796 Frigidaire Screws
20	WCI 3161217
23	WCI 3161303
24	WCI 08002456
25	WCI 3937001
27	WCI 5303206869
28	WCI 08006686
29	5304527822 Frigidaire Pulley
30	WCI F079494-300
31	WCI 08015502
32	WCI 08014888
33	SCREW
36	WCI 08004096
38	WCI 08002396
39	WCI F079428-000
40	WCI 3161489
41	WCI F077352-000
42	SEAL KIT (CONSISTS OF SEAL ASSEMBLY AND GASKET)
