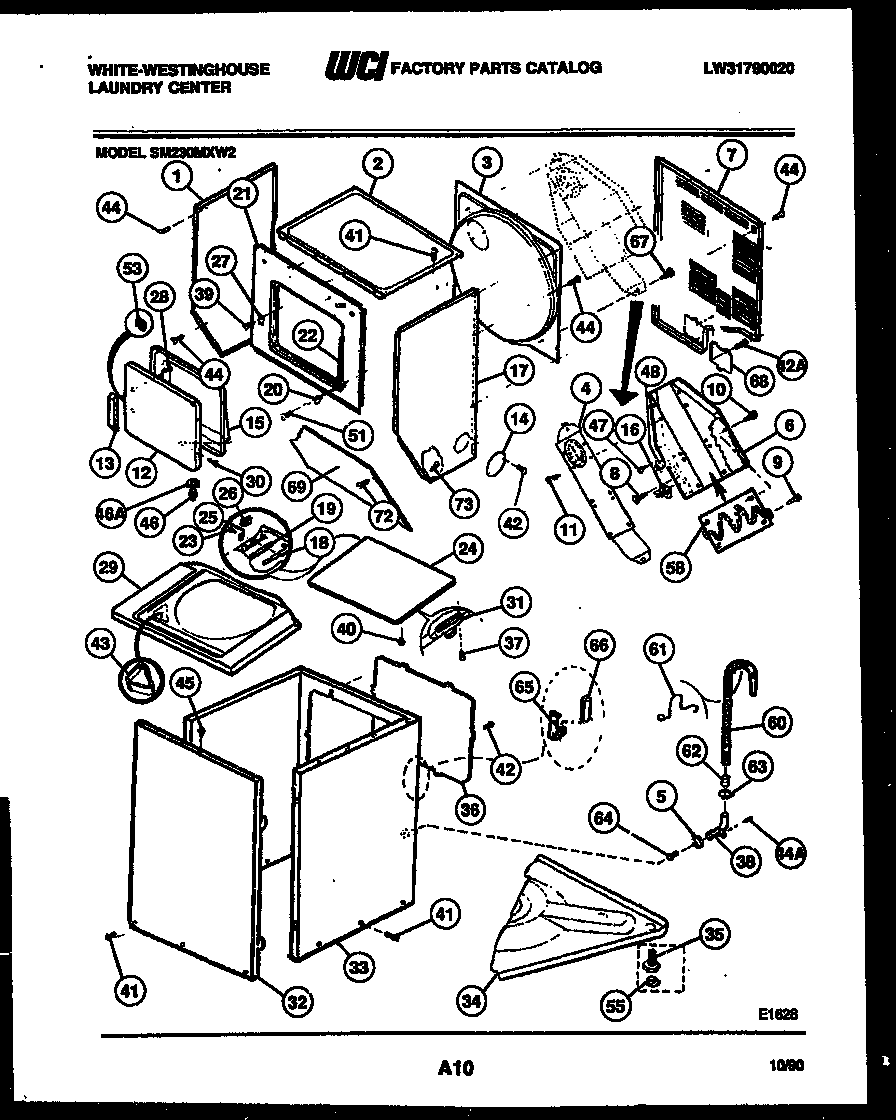

SM230MXW2 02 – CABINET PARTS AND HEATER

Products

Position	Product
*36064	WCI 3161057
1	WCI 5303209761
2	WCI 3204948
3	WCI 3204950
4	PANEL-FRONT
5	WCI 08004057
6	WCI 3204951
7	PANEL-VENT
9	SCREW (2)
12	WCI 2016427
13	WCI F141994-000
14	WCI 3204952
15	WCI 3016433
16	WCI 08015856
17	WCI 5303209763
18A	WCI 3205943
18	HINGE BAR-LH
19	WCI 3204957
20	HINGE-DOOR
21	WCI 3204961
22	WCI 3204964
23	WCI 3204359
24	WCI 3204965
25	WCI 08002408
26	5303208743 Frigidaire Grommet
27	WCI 3016439
28	131205100 Frigidaire Screw
29	WCI 5303207099
30	WCI 3161187
31	131390000 Frigidaire Door Catch-Strike
32	WCI 3204973
33	WCI 3204978
34	WCI 3161044
35	WCI 3937004
36	PANEL-REAR ACCESS
37	3204368 Frigidaire Screw-Strike
38	COUPLER – DRAIN HOSE
39	WCI 3161237
40	WCI 3204981
41	SCREW
42	131302800 Frigidaire Drum Vane Screw
43	WCI 3204983
44	WCI 08011280
44A	WCI F144005-000
45	PIN – LOCATING
46	WCI 3016440
46A	WASHER
47	WCI 3204269
48	WCI 3204986
49	WCI 08006549
53	PLATE-STRIKE
55	WCI 3004083
57	WCI 3161185
58	HEATER ASSEMBLY
60	WCI 3205414
61	WCI 3204987
62	WCI 5303206866
63	WCI 5364154013
63A	WCI 3161250
64	WCI 080145555
65	BRACKET-CAPACITOR
66	WCI 08014903
67	131168200 Frigidaire Dryer Screw
68	WCI 08015822
69	WCI 3204991
72	WCI 08011318
73	SCREW (2)
