SM230PXD3 03 – CONSOLE, CONTROL AND DRUM – Aparts

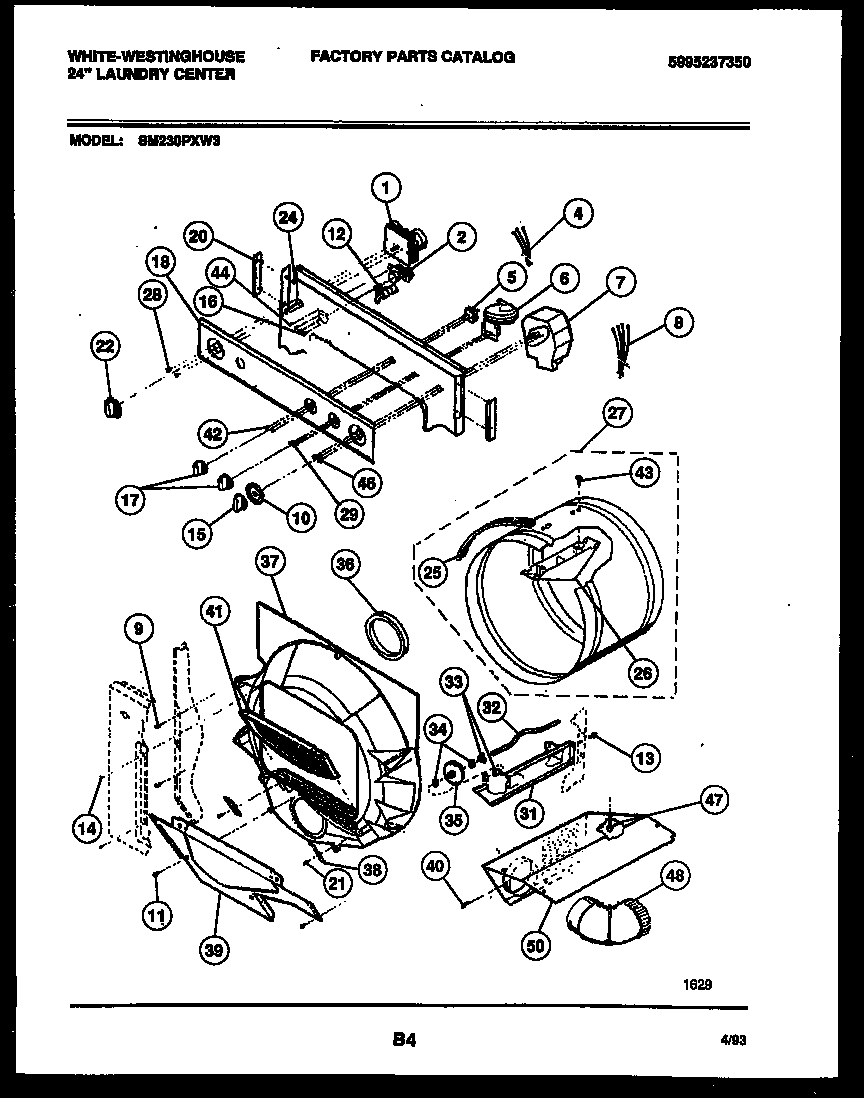

SM230PXD3 03 – CONSOLE, CONTROL AND DRUM

Products

Position	Product
*74619	REGISTER
*74619	WCI 5303208455
*74619	5303303590 Frigidaire Dryer 4.0" Cable Tie
*74619	WCI 08008454
*74618	RESISTOR
*74619	Spacer,washer ,timer shaft
1	WCI 3205944
2	WCI 5303209765
4	WCI 5303283043
5	WCI 5303017895
6	WCI 131065400
7	WCI 5303289594
8	WCI 131027000
10	WCI 3204999
11	131205100 Frigidaire Screw
12	WCI 3205000
13	WCI 08011280
14	WCI 5303285467
15	WCI 3205947
17	WCI 3205948
18	PANEL - CONTROL
20	WCI 3205006
22	KNOB & DIAL ASSY
24	WCI 3205008
25	WCI 5303286418
26	BAFFLE-DRUM (3)
27	WCI 3205010
31	WCI 3017901
31A	WCI 3017902
32	WCI 5308004076
34	WCI 08012152
35	SNAP RING (4)
36	WCI 5303209445
37	WCI 5303288388
38	GUIDE (2)
39	COVER-LINT HSG
40	SCREW (2)
41	WCI 3205015
42	WCI 5303208454
44	WCI 08010804
46	WCI 08001544
47	WCI 3205016
48	WCI 3205017
50	WCI 3016460
