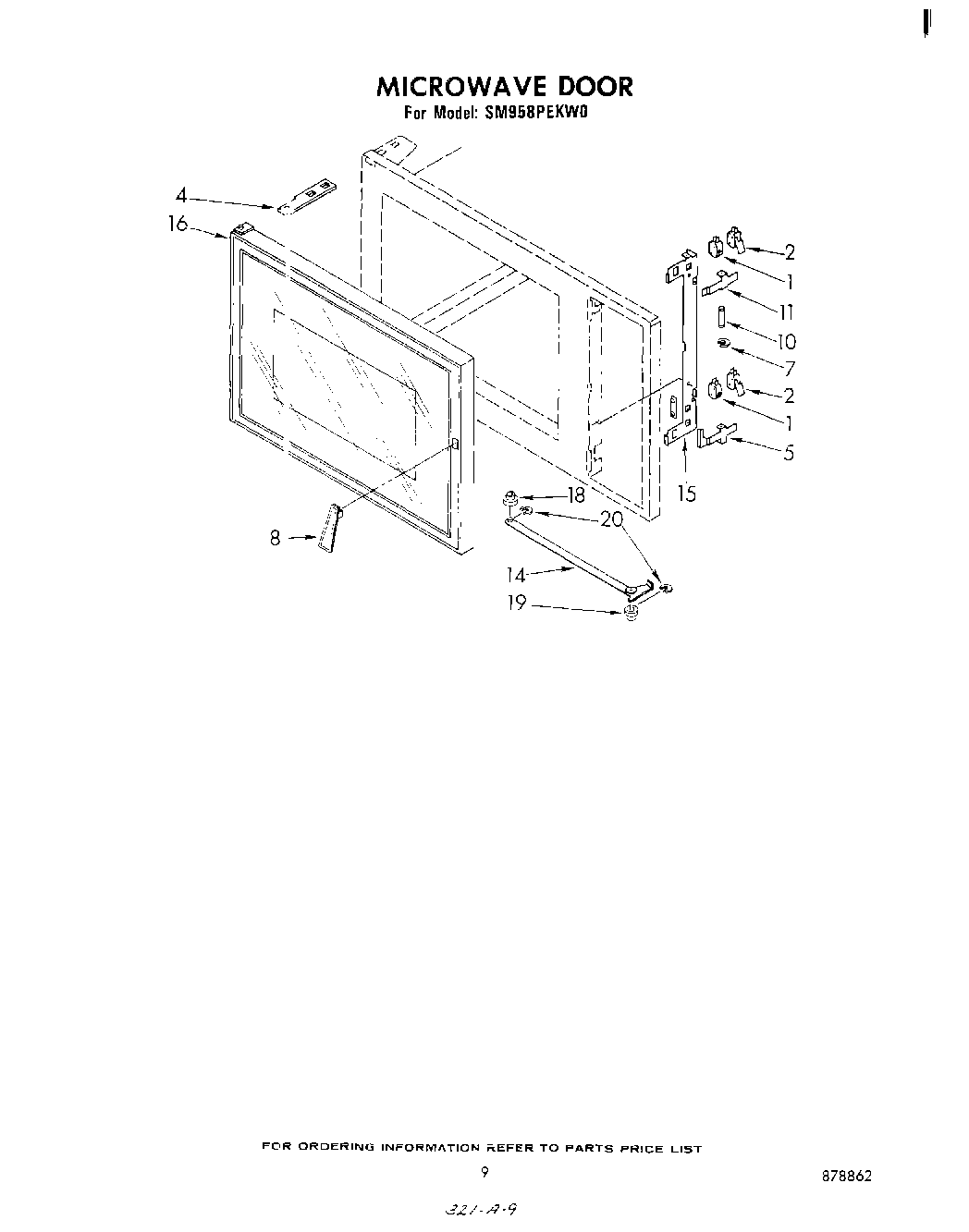

SM958PEKW0 06 – MICROWAVE DOOR

SM958PEKW0 06 – MICROWAVE DOOR

Written by

in

SM958PEKW0 06 – MICROWAVE DOOR

Products

PositionProduct
1Switch, Interlock
2Switch, Interlock
4Hinge, Door (2)
5Lever, Microswitch (Lower)
7“E“ Ring (4)
8Handle, Latch
10Pin, Microswitch Lever (2)
11Lever, Microswitch (Upper)
14Link, Door
15Plate, Microswitch Lever
16Door, Microwave Complete
18Bearing, Door
19Bushing, Guide
20E-Ring (2)
