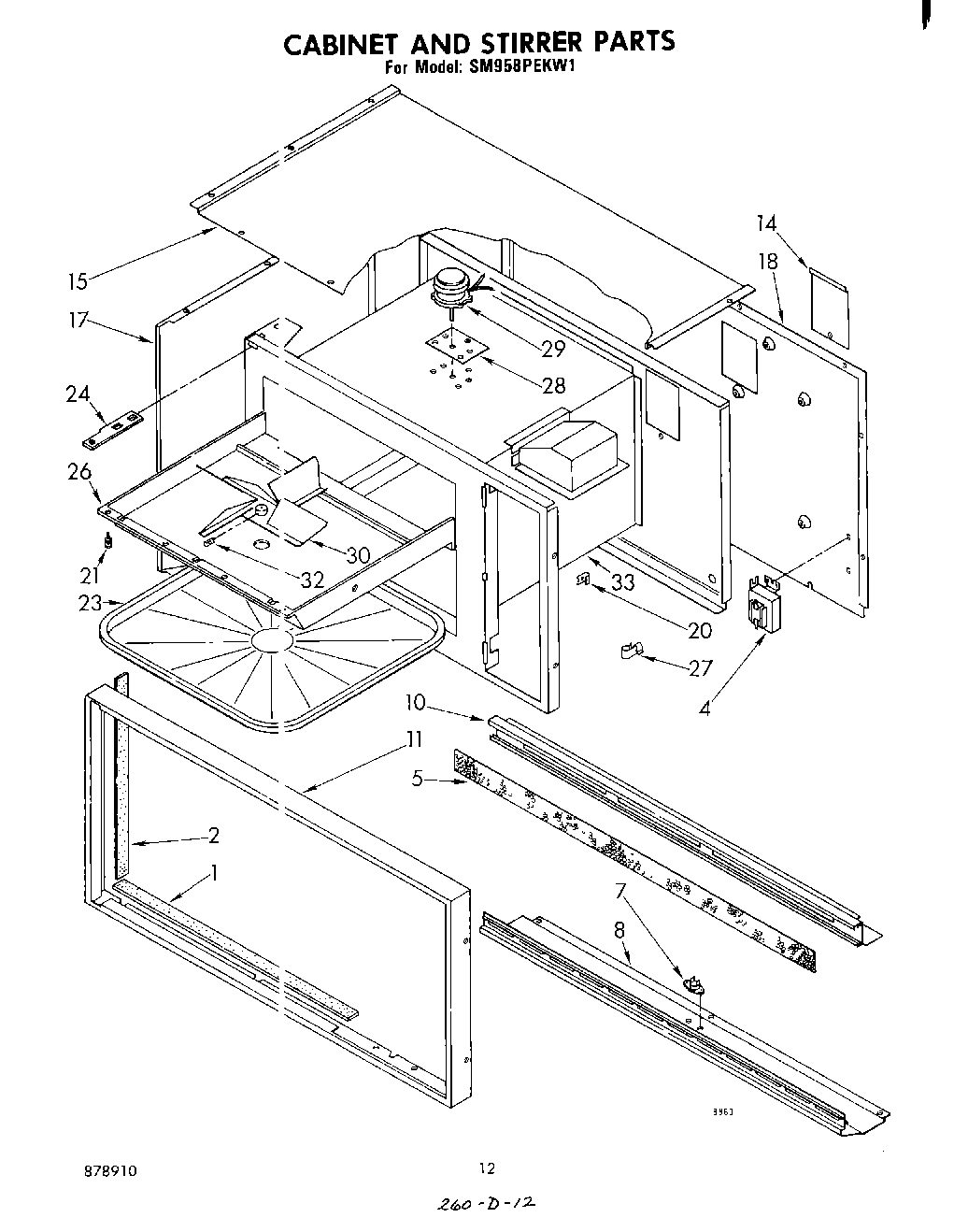

SM958PEKW1 08 – CABINET AND STIRRER

Products

Position	Product
1	Gasket, Leakage Top (2)
2	Gasket, Leakage (Left)
4	Ballast, Fluorescent Light
5	Grille, Vent
7	Thermostat, Snap Acting
8	Trim, Cabinet Bottom
10	Trim, Cabinet Top
11	Trim, Cabinet
14	Cover, Access (Lamp)
15	Top, Cabinet
17	Panel, Cabinet End (Left Side) (Harvest Gold)
17	Panel, Cabinet End (Left Side) (Coffee)
17	Panel, Cabinet End (Left Side) (Harvest Gold)
17	Panel, Cabinet End (Left Side) (Coffee)
17	Panel, Cabinet End (Left Side) (Almond)
17	Panel, Cabinet End (Left Side) (White)
17	Panel, Cabinet End (Left Side) (Almond)
17	Panel, Cabinet End (Left Side) (White)
18	Back, Cabinet
20	Clip, Cabinet Trim (4)
21	Rivet, Stirrer Cover (6)
23	Tray, Cooking
24	Hinge, Door (2)
26	Cover, Stirrer
27	Clamp, Wire
28	Gasket, Stirrer Motor
29	Motor, Stirrer
30	Blade, Stirrer
32	Setscrew, 8-32 x 1/4
