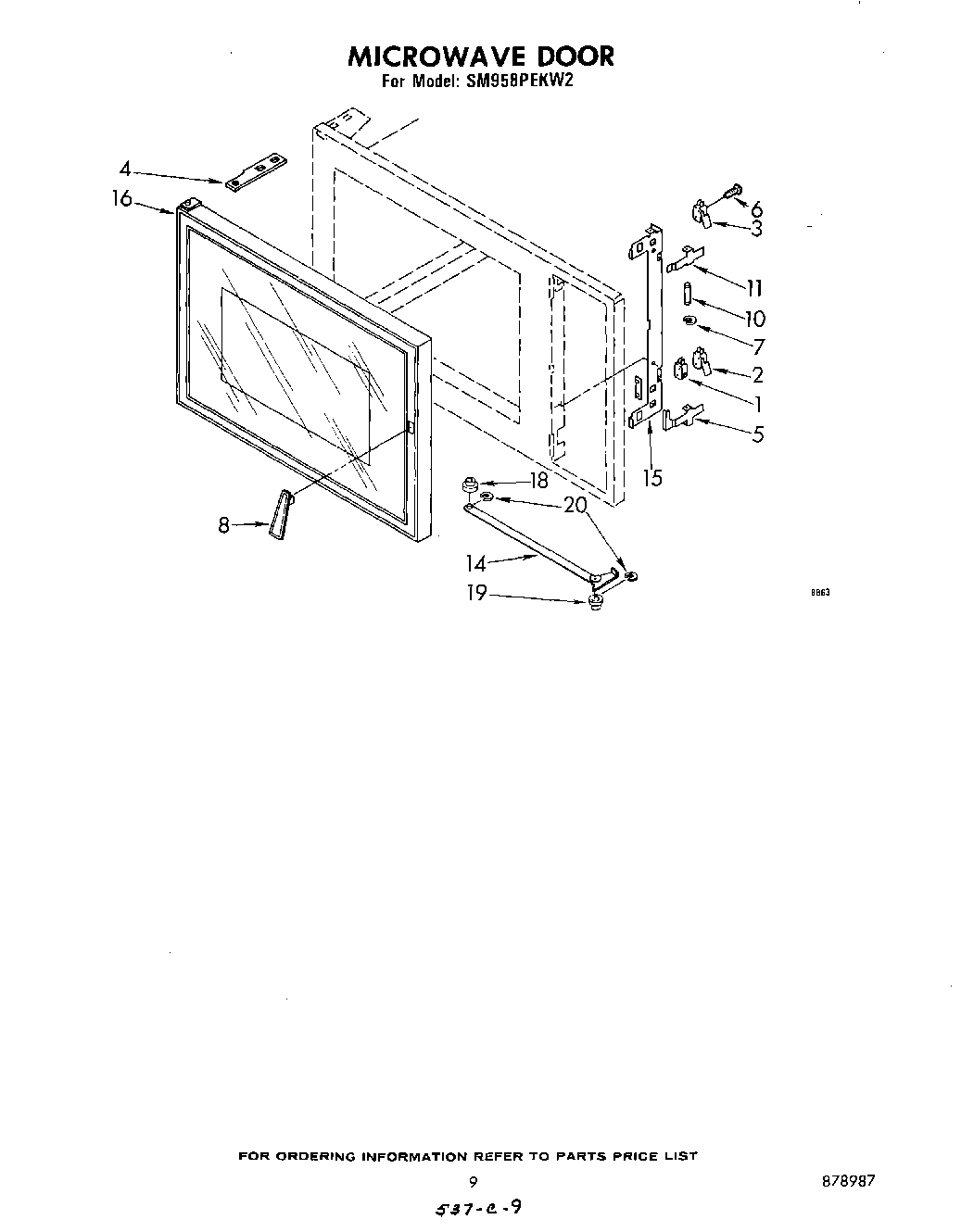

SM958PEKW2 06 – MICROWAVE DOOR

Products

PositionProduct
1Switch, Interlock
2Switch, Interlock
3Switch, Top Interlock
4Hinge, Door (2)
5Lever, Microswitch (Lower)
6Screw, Interlock Switch
7“E“ Ring (4)
8Handle, Latch
10Pin, Microswitch Lever (2)
11Lever, Microswitch (Upper)
14Link, Door
15Plate, Microswitch Lever
16Door, Microwave Complete
18Bearing, Door
19Bushing, Guide
20E-Ring (2)
