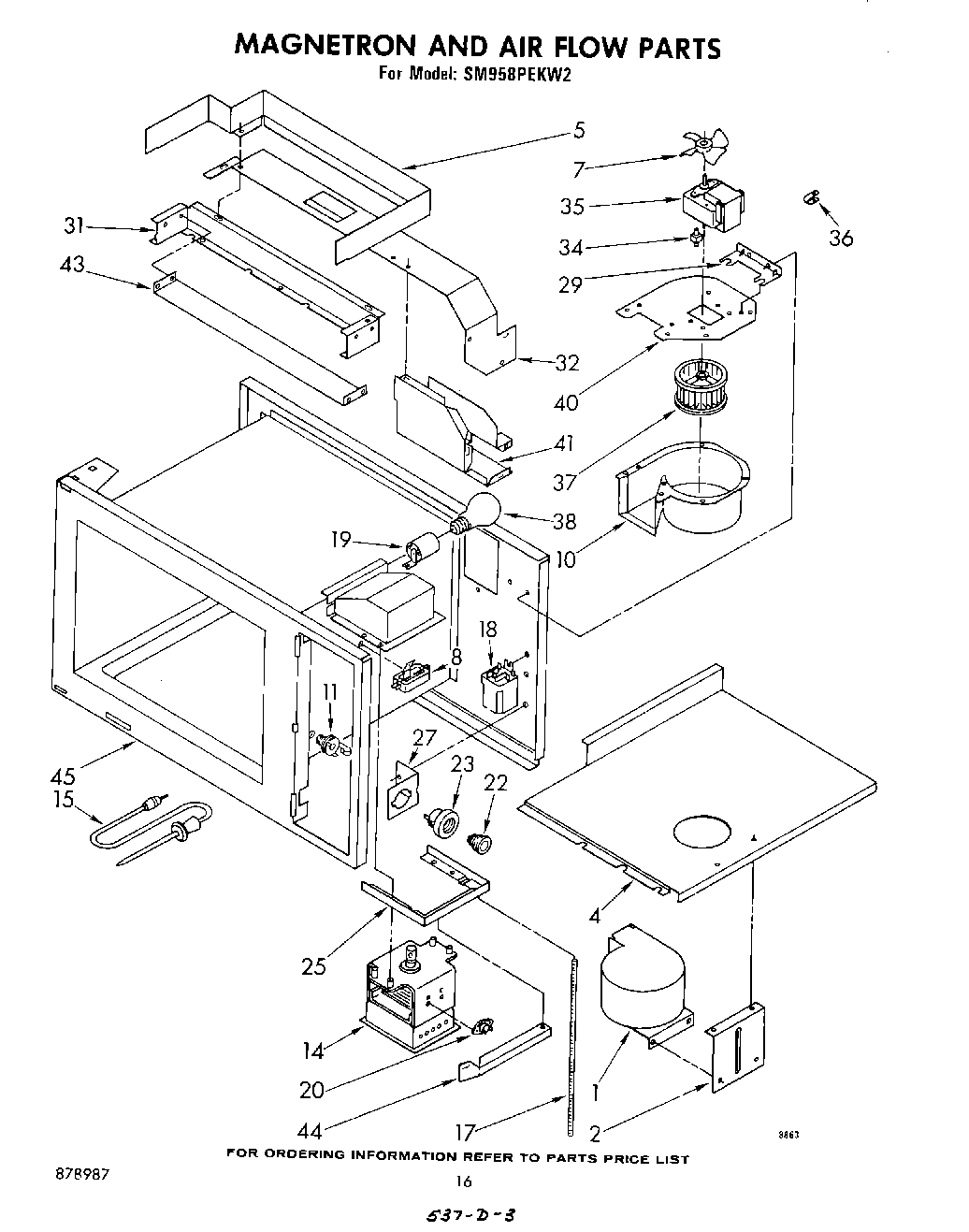

SM958PEKW2 10 – MAGNETRON AND AIRFLOW

Products

Position	Product
1	Blower, Auxillary
2	Bracket, Fan Mounting
4	Duct, Auxillary
5	Extension, Duct
7	Blade, Transmotor
8	Connector, Probe
10	Housing, Blower
11	Jack, Turntable (Not Serviceable)
14	Magnetron
15	Probe, Temperature
17	Rod, Waveguide Support
18	Relay, Auxillary Blower
19	Socket, Light
20	Thermostat
22	Fuse, 20 Amp
23	Holder, Fuse (20 Amp$FF3 only$FF1)
25	Support, Waveguide Bracket
27	Support, Fuse Holder
29	Bracket, Blower
31	Baffle, Exhaust
32	Duct, Magnetron Exhaust Top
34	Bushing, Blower
35	Transmotor, Blower
36	Strap, Ground
37	Wheel, Blower
38	RANGE ONLY 40W 120V APPL BULB
40	Cover, Blower Housing
41	Duct, Magnetron Exhaust Bottom
43	Bracket, Baffle
44	Brace, Front Frame
