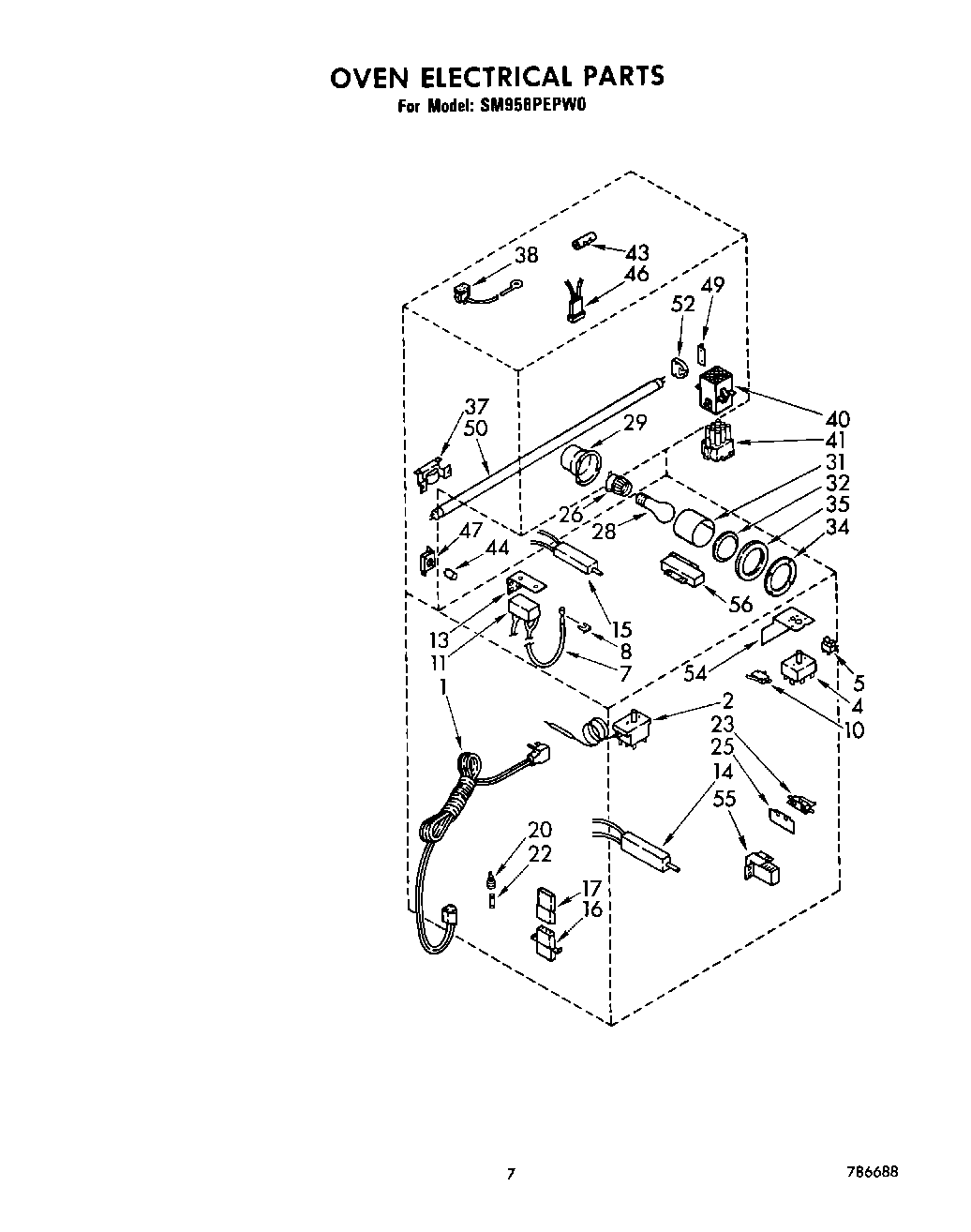

SM958PEPW0 05 – OVEN ELECTRICAL

Products

Position	Product
1	Cord, Power
2	Thermostat, Oven
4	Switch, Selector
5	Switch, Rocker
7	4157608 Whirlpool Surface Igniter
8	WPY0070927 Whirlpool Microwave Clip
10	Switch, Burner
11	Module, Spark
13	Bracket, Spark Module
14	786324 Whirlpool Flat Igniter
16	Receptacle
17	Plug, 3-Pin
20	Holder, Fuse
22	Fuse, 5 AMP
23	Switch, Aux. Light
25	Insulation, Door Switch (2)
26	Socket, Oven Lamp
28	RANGE ONLY 40W 120V APPL BULB
29	Housing, Oven Light
31	Retainer, Insulation
32	Lens, Oven Light
34	Retainer, Oven Light Lens
35	Gasket, Oven Light
37	Ballast
38	Connector, 3- Circuit
40	Cap, 9 Pin Connector
41	Plug, 9 Pin Connector
43	Receptacle, 1 Circuit
44	Starter, Fluorescent
46	Plug, 2 Circuit
47	Socket, Starter
49	Support Bracket, Socket
50	Lamp, Flourescent
52	Lampholder Fluorescent
54	Insulator, Control (2)
55	Bracket, Bake Ignitor
56	Bracket, Broiler Ignitor
