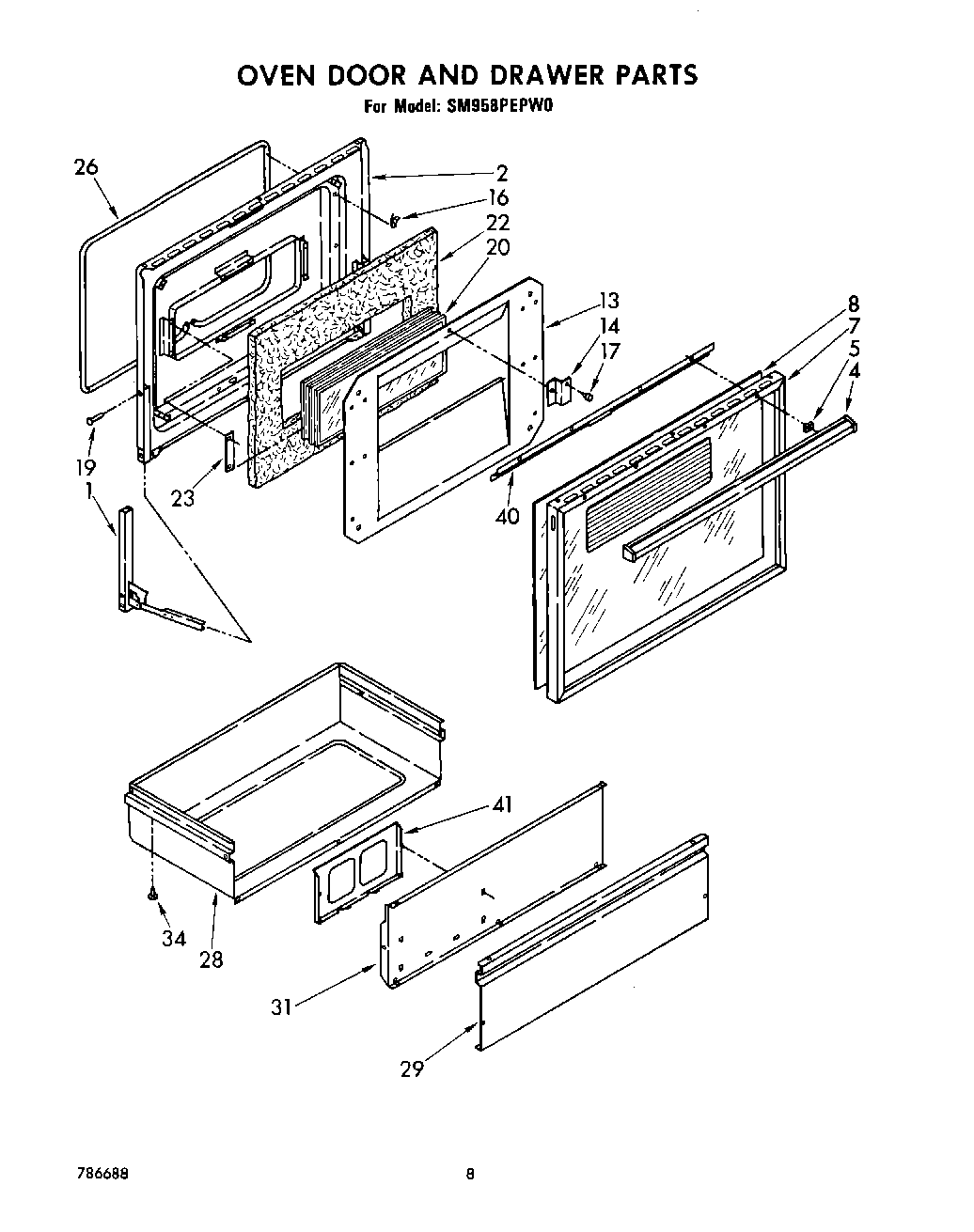

SM958PEPW0 06 – OVEN DOOR AND DRAWER

Products

Position	Product
1	Hinge, Oven Door (R.H.)
1	Hinge, Oven Door (Left Side)
2	WP965173 Whirlpool Dishwasher Screw
2	WP488130 Whirlpool Air Conditioner Nut
2	Liner, Oven Door
2	WP308685 Whirlpool Microwave Screw
2	Screw, 8-32 X 5/8 (4)
4	Handle
5	Spacer, Handle (2)
7	Frame
8	Panel, Black Glass
13	Retainer, Insulation
14	bracket, glass support (4)
16	Clip, Speed (14)
17	Bumper Window (5)
19	Pin, Hinge (2)
20	Window Assembly
22	WPW10208653 Whirlpool Insulation
23	Retainer, Window (4)
26	Gasket Assembly
28	Wrapper, Storage Draw
29	Panel, Drawer (White)
29	Panel, Drawer (Almond)
29	Panel, Drawer (Toast)
29	Panel, Drawer (Platinum)
31	Liner, Door Panel
34	Rivet, Plastic (4)
40	Baffle, Air
41	Rack, Literature
