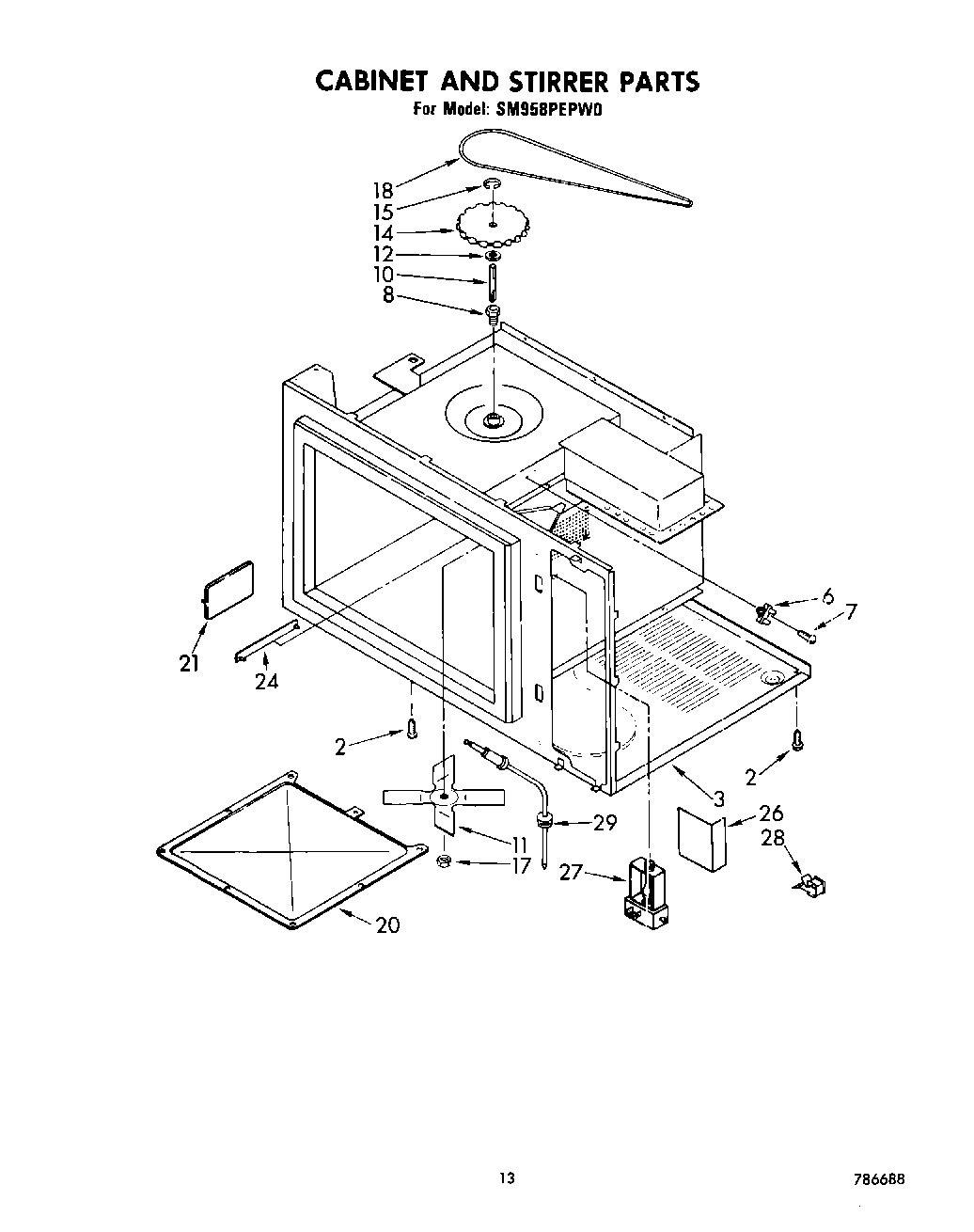

SM958PEPW0 10 – CABINET AND STIRRER

Products

Position	Product
2	WP308685 Whirlpool Microwave Screw
3	Base, Cabinet (Not Serviceable)
6	Thermal Fuse (Includes Illus.7)
7	screw
8	Bushing, Stirrer
10	Shaft, Stirrer
11	Stirrer Blade
12	Washer, Nylon
14	Pulley, Stirrer Blade
15	“E“ Ring
17	WP487939 Whirlpool Refrigerator Nut
18	Belt, Drive
20	Stirrer Cover
24	Cover, Rivet
26	Shield, Exhaust Probe
27	Jack, Probe
28	Screw, 11-16 x 1/2 Double Load Space Thread (5)
28	Clip, Harness
29	(Alt.)
29	Probe, Temperature
29	(Alt.)
