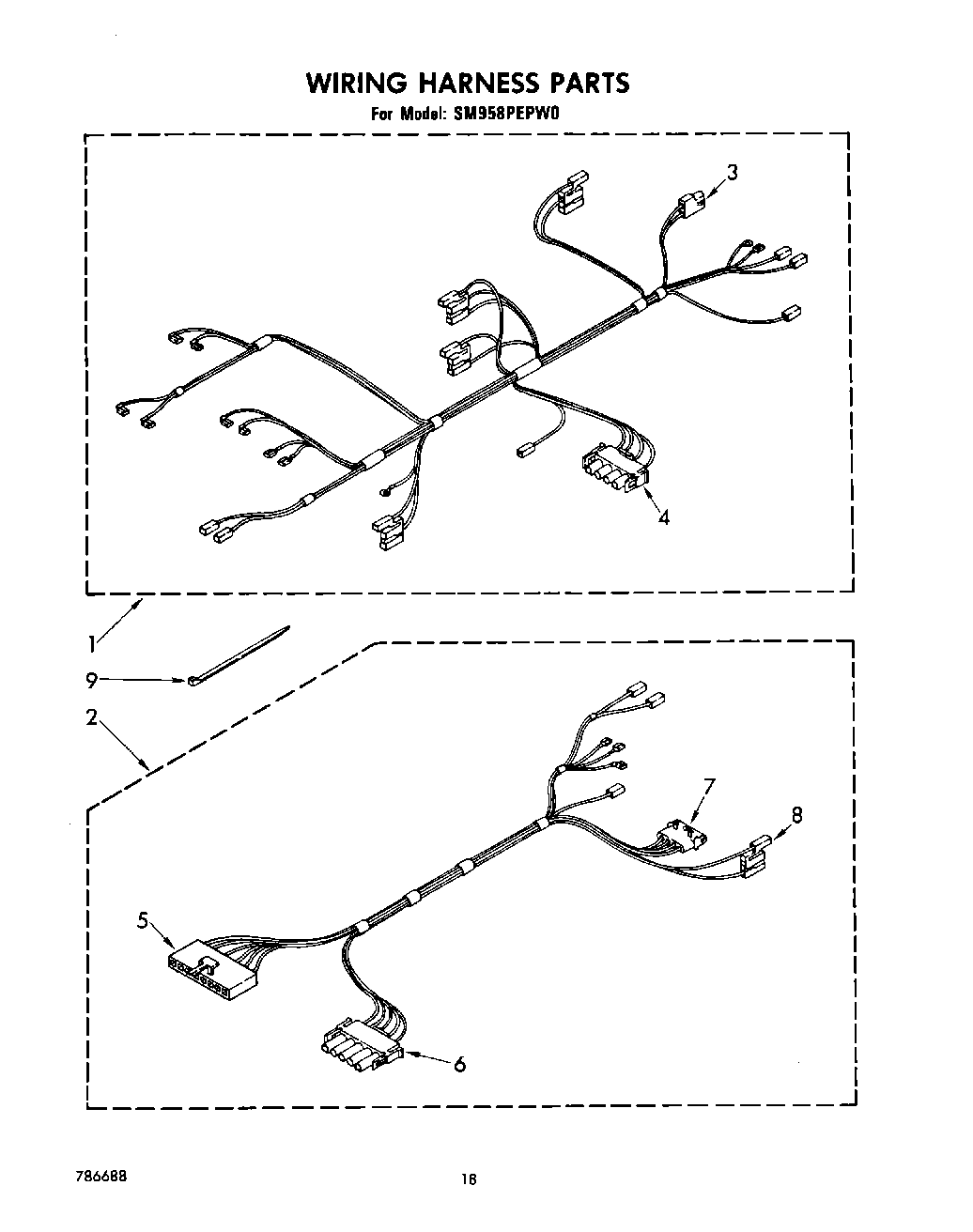

SM958PEPW0 13 – WIRING HARNESS, LIT/OPTIONAL

Products

Position	Product
	List, Repair Parts
	Guide, Use & Care (Range)
	WPL LIT786301
	WPL LIT312880
	Guide, Cooking
1	Harness, Wiring (Main)
1	Screw, 80 x 5/16
2	Harness, Wiring (Control)
3	Receptacle, Latching (2-Way) (Uses Terminal 94614)
4	Disconnect Block (4 Terminal)
5	Connector Housing
6	WPL 311574
7	Disconnect Block, Female
8	Housing, Plug
9	Wire, 25“ Roll (White 14 GA.)
9	Wire, 25` Roll (Red 14 Ga.)
9	WPW10339879 Whirlpool Wire Tie
9	WP482338 Whirlpool Refrigerator Adhesive
9	242831 Whirlpool Oven Wire
9	Wire, 25` Roll (Black 14 Ga.)
9	Wire (14 Ga. 150 c Blue)
9	261900 Whirlpool Microwave Spray
9	Wire (14 Ga. 150 c Brown)
9	Wire (14 Ga. 150 c Green)
9	Wire (14 Ga. 150 c Orange)
9	Wire (14 Ga. 150 c Yellow)
9	Wire (12 Ga. 150 c Black)
9	18 Ga. 80~c Rating (Red)
9	WP261869 Whirlpool Microwave Paint
9	1
9	WPL 591014
9	Wire (14 Ga. 200 c Brown)
