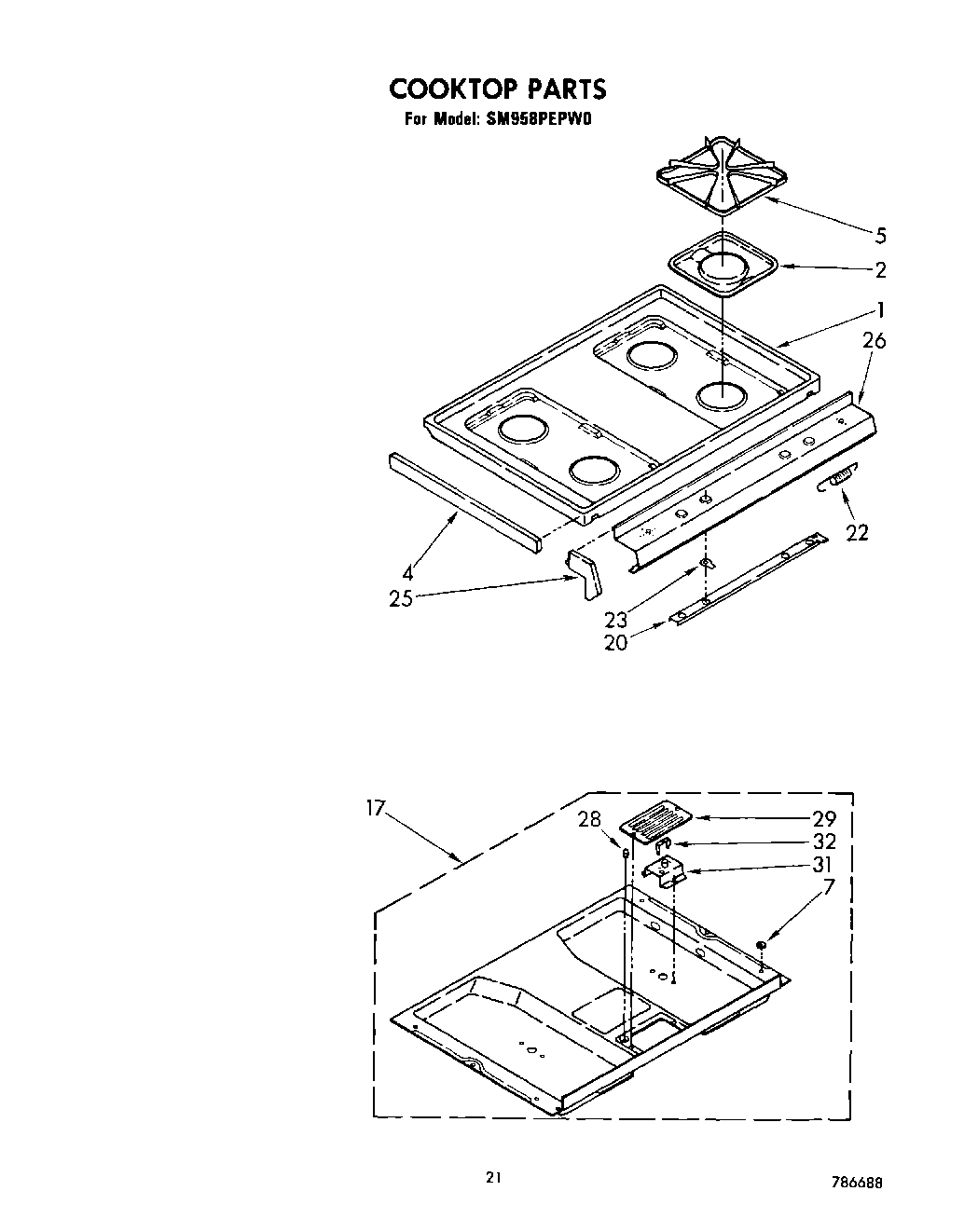

SM958PEPW0 15 – COOKTOP

Products

PositionProduct
1Top, Main (Toast)
1Top, Main (Platinum)
1top, main (almond)
1top, main (white)
2WP786333 Whirlpool Drip Bowl
4Trim, Main Top (Right Side)
4Trim, Main Top (Left Side)
5Grate, Top Burner
7Spacer, Nylon (4)
17Burner Box
20Actuator, Spark Ignitor
22Spring
23Cam (4)
25End Cap (Right)
25End Cap (Left)
26Panel, Control
28Orifice
29Plate, Cover
31Bracket, Top (2)
32Bracket, Electrode (2)
