SM958PEPW1 04 – MANIFOLD

SM958PEPW1 04 – MANIFOLD

Written by

in

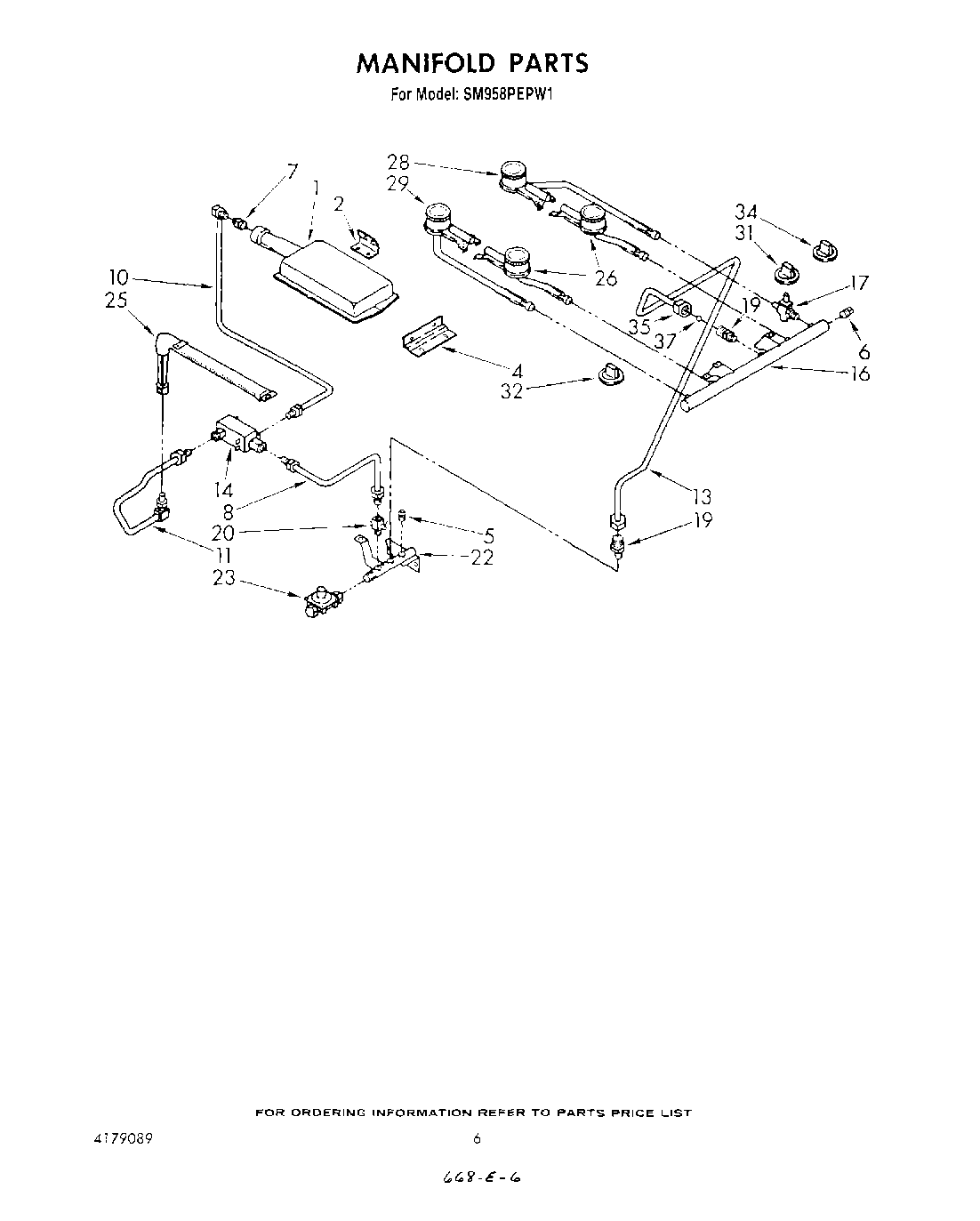

SM958PEPW1 04 – MANIFOLD

Products

PositionProduct
1Burner, Ultra Ray Broiler
2Bracket, Ignitor
4Bracket, Burner Mounting
5W10295523 Whirlpool Plug
6Pipe Plug, 3/8 NPT
7LP Gas No. 58
7Orifice (No.50 Nat. Gas)
8Tubing (Inlet To Gas Valve)
10Orifice & Tubing Assembly (Gas Valve To Ultra Ray Burner)
11Hood & Tubing Assembly (Gas Valve To Lower Oven Burner)
13Tubing (Inlet To Manifold)
14Valve, Dual Gas Valve
16Manifold
17Valve, Top Burner (Tri-Set)
19Fitting
20Valve, Shut-Off
22Inlet
23Regulator, Pressure
25Oven Burner, Lower
26Top Burner, Front (2)
28Top Burner, R.R.
29Top Burner, L.R.
31Knob, Top Burner (4)
32Knob, Oven Control
34Knob, Selector
35Nut, Compression 3/8
37Sleeve, Compression 3/8
