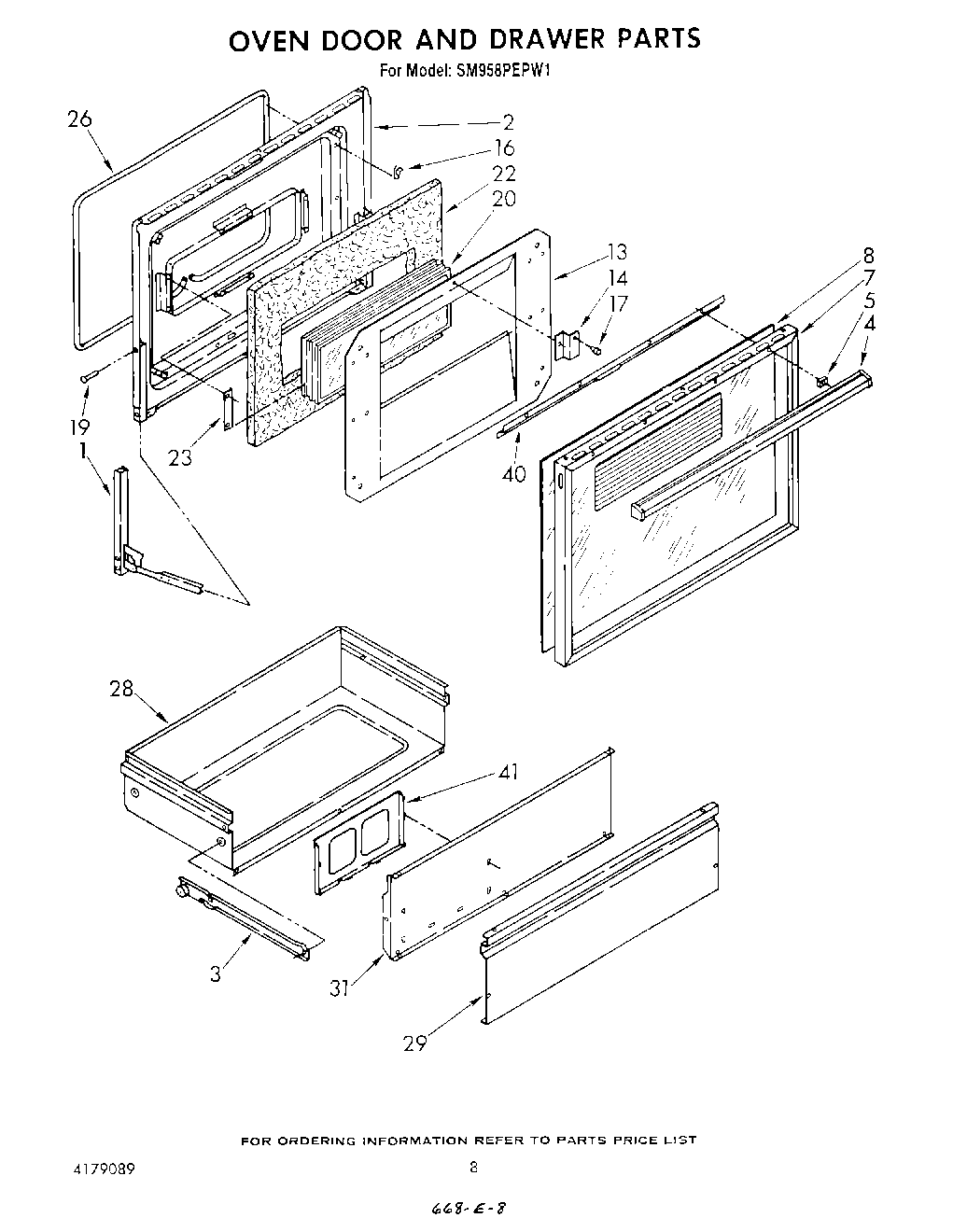

SM958PEPW1 06 – OVEN DOOR AND DRAWER

Products

Position	Product
1	Hinge, Oven Door (Left Side)
1	Hinge, Oven Door (R.H.)
2	WP965173 Whirlpool Dishwasher Screw
2	Screw, 8-32 X 5/8 (4)
2	WP308685 Whirlpool Microwave Screw
2	Liner, Oven Door
2	WP488130 Whirlpool Air Conditioner Nut
3	runner (R.H.)
3	Runner (L.H.)
4	Handle
5	Spacer, Handle (2)
7	Frame
8	Panel, Black Glass
13	Retainer, Insulation
14	bracket, glass support (4)
16	Clip, Speed (14)
17	Bumper Window (5)
19	Pin, Hinge (2)
20	Window Assembly
22	WPW10208653 Whirlpool Insulation
23	Retainer, Window (4)
26	Gasket Assembly
28	Wrapper, Storage Drawer
29	Panel, Drawer (Platinum)
29	Panel, Drawer (Toast)
29	Panel, Drawer (Almond)
29	Panel, Drawer (White)
31	Liner, Door Panel
40	Baffle, Air
41	Rack, Literature
