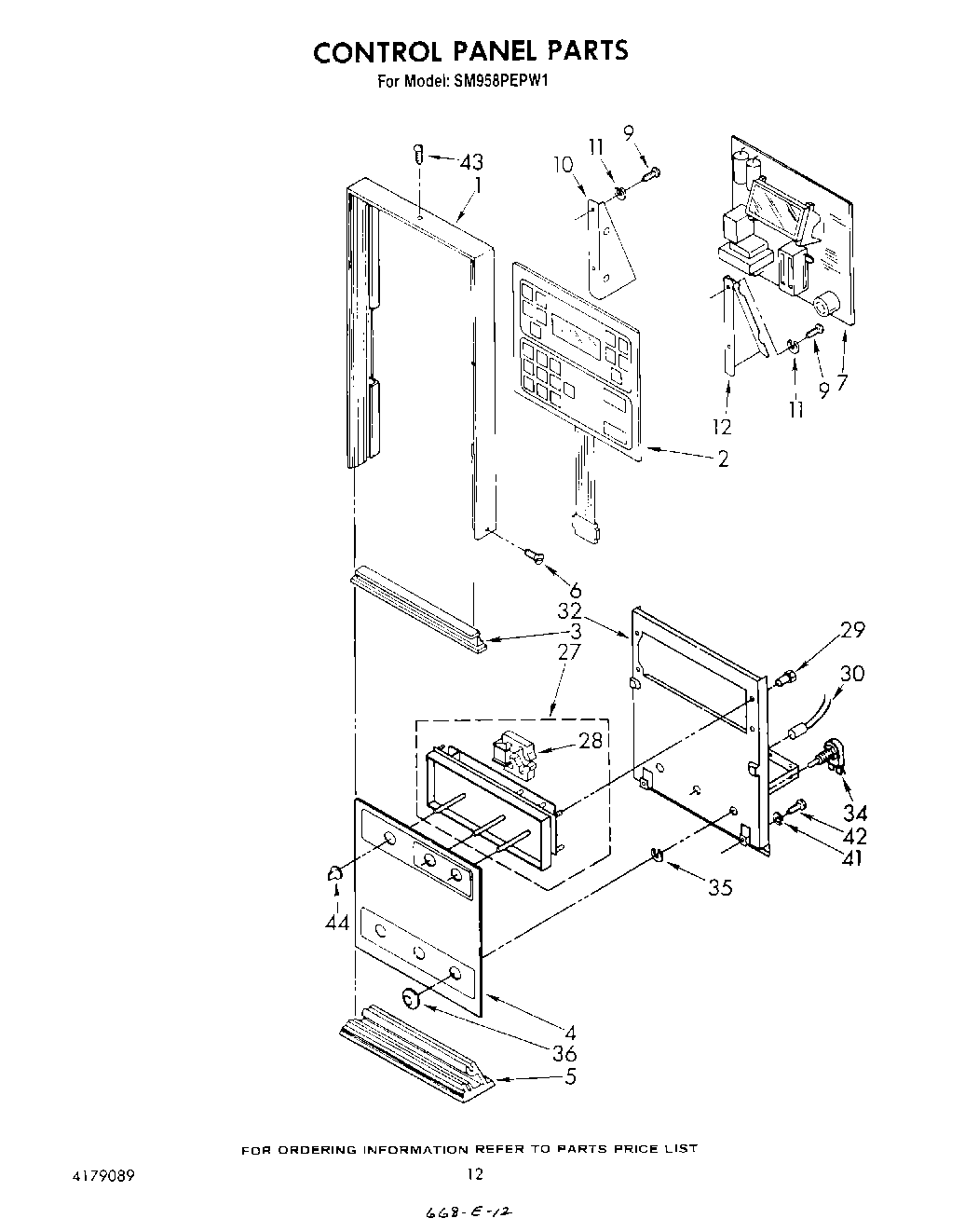

SM958PEPW1 08 – CONTROL PANELadmin2025-04-26T11:24:07+00:00SM958PEPW1 08 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Frame, Control Panel |
| 2 | Membrane, Switch |
| 3 | Splice Panel |
| 4 | Glass, Control Panel |
| 4 | Support-Top Burner |
| 5 | Bottom Cap, Control Panel |
| 6 | NAMEPLATE |
| 7 | Board, Power Control |
| 10 | Bracket, P.C. Board |
| 12 | Bracket, P.C. Board |
| 27 | Timer, Auto (Includes Illus. 28) |
| 28 | Motor, Timer |
| 29 | Nut, Aluminum (4) |
| 30 | Indicator Light |
| 32 | Bracket, Control Mounting |
| 32 | SCREW |
| 34 | Switch, Oven Light (2) |
| 35 | Lockwasher |
| 36 | WP308605 Whirlpool Refrigerator Clamp |
| 36 | Bezel Switch (1) |
| 36 | WP965173 Whirlpool Dishwasher Screw |
| 41 | Lockwasher |
| 42 | WP313808 Whirlpool Screw |
| 43 | Screw |
| 44 | WP3169181 Whirlpool Knob |
