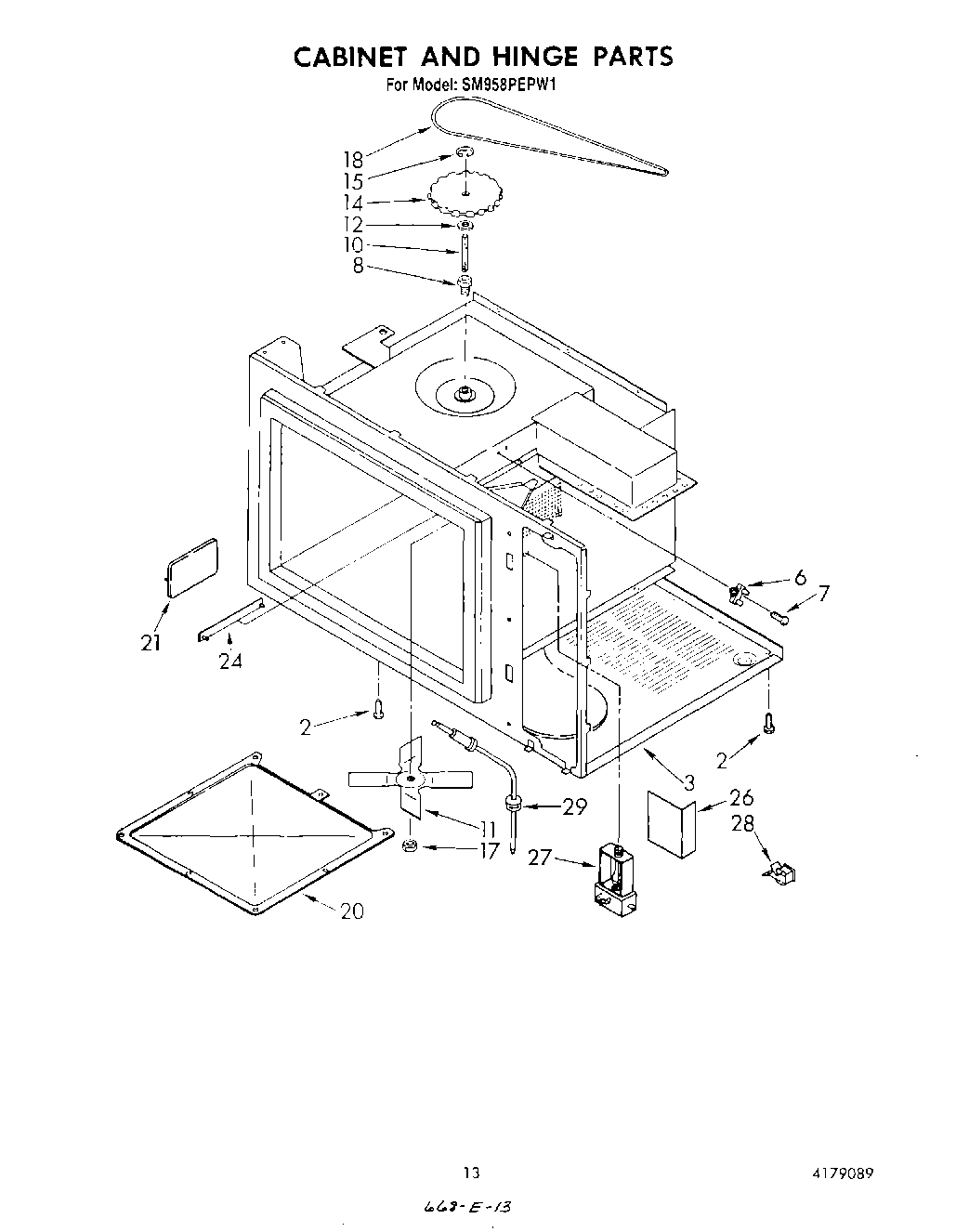

SM958PEPW1 09 – CABINET AND HINGEadmin2025-04-26T11:24:46+00:00SM958PEPW1 09 – CABINET AND HINGE
Products
| Position | Product |
|---|
| 2 | WP308685 Whirlpool Microwave Screw |
| 3 | Base, Cabinet (Not Serviceable) |
| 6 | Thermal Fuse (Includes Illus.7) |
| 7 | screw |
| 8 | Bushing, Stirrer |
| 10 | Shaft, Stirrer |
| 11 | Stirrer Blade |
| 12 | Washer, Nylon |
| 14 | Pulley, Stirrer Blade |
| 15 | ``E`` Ring |
| 17 | WP487939 Whirlpool Refrigerator Nut |
| 18 | Belt, Drive |
| 20 | Stirrer Cover |
| 24 | Cover, Rivet |
| 26 | Shield, Exhaust Probe |
| 27 | Jack, Probe |
| 28 | Screw, 11-16 x 1/2 Double Load Space Thread (5) |
| 28 | Clip, Harness |
| 29 | (Alt.) |
| 29 | Probe, Temperature |
| 29 | (Alt.) |
