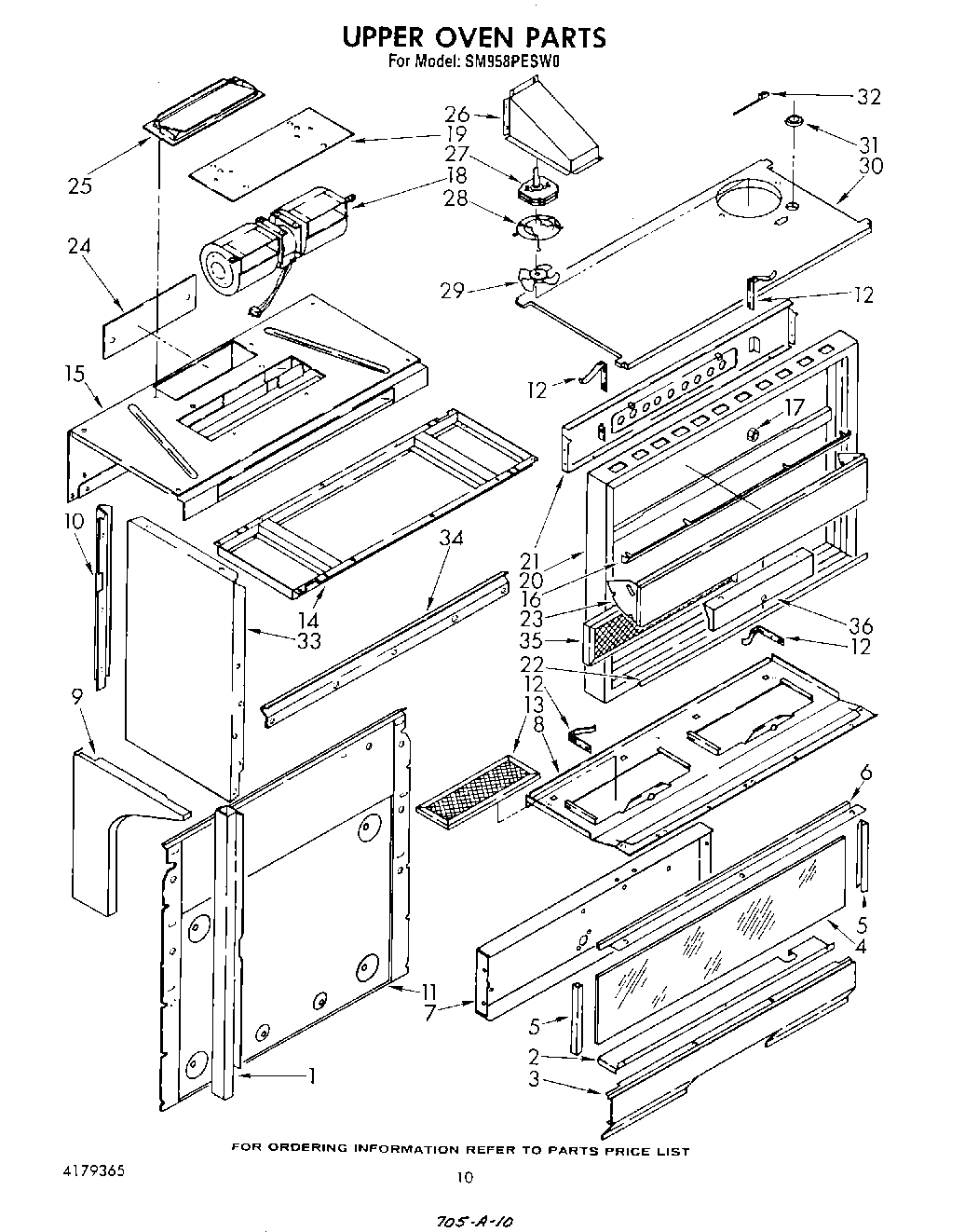

SM958PESW0 07 – UPPER OVEN

Products

Position	Product
1	Support, Upper Oven (R.H.)
1	Support, Upper Oven (L.H.)
2	Shield, Heat
3	Trim, Lower
4	Glass, Splashplate
5	Trim, Glass
6	Trim, Rear
7	Panel, Surface Light
8	Channel, Rubber (4)
8	Seal, Foam
8	Panel, Bottom
9	Support, Side (L.H.) (Almond)
9	Support, Side (L.H.) (Almond)
9	Support, Side (L.H.) (White)
9	Support, Side (L.H.) (White)
10	Spacer, Wall (R.H.)
11	Panel, Cover
13	Filter, Mesh (2)
14	Support, Frame
15	Top Panel
16	Deflector, Air
17	Nut (3)
18	Blower, Exhaust
19	Nut (6)
19	Cover, Access
20	Screw, 8-32 x 1/2 (4)
20	Frame
21	WPL 3147764
21	WPL 3147751
21	WPL 3147596
21	WPL 3147595
21	WPL 3147858
21	Panel, Vent Door
21	Rivet, Plastic (2)
21	Screw, Schoulder (2)
22	WP313808 Whirlpool Screw
22	Handle, Vent Door
23	WPL 3170269
24	WPL 3147726
25	WPL 3147843
26	Flue, Air
27	Motor, Fan
27	Nut, Hex 6-32 (2)
28	Mount, Fan Motor
28	WP488729 Whirlpool Refrigerator Door Screw
29	Blade, Fan
30	Separator, Air
30	WPL 3147590
31	Bushing, Snap
32	WPW10339879 Whirlpool Wire Tie
33	Side Panel L.H. (Seal, Foam (2))
33	Side Panel L.H. (Almond)
33	WPL 3147148
33	Side Panel, L.H. (Almond)
33	Side Panel, L.H. (White)
33	Side Panel L.H. (White)
33	Side Panel, L.H. (Seal, Foam (2) Side Panel, R.H.)
33	SCREW
33	WPL 3147146
33	WPL 3147147
33	WPL 3147149
33	WP488627 Whirlpool Refrigerator Screw
34	WPL 4179343
35	WPL 3147525
35	WPL 3147607
36	WPL 4179342
