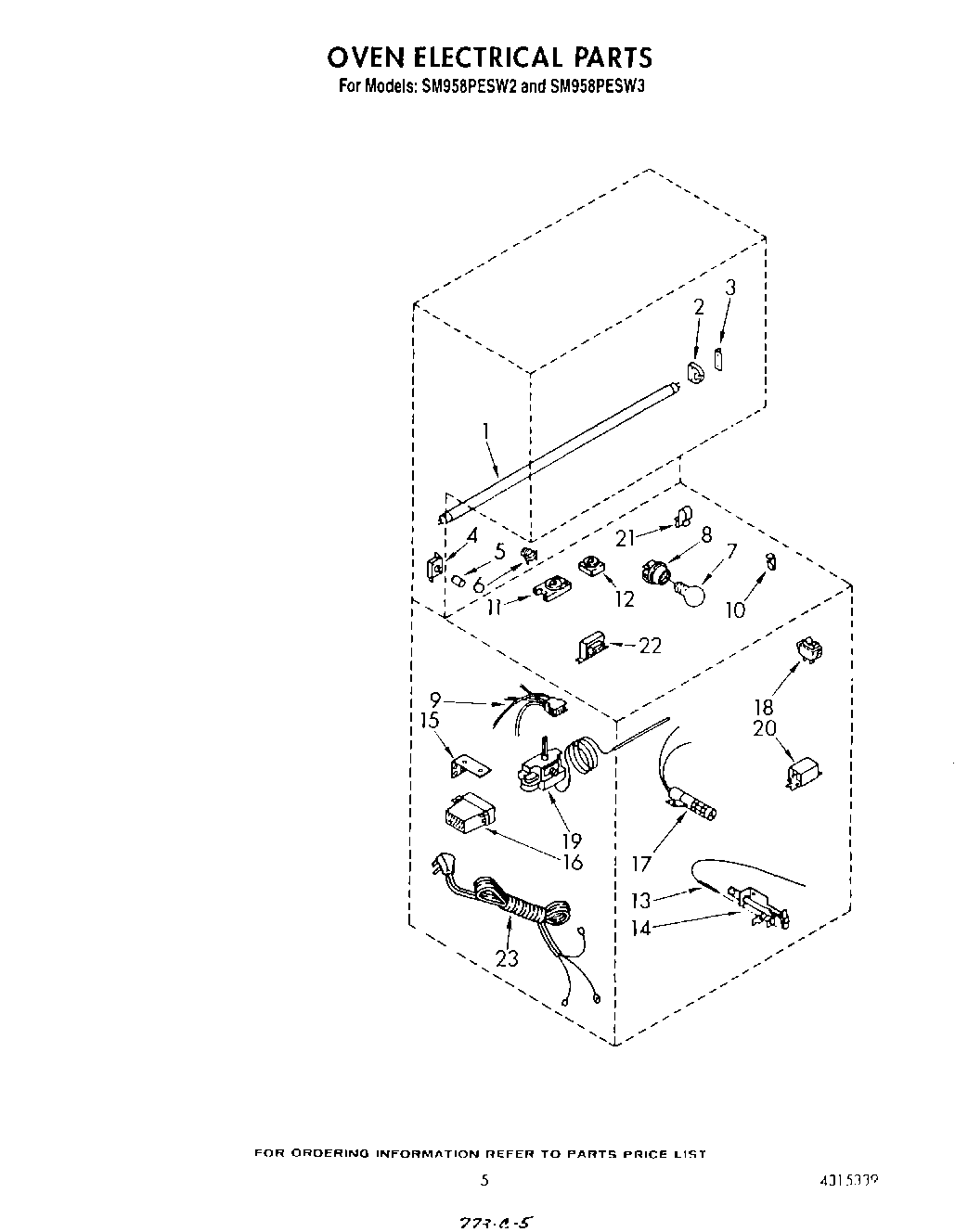

SM958PESW2 04 – OVEN ELECTRICAL

Products

Position	Product
1	WP95292 Whirlpool Fluorescent Light Bulb
2	Socket, Light (2)
3	Support Bracket, Socket
4	Socket, Starter
5	Starter, Light
6	Strain Relief
7	RANGE ONLY 40W 120V APPL BULB
8	Receptacle, Light
9	Block, Disconnect
10	Clip, Wire
11	WP878009 Whirlpool Igniter Switch
12	WP4157180 Whirlpool Surface Burner Ignition Switch
13	Ignitor, Oven
14	Pilot
15	Plate, Spark Module
16	Spark Module
17	Ignitor (L.H.)
17	Ignitor (R.H.)
18	Switch, Oven Light (2)
19	Thermostat (Includes Ill. No. 45)
20	Relay
21	Clip, Wire (4) (Light Housing)
22	Ballast
23	Cord, Power
