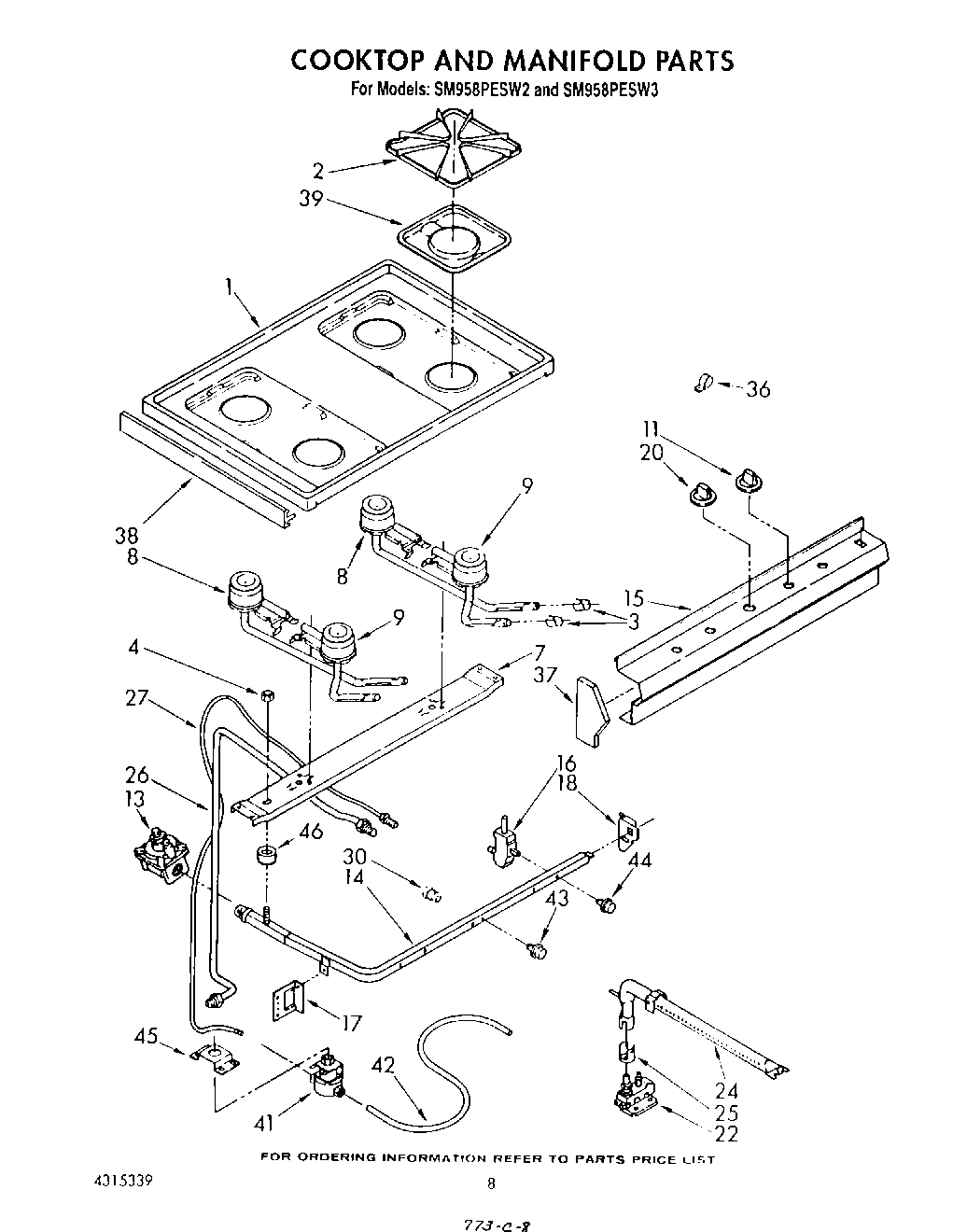

SM958PESW2 06 – COOK TOP AND MANIFOLD

Products

PositionProduct
1Cooktop (Almond)
1Cooktop (White)
2Grate (4)
3Shutter, Air (4)
4Nut, Hex
7Support, Burner
8Burner, Rear (2)
9Screw, 10-12 X 3/8 (2)
9Burner, Front (2)
11WP4179282 Whirlpool Knob
13Regulator, Pressure
14Manifold
15Panel, Manifold
16Valve, 180~ (4) (Includes Ill. No. 46)
17Support, Manifold (L.H.)
18Support, Manifold (R.H.)
18WP308685 Whirlpool Microwave Screw
20WPY07506601 Whirlpool Thermal Knob
22WP3387230 Whirlpool Screw
22Valve, Safety
24Burner, Oven
25Shutter, Burner
26Tubing 3/8“ (Thermostat To Safety Valve)
27Tubing, (Thermostat To Solenoid)
30W10295523 Whirlpool Plug
36Strain Relief
37Endcap (R.H.)
37Endcap (L.H.)
38Trim, Cooktop (L.H.)
38Trim, Cooktop (R.H.)
39WP786333 Whirlpool Drip Bowl
41Valve, Solenoid
42Tubing, (Solenoid to Burner Pilot)
43Bolt, Thermostat Mounting (2)
44Bolt, Valve Mounting
45Bracket, Solenoid
46Spacer, Manifold
