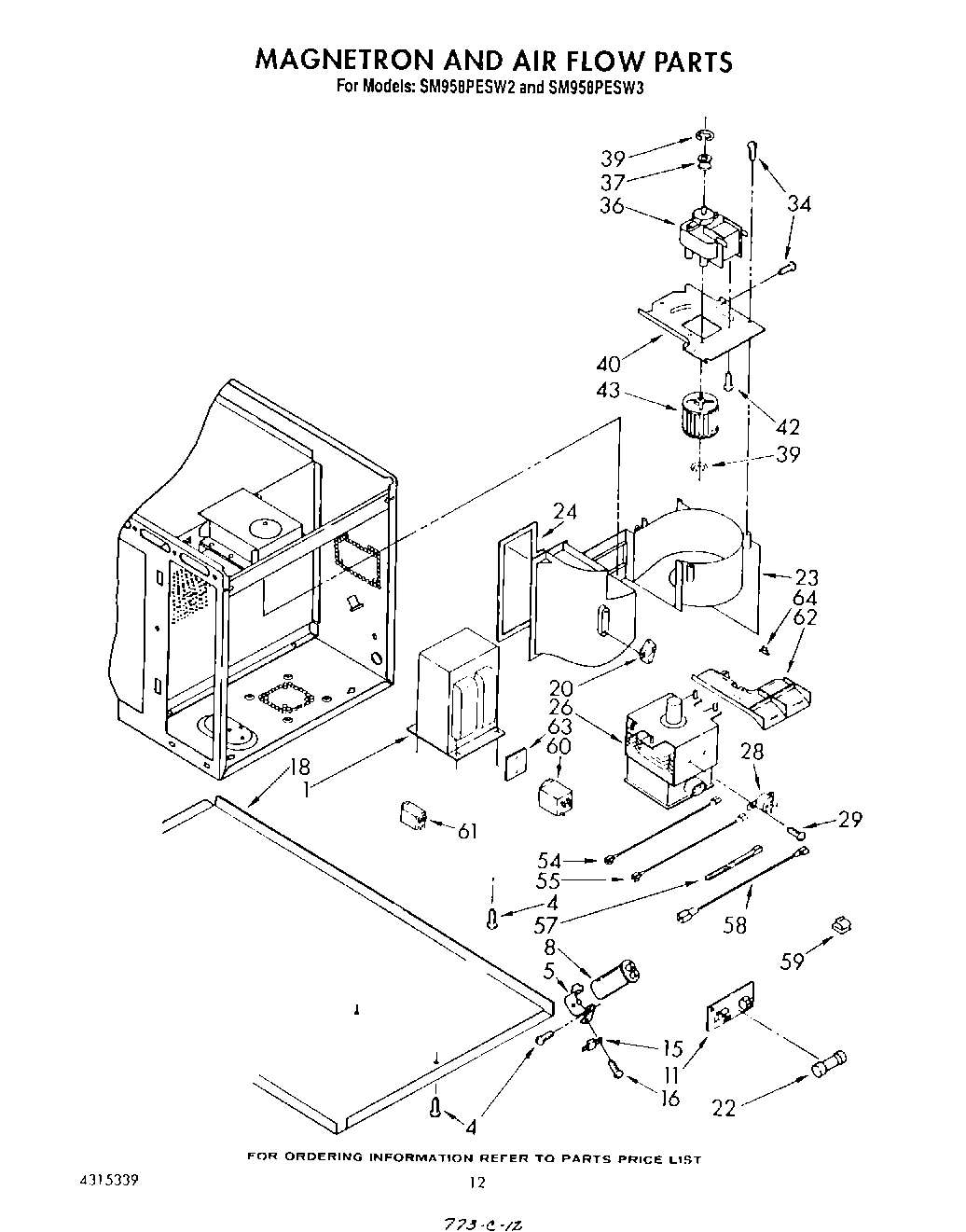

SM958PESW2 08 – MAGNETRON AND AIRFLOW

Products

Position	Product
1	Transformer (Alt.)
1	Transformer
1	Transformer
4	Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
5	Bracket, Capacitor
8	Capacitor
8	capacitor (alt.)
8	Capacitor (Alt.)
11	4454949 Whirlpool Oven Fuse Block
15	Rectifier, High Voltage
16	screw
18	Base, Chassis (Not Serviceable)
20	Thermostat
20	Screw
22	WPW10017410 Whirlpool Fuse
23	Air Duct (Horizontal)
24	Seal, Air Duct
26	Magnetron (Alt.)
26	Magnetron (Alt.)
26	Magnetron (Alt.)
26	Magnetron (Alt.)
26	Magnetron
26	Magnetron (Alt.)
28	Thermal Protector (Alt.)
28	Thermal Protector (Alt.)
28	Thermal Protector
29	Screw, 6A x 3/8 (2)
34	Screw, 11-16 x 1/2 Double Load Space Thread (5)
36	Transmotor
37	Pulley, Motor
39	“E“ Ring
40	Bracket, Motor
42	WP486579 Whirlpool Air Conditioner Screw
43	Wheel, Blower
54	Jumper, High Voltage Black 6-5/16“
55	Jumper, High Voltage Red (6-5/16“)
57	WPW10339879 Whirlpool Wire Tie
58	High Voltage Lead, Gray 6-3/4“ (2)
59	Clip
60	Relay, Vent (24V, Clear)
61	697811 Whirlpool Relay
62	Extension, Air Duct
63	Insulator, Power Relay
64	Screw
64	Thermostat, Fixed
