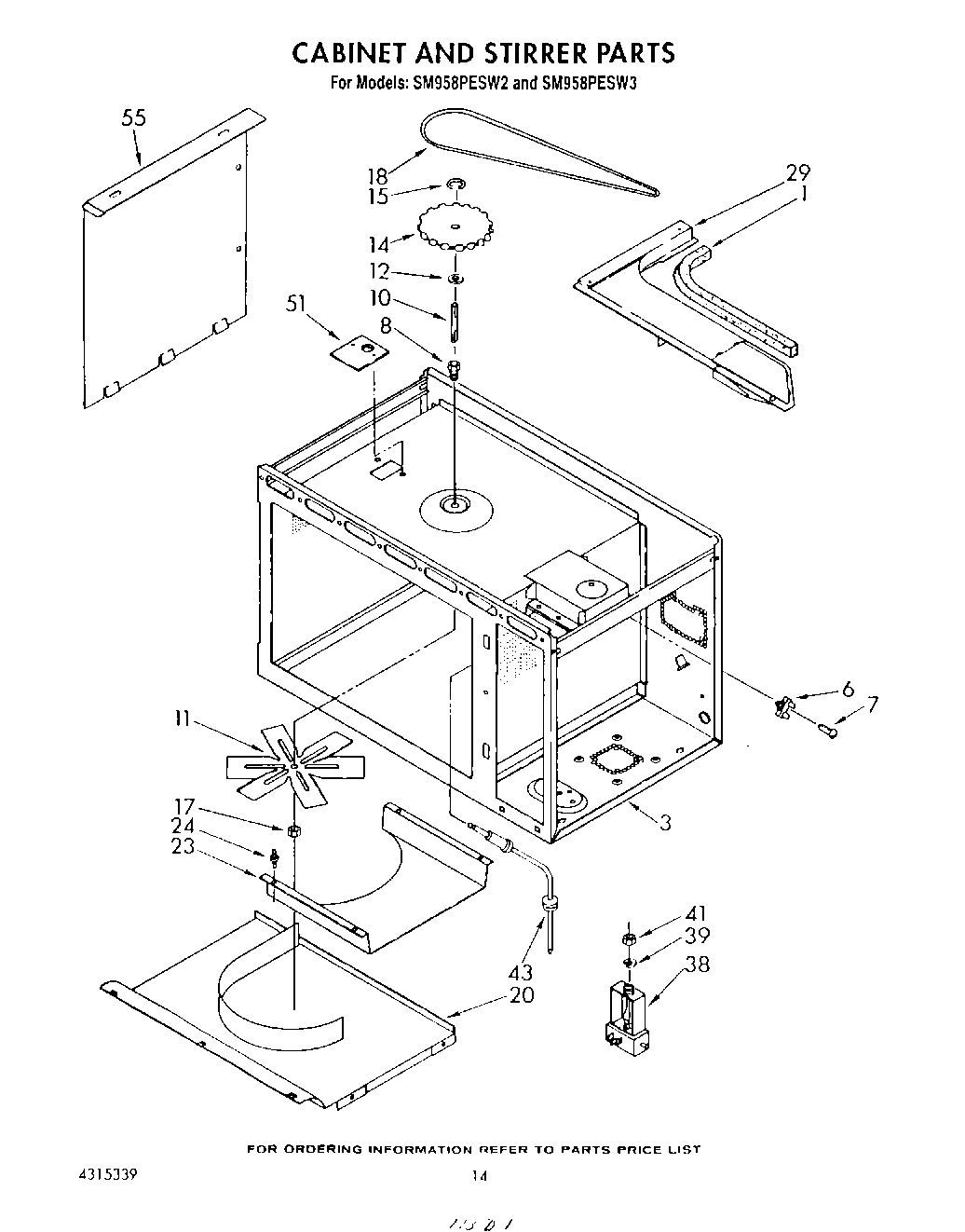

SM958PESW3 09 – CABINET AND STIRRER

Products

Position	Product
1	Seal, Foam
3	Base, Cabinet (Not Serviceable)
6	Fuse, Thermal
7	screw
8	Bushing, Stirrer
10	Shaft, Stirrer
11	Stirrer Blade
12	Washer, Nylon
14	Pulley, Stirrer Blade
15	“E“ Ring
17	WP487939 Whirlpool Refrigerator Nut
18	WP313646 Whirlpool Microwave Drive Belt
20	Fastener (4)
20	Silicone Rubber Gasket
23	Plate, Tuning
24	Support (4)
29	Seal, Foam
29	Baffle, Air Exhaust
38	Jack, Probe
39	Washer, Internal Lock
41	Nut
43	(Alt.)
51	Cover, Light
51	SCREW
55	Cover, Side
55	screw, 8-32 x 1/2 (3)
