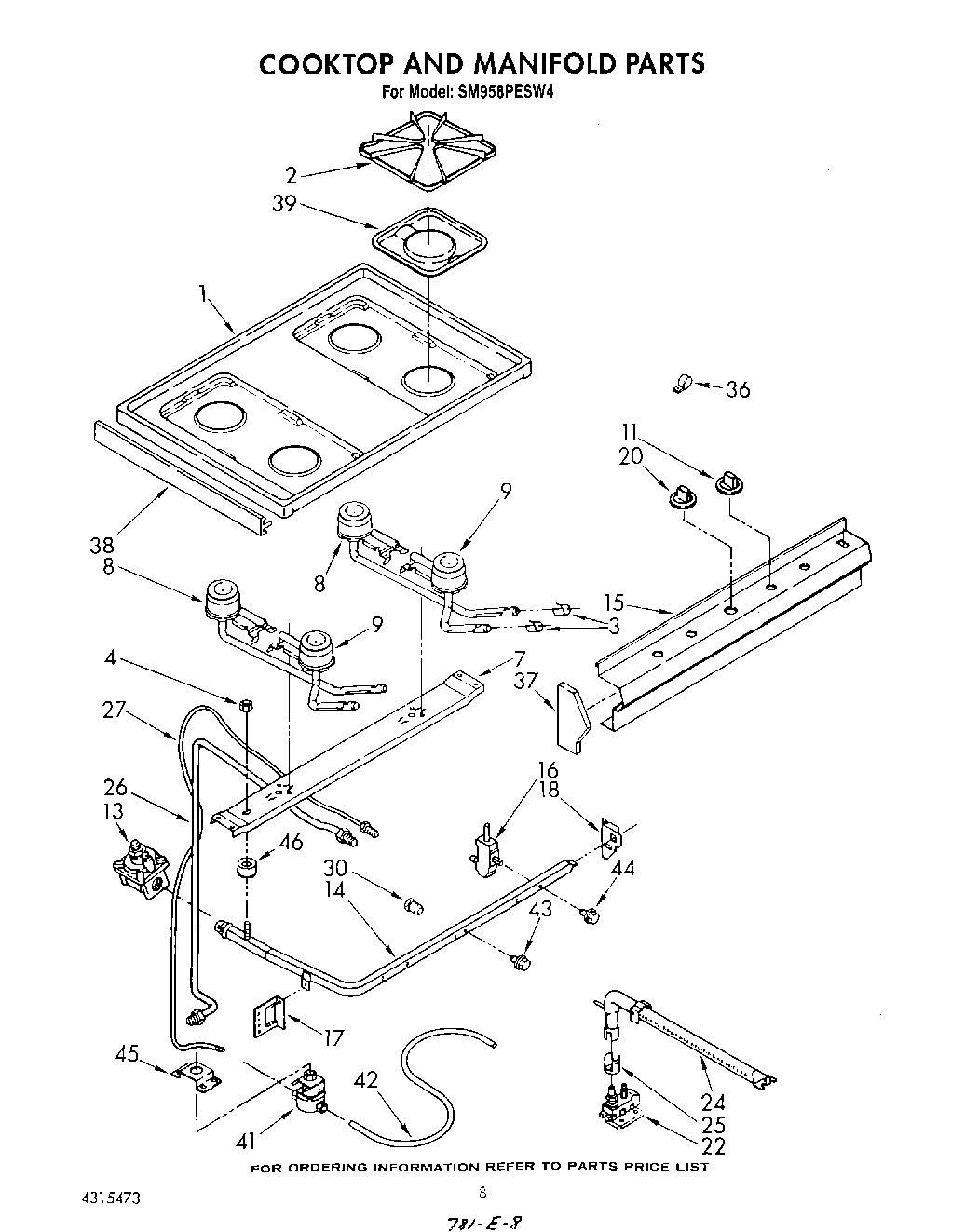

SM958PESW4 06 – COOKTOP AND MANIFOLD

Products

Position	Product
1	Cooktop (Almond)
1	Cooktop (White)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
7	Support, Burner
8	Burner, Rear (2)
9	Screw, 10-12 X 3/8 (2)
9	Burner, Front (2)
11	WP4179282 Whirlpool Knob
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 180~ (4) (Includes Ill. No. 46)
17	Support, Manifold (L.H.)
18	Support, Manifold (R.H.)
18	WP308685 Whirlpool Microwave Screw
20	WPY07506601 Whirlpool Thermal Knob
22	WP3387230 Whirlpool Screw
22	Valve, Safety
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing, (Thermostat To Solenoid)
30	W10295523 Whirlpool Plug
36	Strain Relief
37	Endcap (R.H.)
37	Endcap (L.H.)
38	Trim, Cooktop (L.H.)
38	Trim, Cooktop (R.H.)
39	WP786333 Whirlpool Drip Bowl
41	Valve, Solenoid
42	Tubing, (Solenoid to Burner Pilot)
43	Bolt, Thermostat Mounting (2)
44	Bolt, Valve Mounting
45	Bracket, Solenoid
46	Spacer, Manifold
