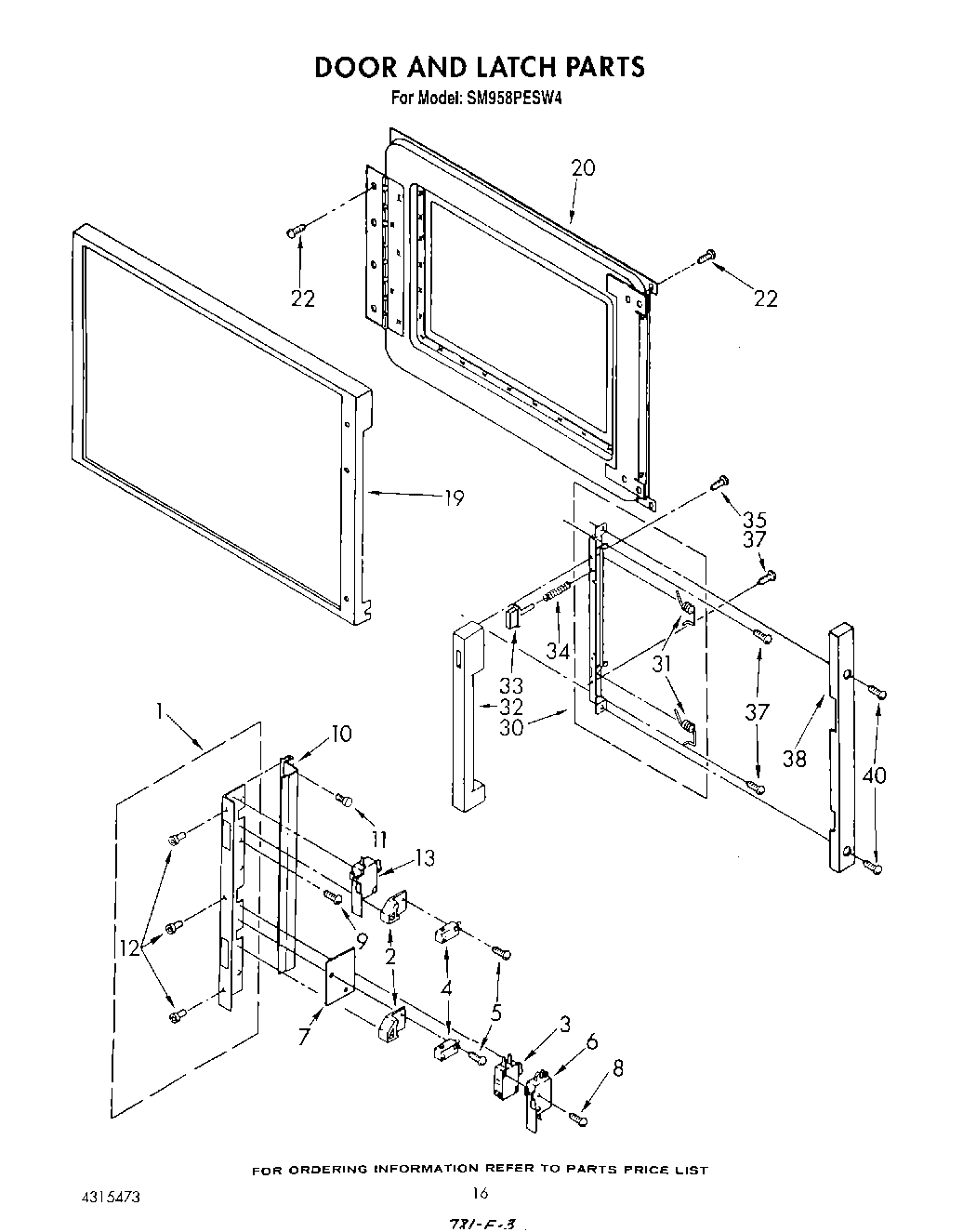

SM958PESW4 11 – DOOR AND LATCHadmin2025-04-26T11:24:50+00:00SM958PESW4 11 – DOOR AND LATCH
Products
| Position | Product |
|---|
| 1 | Bracket, Catch |
| 1 | screw |
| 2 | Catch (2) |
| 3 | Switch (Alt.) |
| 3 | Spring |
| 3 | Switch |
| 4 | 814037 Whirlpool Microwave Switch |
| 5 | WPL 312717 |
| 6 | Switch, Light Monitor (Alt.) |
| 6 | Switch, Light/ Monitor |
| 6 | Switch, Light Monitor (Alt.) |
| 7 | Insulator |
| 8 | Screw, 4-40 x 10 (2) |
| 9 | WPL 309080 |
| 10 | shield |
| 11 | Fastener (4) |
| 12 | Rivet, Pop (3) |
| 13 | Switch, Miniature |
| 19 | Frame, Door |
| 20 | Door, Inner |
| 22 | WPW10068250 Whirlpool Dishwasher Screw |
| 30 | Latch Assembly |
| 31 | Spring, Torsion (2) |
| 31 | 303776 Whirlpool Dishwasher Screw |
| 32 | Handle, Door |
| 33 | 313611 Whirlpool Microwave Door Button |
| 34 | Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65) |
| 35 | Screw (2) |
| 37 | WP489128 Whirlpool Refrigerator Screw |
| 38 | End Cap |
| 40 | Screw, 8-22 (5) |
