SM958PESW5 12 – WIRING HARNESS , LITERATURE AND OPTIONAL

Products

PositionProduct
Repair Parts List
Guide, Use & Care (Range)
Installation Instructions
Guide, Cooking
Cook
Guide, Use & Care (Microwave)

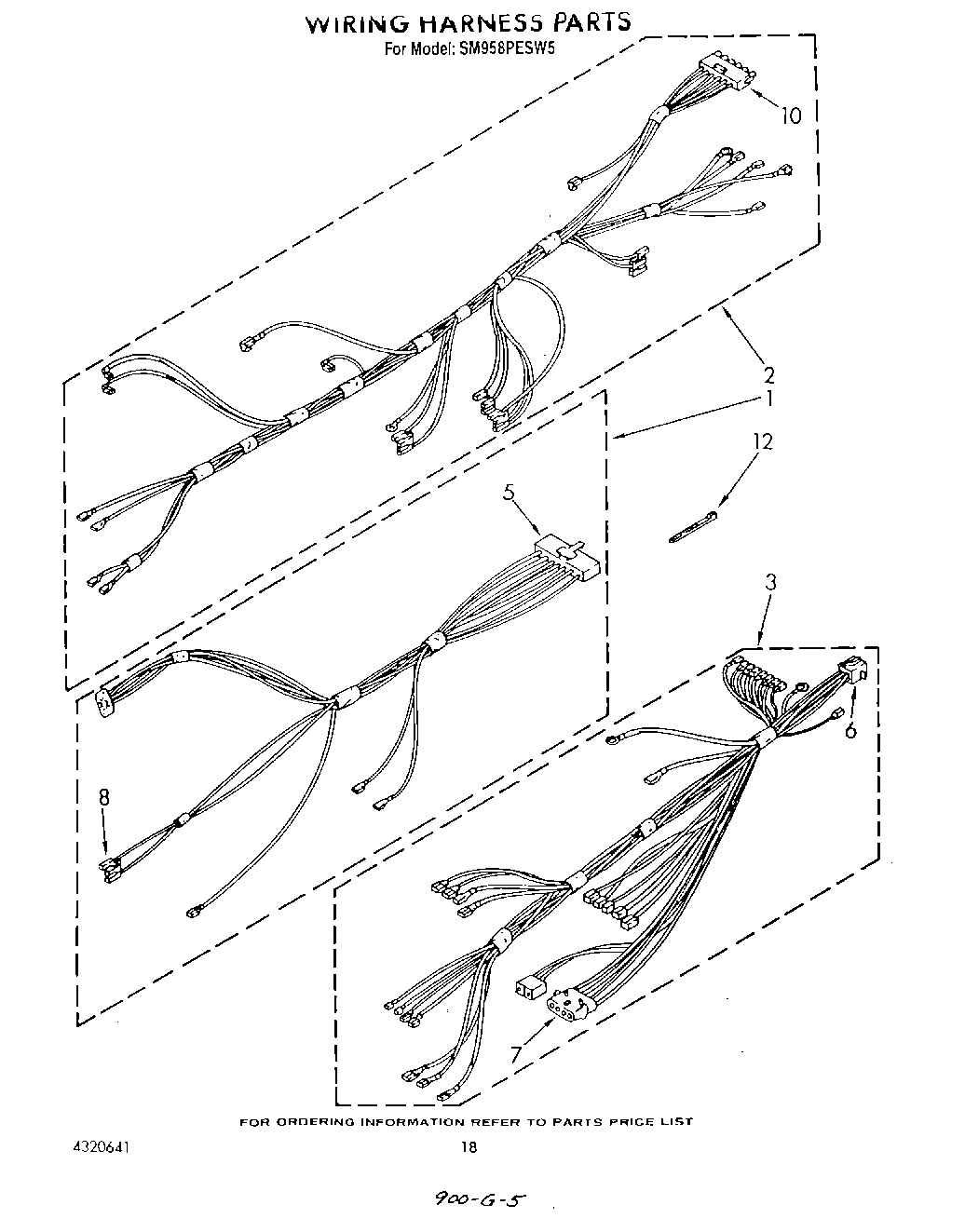

1Harness, Wiring (Control) Microwave
2Harness, Wiring (Main) Microwave
3Harness Wiring Vent Motor
5Connector, Housing
6Disconnect Block
7Disconnect Block, Female
8Housing, Plug
10WPL 311574
12Recirculating Kit
12261900 Whirlpool Microwave Spray
12WPL 591014
121
12Wire, 25` Roll (Red 14 Ga.)
12Wire, 25“ Roll (White 14 GA.)
12WPW10339879 Whirlpool Wire Tie
12WP482338 Whirlpool Refrigerator Adhesive
12242831 Whirlpool Oven Wire
12WP261869 Whirlpool Microwave Paint
12Wire (14 Ga. 150 c Blue)
12Wire (14 Ga. 150 c Brown)
12Wire (14 Ga. 150 c Green)
12Wire (14 Ga. 150 c Orange)
12Wire (14 Ga. 150 c Yellow)
12Wire (12 Ga. 150 c Black)
1218 Ga. 80~c Rating (Red)
12Wire (14 Ga. 200 c Brown)
12Wire, 25` Roll (Black 14 Ga.)
