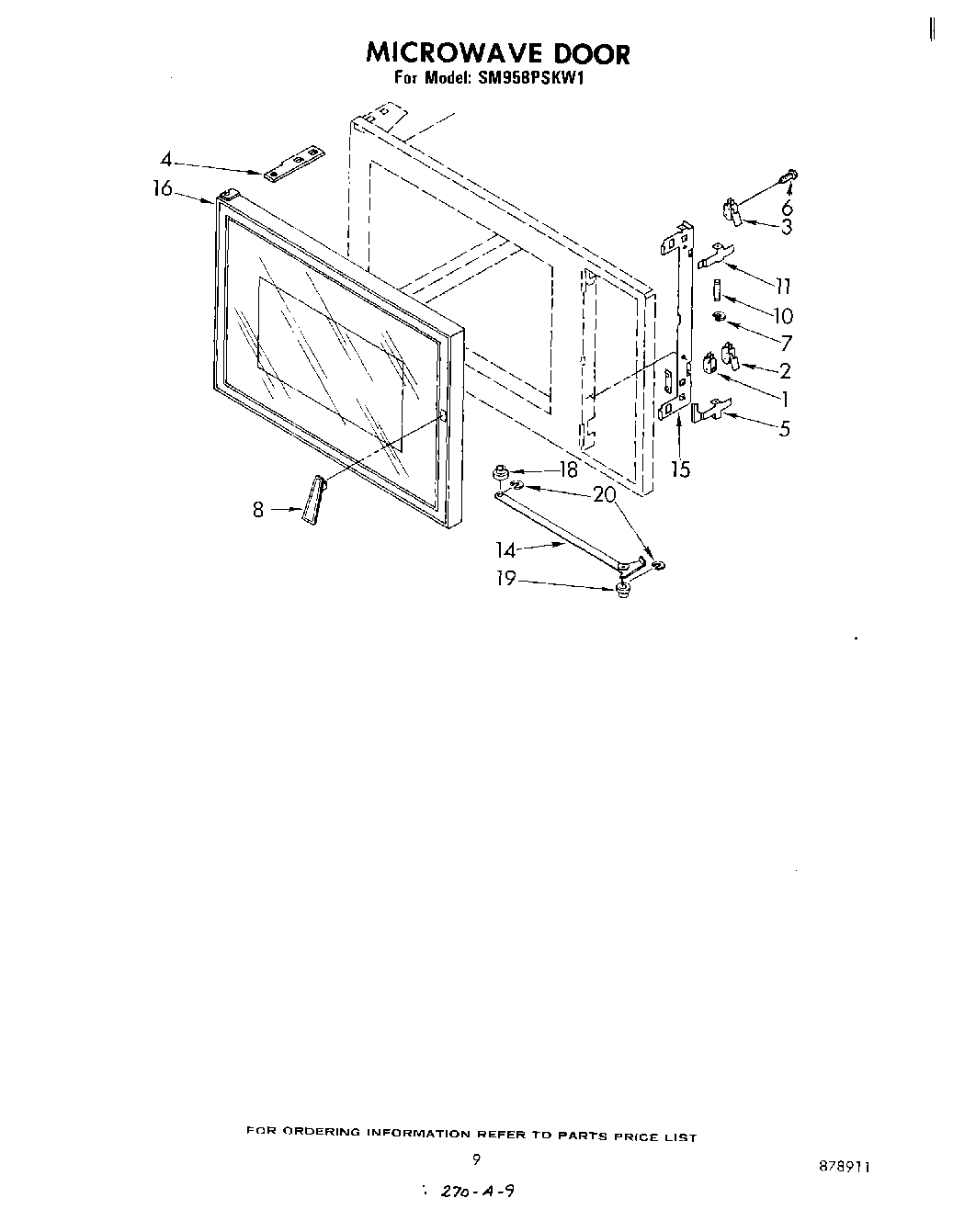

SM958PSKW1 06 – MICROWAVE DOOR

SM958PSKW1 06 – MICROWAVE DOOR

Written by

in

SM958PSKW1 06 – MICROWAVE DOOR

Products

Position	Product
1	Switch, Interlock
2	Switch, Interlock
3	Switch, Top Interlock
4	Hinge, Door (2)
5	Lever, Microswitch (Lower)
6	Screw, Interlock Switch
7	“E“ Ring (4)
8	Handle, Latch
10	Pin, Microswitch Lever (2)
11	Lever, Microswitch (Upper)
14	Link, Door
15	Plate, Microswitch Lever
16	Door, Microwave Complete
18	Bearing, Door
19	Bushing, Guide
20	E-Ring (2)
