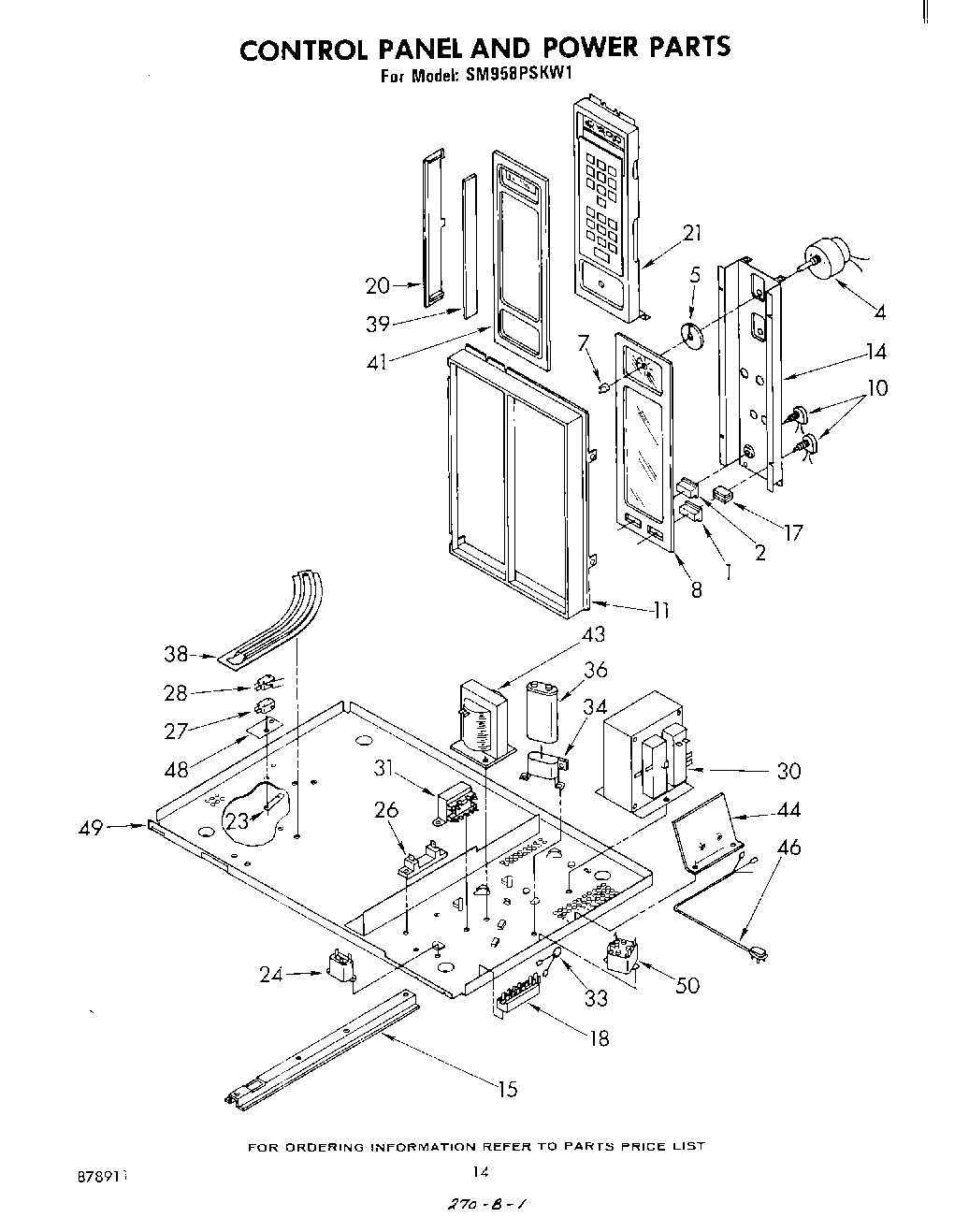

SM958PSKW1 09 – CONTROL PANEL AND POWER

Products

Position	Product
1	Button, Push-Surface
2	Panel, Backguard (Almond)
4	Clock, Automatic
5	Disc, Indicator
7	Knob, Clock (2)
8	Panel, Control
10	Switch, Light (2)
11	Trim, Control Panel
14	Bracket, Control Panel
15	Support, Microwave (2)
17	Extension, Pushbutton (2)
18	Block, Commoning
20	Insert, Control Panel
21	Microprocessor
23	Plate, Switch Nut (3)
24	Relay, Lockout
26	Rectifier, High Voltage
27	Switch, Interlock
28	Switch, Interlock
30	Transformer, Power
31	Transformer, Microprocessor
33	Varistor
34	Bracket, Capacitor
36	Capacitor, High Voltage
38	Guide, Door Link
39	Gasket, Leakage (Right)
41	Panel, Control
43	Transformer, Filament
44	Triac
46	Cord, Extension
48	Insulator, Switch
49	Base, Oven
50	Relay, Power
