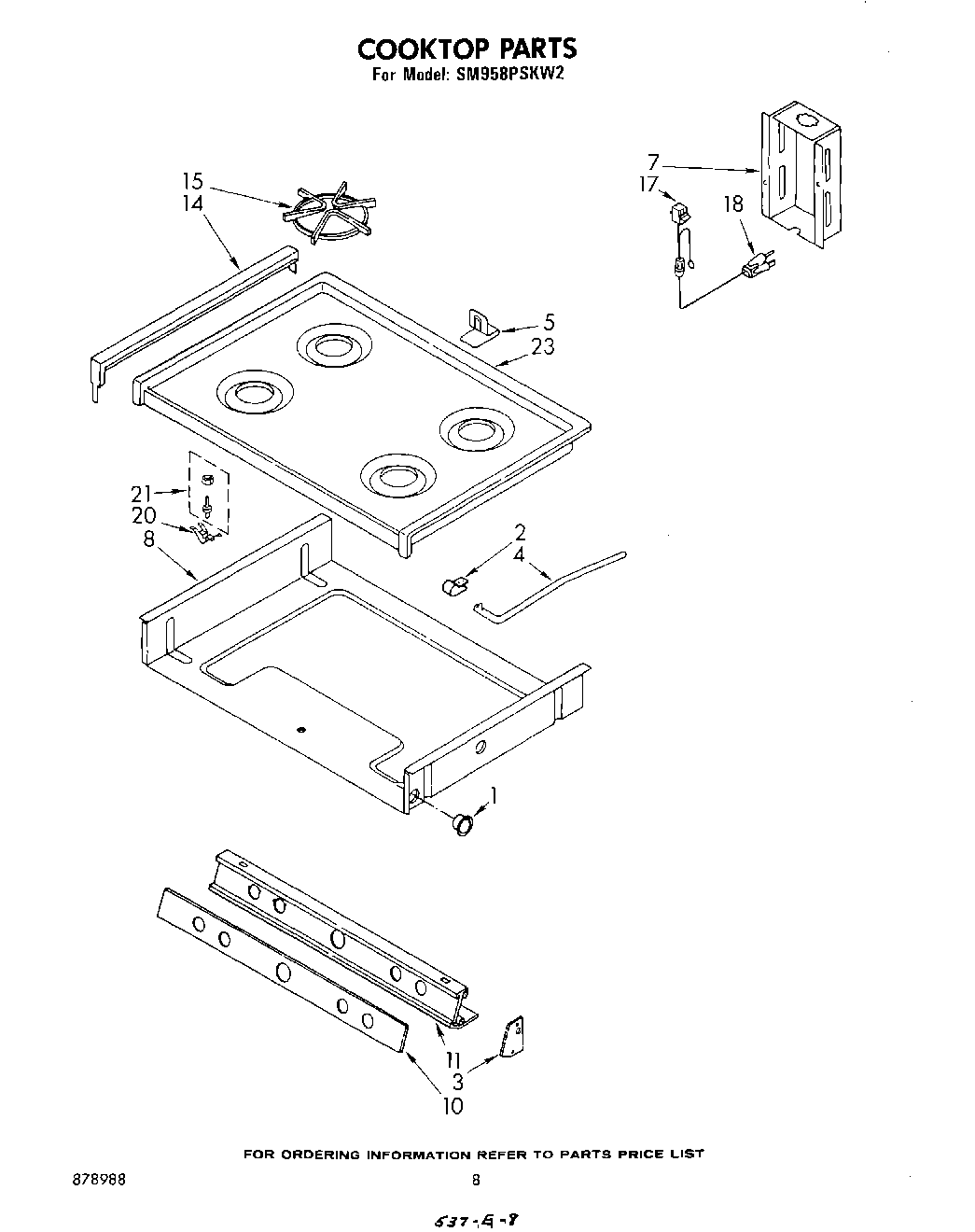

SM958PSKW2 05 – COOK TOP

Products

PositionProduct
1Bushing, Snap
2Clamp, Top Stop
3End, Manifold Panel (Left Hand)
3End, Manifold Panel (Right Hand)
4Stop, Cook Top
5Spacer, Main Top
7Cover, Wire
8Bottom, Burner Box
10Inlay, Manifold Panel
11Panel, Manifold
14Trim, Main Top (Left Side)
14Trim, Main Top (Right Side)
15Grate, Burner (4)
17Block, Disconnect Socket
18Cord, Extension
20Catch, Main Top (2)
21Strike, Main Top (2)
23Top, Main (White)
23Top, Main (Almond)
23Top, Main (Toast)
23Top, Main (Platinum)
23Top, Main (Brushed Chrome)
23Top, Main (Harvest Gold)
23Top, Main (Coffee)
