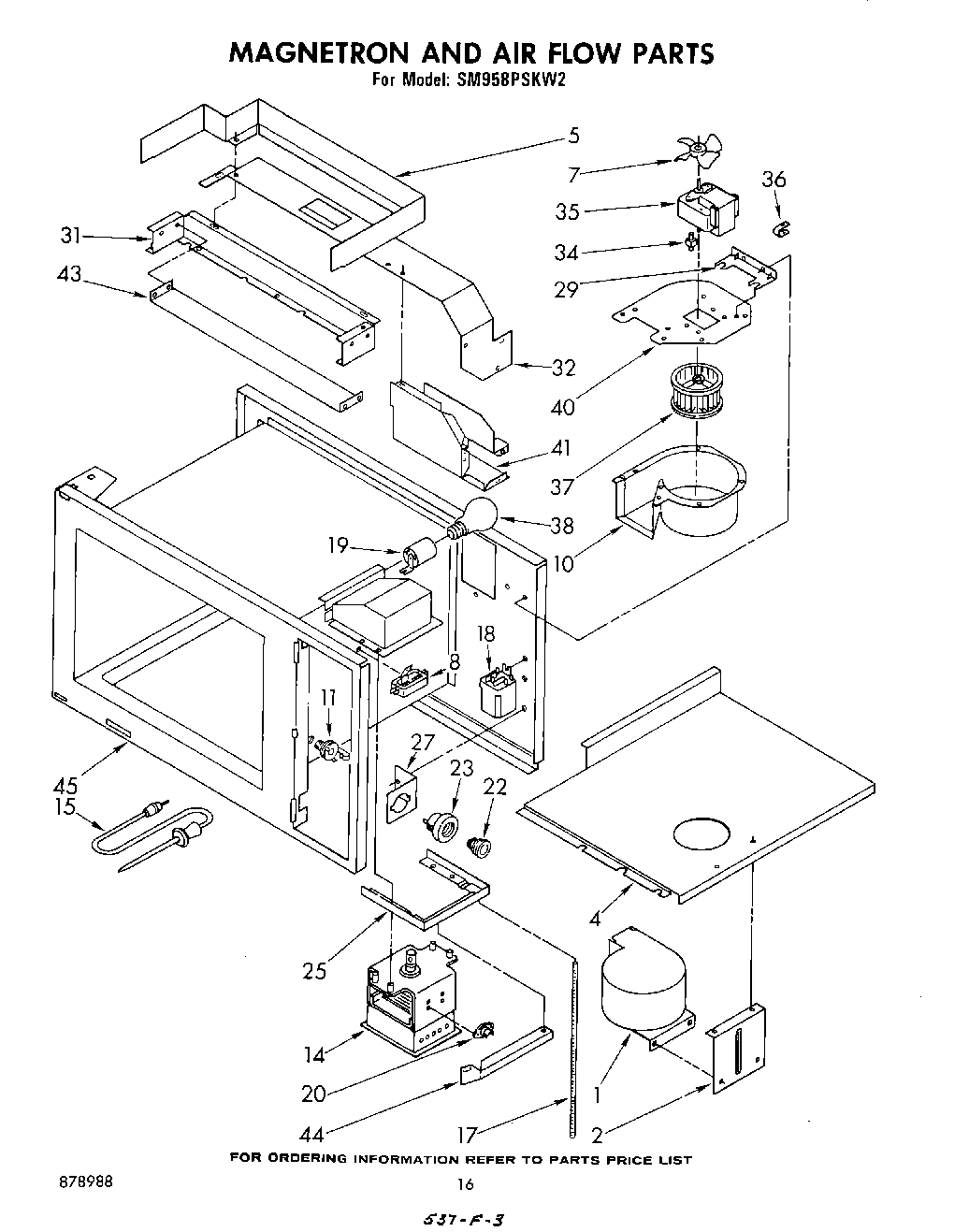

SM958PSKW2 10 – MAGNETRON AND AIRFLOWadmin2025-04-26T11:24:17+00:00SM958PSKW2 10 – MAGNETRON AND AIRFLOW
Products
| Position | Product |
|---|
| 1 | Blower, Auxillary |
| 2 | Bracket, Fan Mounting |
| 4 | Duct, Auxillary |
| 5 | Extension, Duct |
| 7 | Blade, Transmotor |
| 8 | Connector, Probe |
| 10 | Housing, Blower |
| 11 | Jack, Turntable (Not Serviceable) |
| 14 | Magnetron |
| 15 | Probe, Temperature |
| 17 | Rod, Waveguide Support |
| 18 | Relay, Auxillary Blower |
| 19 | Socket, Light |
| 20 | Thermostat |
| 22 | Fuse, 20 Amp |
| 23 | Holder, Fuse (20 Amp$FF3 only$FF1) |
| 25 | Support, Waveguide Bracket |
| 27 | Support, Fuse Holder |
| 29 | Bracket, Blower |
| 31 | Baffle, Exhaust |
| 32 | Duct, Magnetron Exhaust Top |
| 34 | Bushing, Blower |
| 35 | Transmotor, Blower |
| 36 | Strap, Ground |
| 37 | Wheel, Blower |
| 38 | RANGE ONLY 40W 120V APPL BULB |
| 40 | Cover, Blower Housing |
| 41 | Duct, Magnetron Exhaust Bottom |
| 43 | Bracket, Baffle |
| 44 | Brace, Front Frame |
