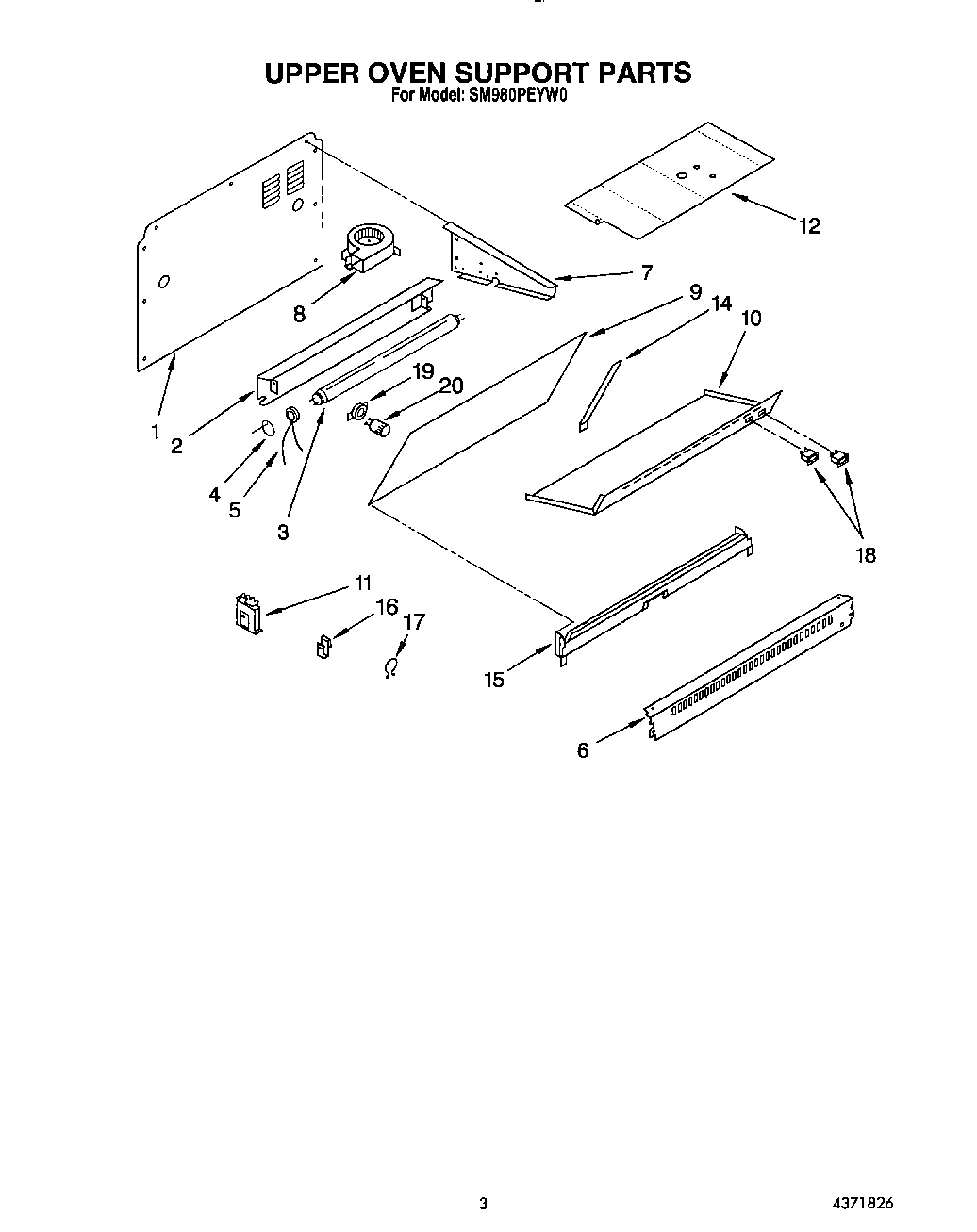

SM980PEYN0 03 – UPPER OVEN SUPPORT

Products

Position	Product
1	Back, Middle Wall
2	Reflector
3	WP95292 Whirlpool Fluorescent Light Bulb
4	Insulator (2)
5	Receptacle
6	Vent, Trim
7	Support, Oven (Left Hand)
7	Support, Oven (Right Hand)
8	Blower, Assy
9	Glass, Splasher
10	Splasher, Panel (upper)
11	Ballast
12	Shield, Blower
14	Trim, Side (Right Hand)
14	Trim, Side (Left Hand)
15	Trim, Upper Oven Spl. Filler
16	Fastener, Cable
17	Fastener, Wire
18	WP4314961 Whirlpool Lite Switch
19	Starter, Receptacle
20	Button, Glide
